HRA21 SDA (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) RECOIL STARTER Parts Diagram

21" Walk-Behind Mower, Made in Japan

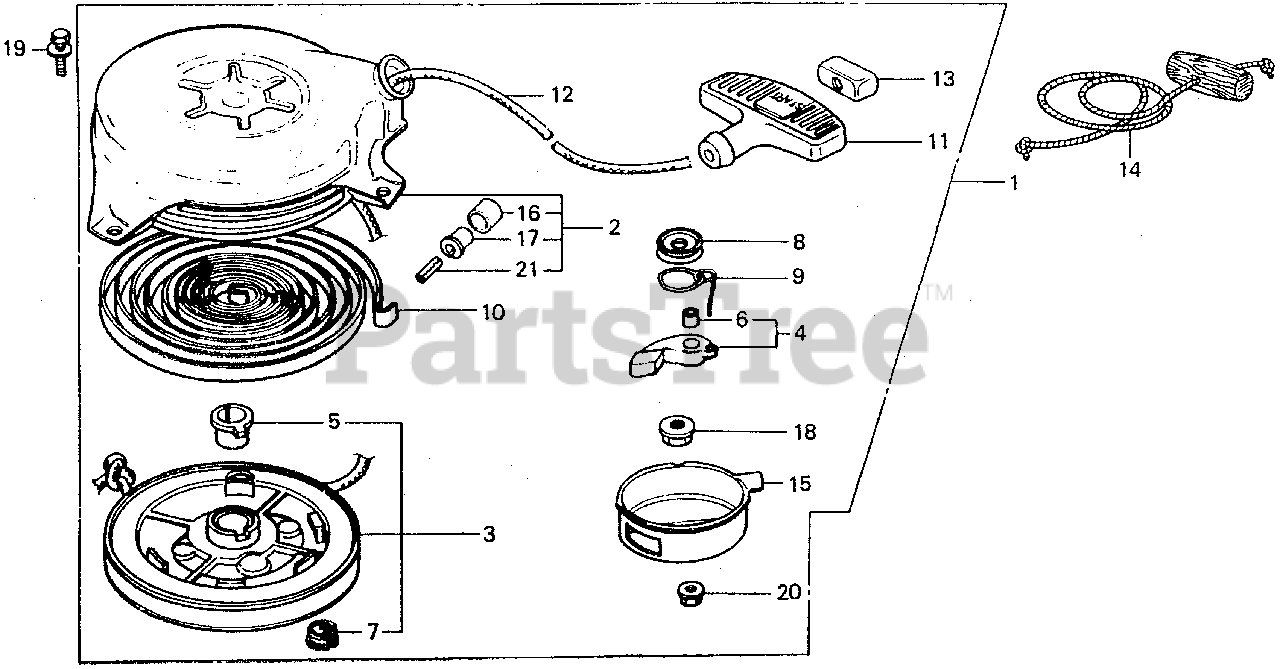

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-888-040H

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R8* (Honda Code 0957050). (BRIGHT RED)

$

$

Not available

2

Honda 28410-888-030H

SEE PART DETAILS - PRI; CASE, STARTER *R8* (Honda Code 1024405). (BRIGHT RED)

$

$

Not available

3

Honda 28420-889-010

SEE PART DETAILS - PRI; REEL, STARTER (Honda Code 1002179).

$38.99

$

Usually ships in 3-6 days

0

4

Honda 28422-883-020

SEE PART DETAILS - PRI; RATCHET (Honda Code 1002187).

$8.99

$

Usually ships in 3-6 days

0

5

Honda 28424-883-000

SEE PART DETAILS - PRI; BOSS, REEL (Honda Code 1000124).

$6.49

$

Usually ships in 3-6 days

0

6

Honda 28425-889-300

BUSH, RATCHET (Honda Code 0755801).

$5.49

$

Usually ships in 3-6 days

0

7

Honda 28427-883-300

BUSH, REEL STARTER (Honda Code 0743260).

$

$

Not available

8

Honda 28432-883-000

PLATE, FRICTION (Honda Code 1002195).

$5.99

$

Usually ships in 3-6 days

0

9

Honda 28441-883-020

SEE PART DETAILS - PRI; SPRING, FRICTION (Honda Code 1002203).

$10.99

$

In Stock, only 1 left!

0

10

Honda 28442-883-000

SPRING, RETURN (Honda Code 0636670).

$22.99

$

Usually ships in 3-6 days

0

11

Honda 28461-883-000

GRIP, STARTER (Honda Code 0636688).

$11.99

$

In Stock, only 1 left!

0

12

Honda 28462-888-000

SEE PART DETAILS - SUP; ROPE, STARTER (#5X55") (Honda Code 0671404).
(Superseded to 28462-ZH8-003)

$12.99

$

In Stock, only 3 left!

0

13

Honda 28463-883-000

SUPPORT, GRIP (Honda Code 0636704).

$4.49

$

Usually ships in 3-6 days

0

14

Honda 28470-816-000

ROPE, STARTER (#5X55") Use from Engine SN 1453515.

Note: (Optional).

$10.99

$

In Stock, only 1 left!

0

15

Honda 28474-883-010

SEE PART DETAILS - SUP; COVER, STARTER REEL Use up to Engine SN 1533900.
(Superseded to 28474-YA0-N40)

$12.99

$

Usually ships in 3-6 days

0

16

Honda 28476-888-300

ROLLER, GUIDE (Honda Code 0747832).

$

$

Currently unavailable

17

Honda 28477-888-300

BUSH, ROLLER (Honda Code 0747840).

$

$

Not available

18

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

19

Honda 93401-06010-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X10) (Honda Code 2488443).

$2.49

$

In Stock, Qty 5

0

19

Honda 93481-06010-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X10) (Honda Code 0636944).
(Superseded to 93401-06010-08)

$2.49

$

In Stock, Qty 5

0

20

Honda 94050-05000

NUT, FLANGE (5MM) (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0

21

Honda 94305-30182

PIN, SPRING (3X18) (Honda Code 0747857).

$1.99

$

Usually ships in 3-6 days

0
