HRA21 SDA (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) FUEL TANK@FUEL VALVE Parts Diagram

21" Walk-Behind Mower, Made in Japan

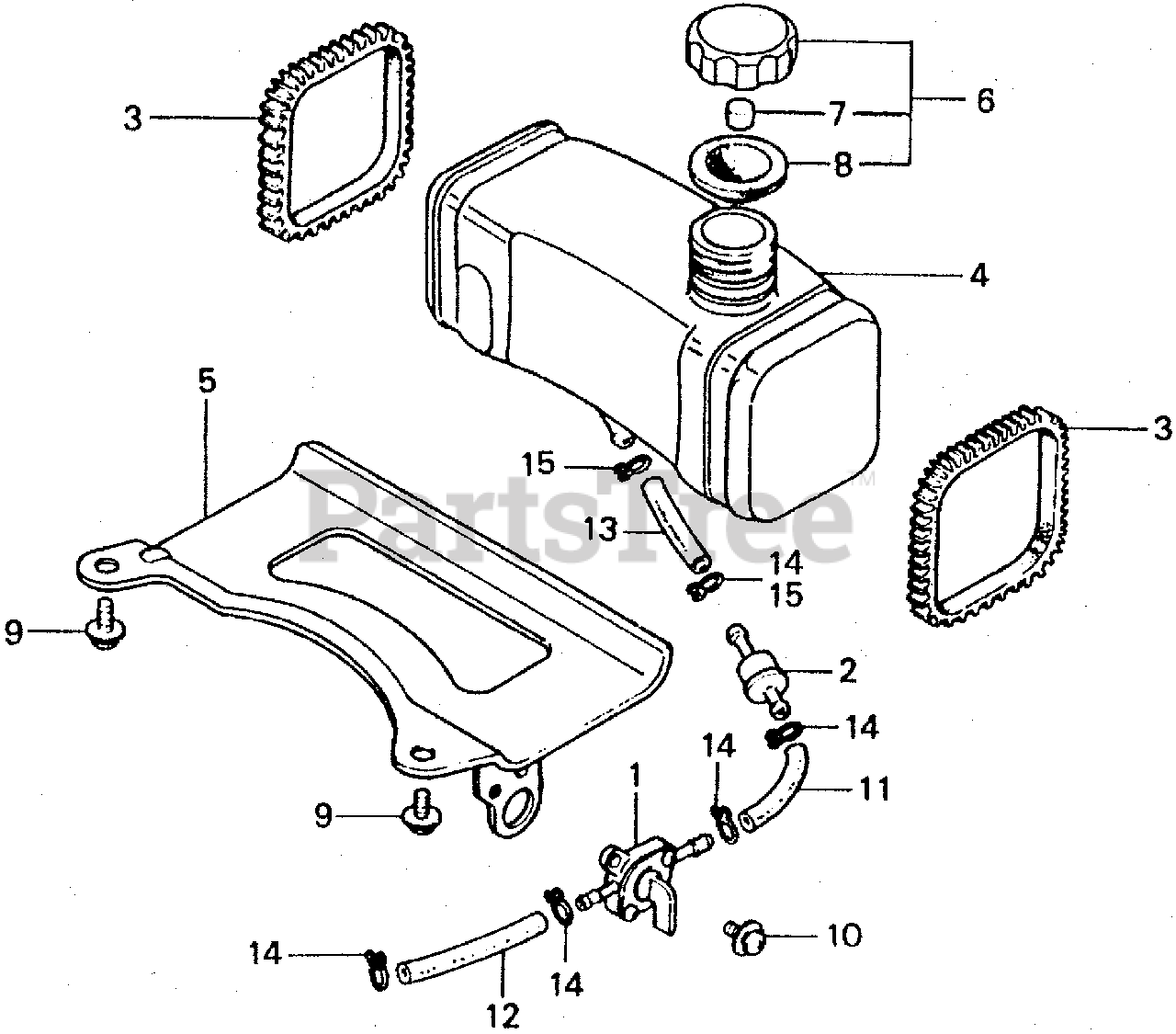

FUEL TANK@FUEL VALVE Parts Diagram

  • Title

1

Honda 16950-888-015

PETCOCK ASSY.

$

$

Not available

2

Honda 16910-GB2-005

FILTER, FUEL (Honda Code 1420629).

Note: Use from Engine SN 3176995.

$16.99

$

In Stock, only 2 left!

0

2

Honda 16952-952-003

SEE PART DETAILS - PRI; FILTER, FUEL (Honda Code 0743468).

Note: Use up to Engine SN 3176994.

$16.99

$

Usually ships in 3-6 days

0

3

Honda 17509-952-000

CUSHION, FUEL TANK (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 17510-952-010

TANK, FUEL (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 17530-952-000

PLATE, TANK SETTING

$

$

Not available

6

Honda 17620-888-010

CAP ASSY., FUEL TANK
(Superseded to 17620-888-020)

Note: Use up to Engine SN 3165689.

$

$

Not available

6

Honda 17620-888-020

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK Use from Engine SN 2010636.

Note: Use from Engine SN 3165690.

$

$

Not available

7

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

8

Honda 17624-355-010

GASKET, FUEL CAP

Note: Use up to Engine SN 3165689.

$

$

Currently unavailable

8

Honda 17624-896-750

SEE PART DETAILS - PRI; GASKET, FUEL CAP Use from Engine SN 2007016.

Note: Use from Engine SN 3165690.

$

$

Not available

9

Honda 93891-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10) (Honda Code 0671636).

$1.49

$

In Stock, Qty 5

0

10

Honda 93891-05012-08

SCREW-WASHER (5X12) (Honda Code 0485938).

$1.49

$

In Stock, only 2 left!

0

11

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$54.99

$

In Stock, only 3 left!

0

12

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$54.99

$

In Stock, only 3 left!

0

13

Honda 17512-894-000

TUBE, FUEL (Honda Code 1437151).

Note: Use from Engine SN 3176995.

$

$

Currently unavailable

13

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (Honda Code 5338587). (5.5X150)

Note: Use up to Engine SN 3176994.

$70.99

$

In Stock, only 1 left!

0

14

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use up to Engine SN 3176994.

$2.49

$

In Stock, only 4 left!

0

14

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use from Engine SN 3176995.

$2.49

$

In Stock, only 4 left!

0

15

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

Note: Use up to Engine SN 3176994.

$2.49

$

Usually ships in 3-6 days

0

15

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

Note: Use from Engine SN 3176995.

$2.49

$

Usually ships in 3-6 days

0
