HRA21 SDA (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) DRIVE GEAR@BELT GUIDE Parts Diagram

21" Walk-Behind Mower, Made in Japan

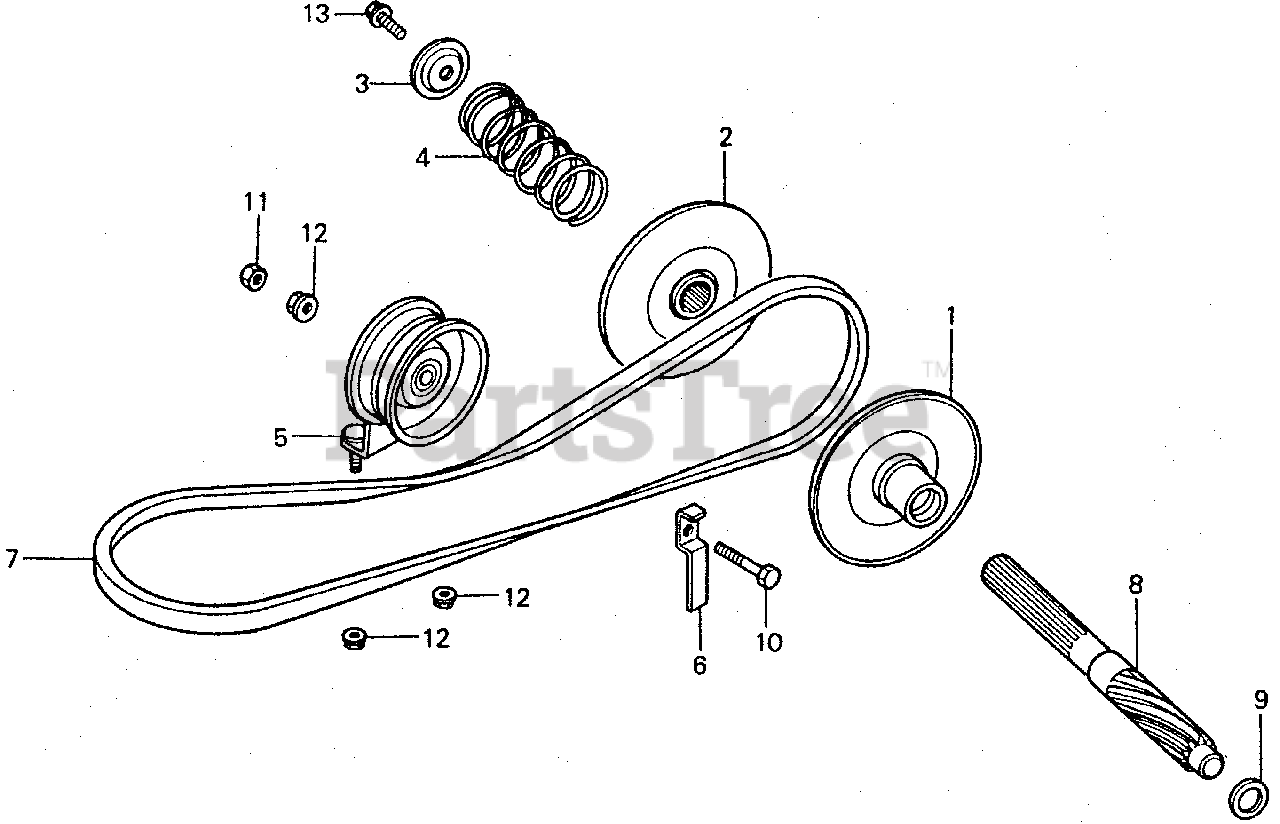

DRIVE GEAR@BELT GUIDE Parts Diagram

  • Title

1

Honda 22110-963-000

FACE, DRIVEN

$

$

Not available

2

Honda 22120-963-000

FACE, MOVABLE DRIVEN

$

$

Not available

3

Honda 22124-952-770

SEAT, SPRING (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 22125-963-000

SPRING, DRIVEN FACE (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 22520-963-000

ROLLER, GUIDE

$

$

Not available

6

Honda 22525-963-000

GUIDE, BELT (NOT AVAILABLE)

$10.99

$

Usually ships in 3-6 days

0

7

Honda 23161-963-003

V-BELT, DRIVE

$

$

Not available

8

Honda 23411-963-000

GEAR, DRIVE

$

$

Not available

9

Honda 90443-844-000

WASHER (8MM) (NOT AVAILABLE)

$0.99

$

Usually ships in 3-6 days

0

10

Honda 92101-06028-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X28)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM) (Honda Code 0156067).
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

11

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 2043255).

$1.99

$

In Stock, Qty 20+

0

12

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

13

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 19

0
