HRA21 SDA (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) CUTTER HOUSING@BELT COVER@DISCHARGE GUARD Parts Diagram

21" Walk-Behind Mower, Made in Japan

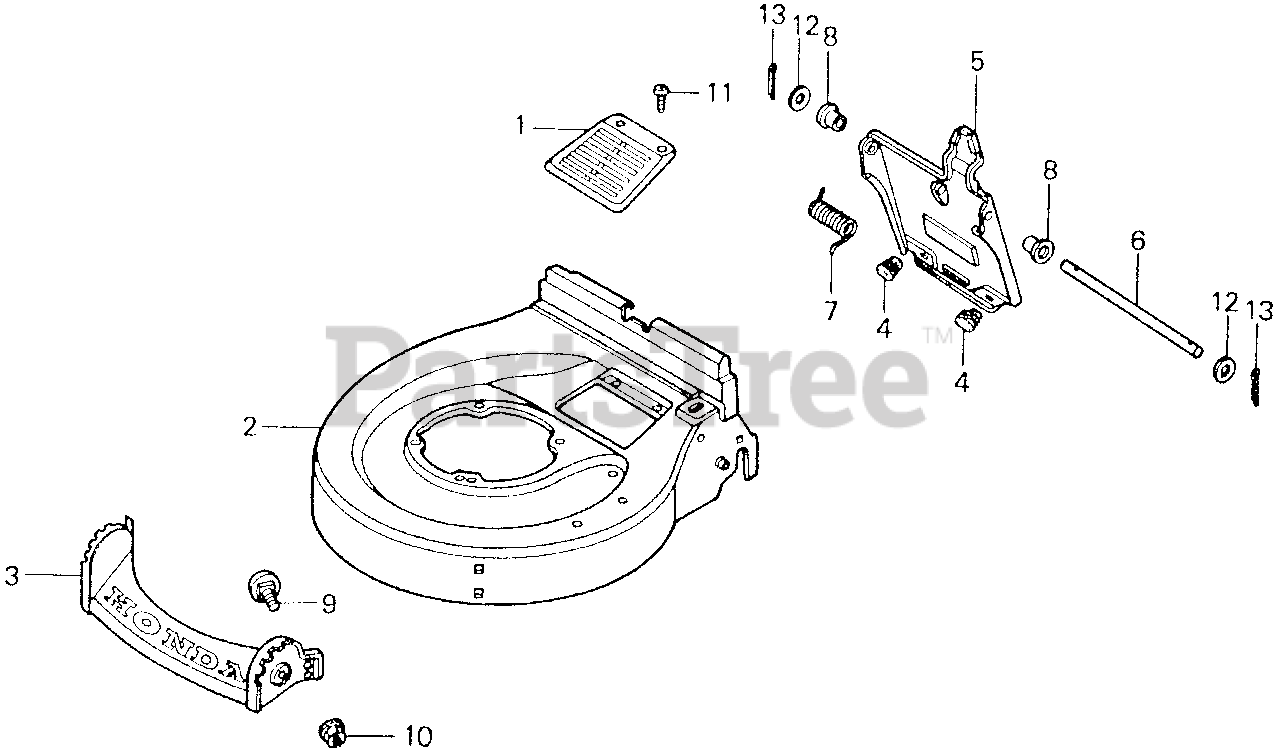

CUTTER HOUSING@BELT COVER@DISCHARGE GUARD Parts Diagram

  • Title
1

Honda 63611-963-000

COVER, BELT

$

$

Not available

2

Honda 76111-963-000

HOUSING, CUTTER

$

$

Not available

3

Honda 76121-963-000

GUARD, FR.

$

$

Not available

4

Honda 76122-952-000

STOPPER, DISCHARGE GUARD Use up to Frame SN 1186736.

$4.99

$

In Stock, only 2 left!

0

5

Honda 76311-963-000

GUARD, DISCHARGE

$

$

Not available

6

Honda 76312-963-000

SHAFT, DISCHARGE GUARD

$

$

Not available

7

Honda 76314-963-000

SPRING, GUARD RETURN (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 76317-959-000

BUSH, DISCHARGE GUARD

$4.99

$

Usually ships in 3-6 days

0

9

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$4.49

$

In Stock, only 2 left!

0

10

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 20+

0

11

Honda 93901-25080

SCREW, TAPPING (5X8)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM) (Honda Code 0059097).

$1.49

$

In Stock, Qty 20+

0

13

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0
