HRA21 SDA (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) CAMSHAFT Parts Diagram
21" Walk-Behind Mower, Made in Japan

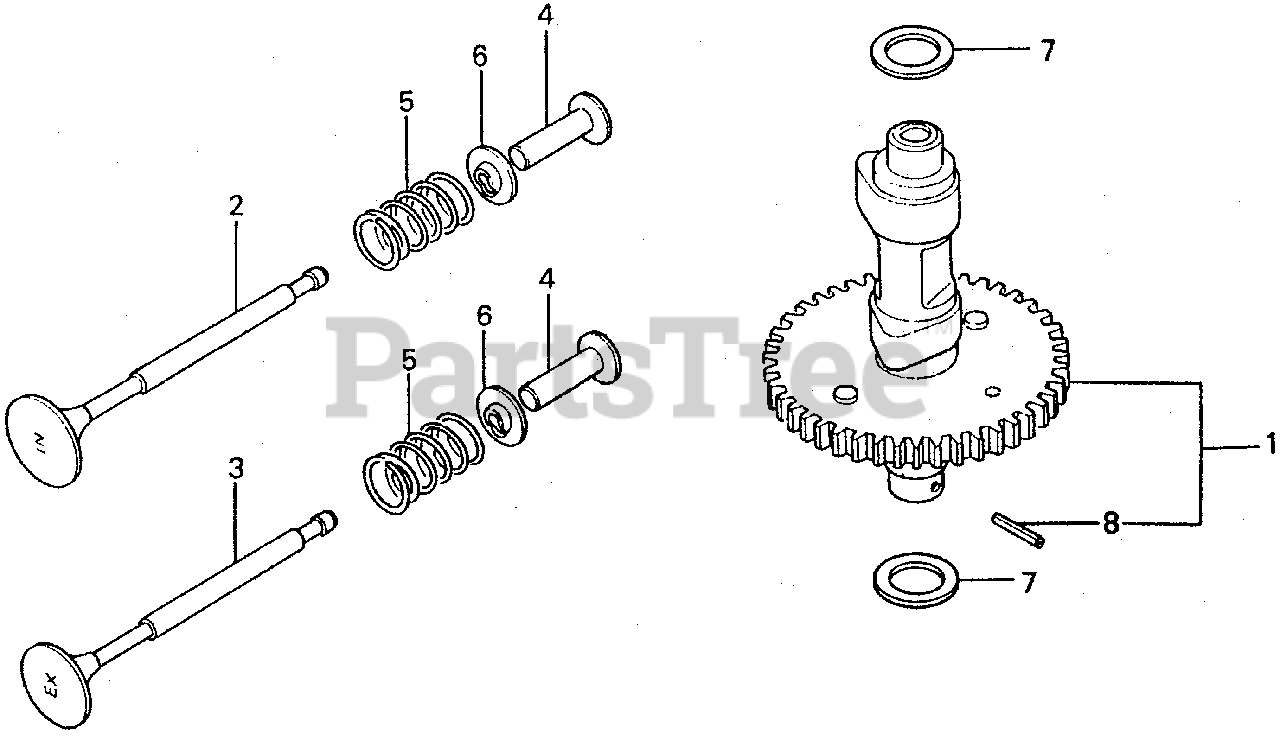

CAMSHAFT Parts Diagram
Honda 14110-888-020
SEE PART DETAILS - PRI; CAMSHAFT ASSY. (Honda Code 1038025).
$
$
Currently unavailable
Honda 14711-887-000
VALVE, IN. (Honda Code 0635177).
$18.99
$
Usually ships in 3-6 days
Honda 14721-887-000
VALVE, EX. (Honda Code 0635185).
$29.99
$
Usually ships in 3-6 days
Honda 14738-888-010
SEE PART DETAILS - PRI; LIFTER, VALVE (31.33) (Honda Code 0707414).
Note: (Optional).
$14.99
$
Usually ships in 3-6 days
Honda 14744-888-010
SEE PART DETAILS - PRI; LIFTER, VALVE (31.51) (Honda Code 0697920).
Note: (Optional).
$14.99
$
Usually ships in 3-6 days
Honda 14749-888-000
SEE PART DETAILS - PRI; LIFTER, VALVE (31.66) (Honda Code 0671826).
Note: (Optional).
$
$
Not available
Honda 14751-883-000
SPRING, VALVE (Honda Code 0636217).
$5.99
$
Usually ships in 3-6 days
Honda 14771-883-305
SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (Honda Code 1196468).
$13.99
$
Usually ships in 3-6 days
Honda 90452-883-000
WASHER, THRUST (18MM) (Honda Code 0636928).
$3.49
$
Usually ships in 3-6 days
Honda 94305-25162
PIN, SPRING (2.5X16) (Honda Code 0671644).
$1.99
$
Usually ships in 3-6 days
