HR216 SXA# (MACR) - Honda 21" Walk-Behind Mower, Made in USA (SN: MACR-6000001 - MACR-9999999) CUTTER HOUSING Parts Diagram

21" Walk-Behind Mower, Made in USA

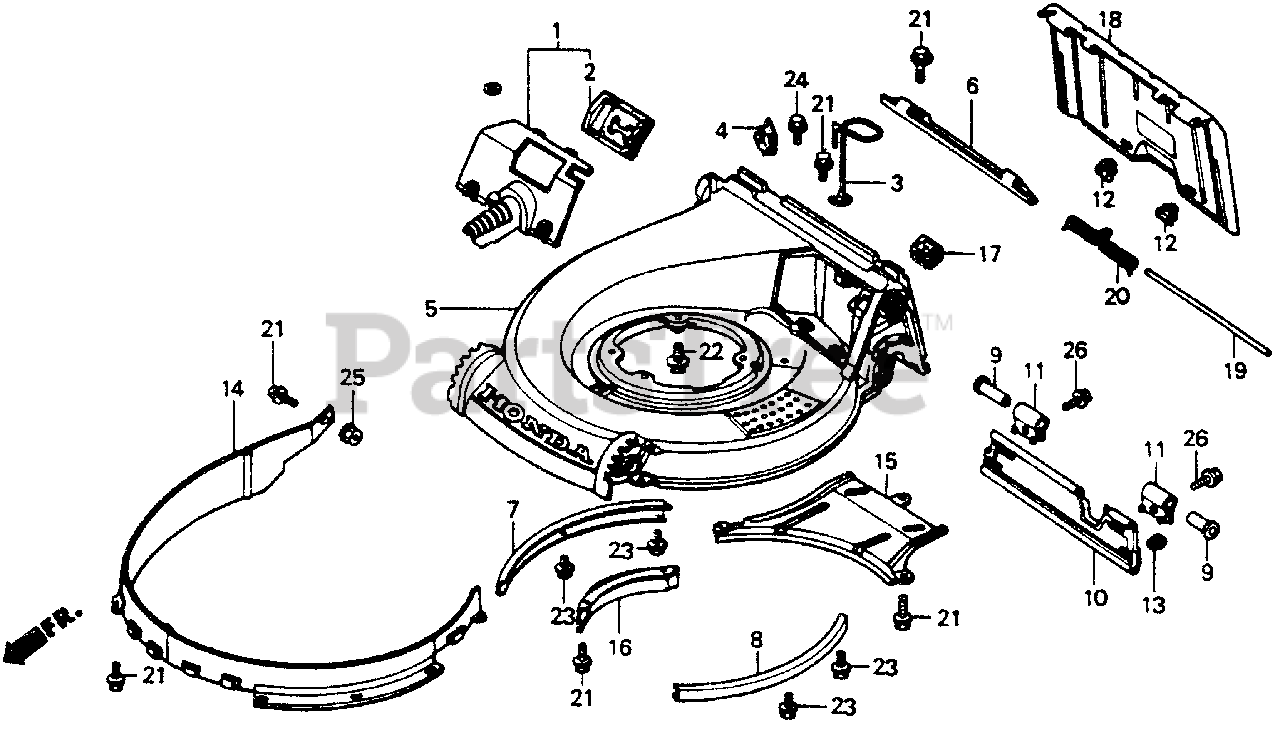

CUTTER HOUSING Parts Diagram

  • Title
1

Honda 54241-VB3-801ZA

COVER, DRIVESHAFT *NH192M* (GENTLY SILVER METALLIC) (NOT AVAILABLE)

$

$

Not available

2

Honda 54243-VB3-800

GROMMET, COVER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 54515-VA3-000

GUIDE, CABLE

$

$

Not available

4

Honda 75136-VA5-000

GROMMET D, CABLE

$

$

Not available

5

Honda 761A1-VB3-800ZA

SEE PART DETAILS - SUP; HOUSING, CUTTER *NH192M* (GENTLY SILVER METALLIC)

$

$

Not available

6

Honda 76113-VA5-000

HINGE, DISCHARGE GUARD

$

$

Not available

7

Honda 76115-960-730

GUARD, R. SAFETY (NOT AVAILABLE)

$

$

Not available

8

Honda 76116-960-730

GUARD, L. SAFETY (NOT AVAILABLE)

$

$

Not available

9

Honda 76117-VA3-800

BUSH, SAFETY SHIELD

$

$

Not available

10

Honda 76118-VA3-800

SHIELD, SAFETY

$

$

Not available

11

Honda 76119-VA3-000

HANGER, SAFETY SHIELD

$7.99

$

In Stock, only 2 left!

0

12

Honda 76122-VA4-000

STOPPER, DISCHARGE GUARD

$4.49

$

In Stock, only 2 left!

0

13

Honda 76122-952-000

STOPPER, DISCHARGE GUARD Use up to Frame SN 1186736.

$4.99

$

In Stock, only 2 left!

0

14

Honda 76145-VA3-J00

LINER (INNER)

$

$

Currently unavailable

15

Honda 76151-VA3-010

GUIDE, SCROLL

$25.99

$

Usually ships in 3-6 days

0

16

Honda 76152-VA3-000

LID, ROTO-STOP COVER (NOT AVAILABLE)

$

$

Not available

17

Honda 76231-VA3-000

GROMMET C, CABLE

$7.49

$

Usually ships in 3-6 days

0

18

Honda 76311-VA3-000

GUARD, DISCHARGE

$87.99

$

Usually ships in 3-6 days

0

19

Honda 76312-VB5-800

SHAFT, HINGE (NOT AVAILABLE)

$

$

Not available

20

Honda 76314-VA3-010

SPRING, GUARD RETURN

$

$

Not available

21

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

22

Honda 90102-VA5-000

BOLT, ENGINE SETTING

$4.99

$

Usually ships in 3-6 days

0

23

Honda 90107-VA5-640

BOLT, FLANGE (6X10) (Honda Code 1500958).

$2.49

$

In Stock, only 2 left!

0

24

Honda 90125-VA4-800

BOLT, FLANGE (6X25)

$3.49

$

In Stock, only 1 left!

0

25

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

26

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0
