HR216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in Japan (SN: MACR-1000001 - MACR-3000000) REAR WHEEL Parts Diagram

21" Walk-Behind Mower, Made in Japan

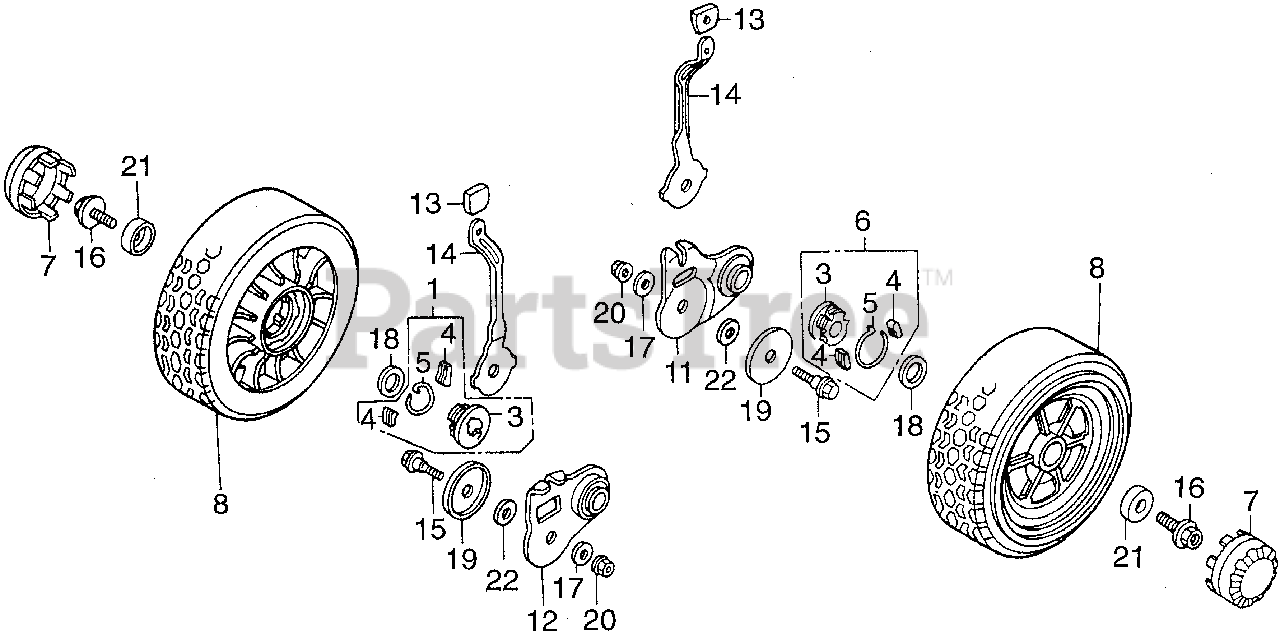

REAR WHEEL Parts Diagram

  • Title

1

Honda 23510-VB5-801

SEE PART DETAILS - SUP; HOLDER, R. RATCHET
(Superseded to 23510-VB5-803)

Note: Use from Frame SN 1014801 to 1020780.

$29.99

$

In Stock, only 1 left!

0

1

Honda 23510-VB5-803

SEE PART DETAILS - PRI; HOLDER, R. RATCHET

Note: Use from Frame SN 1014801.

$29.99

$

In Stock, only 1 left!

0

3

Honda 23512-VA4-003

HOLDER, RATCHET

Note: Use up to Frame SN 1014800.

$14.99

$

Usually ships in 3-6 days

0

4

Honda 23513-952-770

RATCHET

Note: Use up to Frame SN 1014800.

$7.99

$

Usually ships in 3-6 days

0

5

Honda 23514-963-000

SPRING, RATCHET RETURN

Note: Use up to Frame SN 1014800.

$4.49

$

Usually ships in 3-6 days

0

6

Honda 23520-VB5-801

SEE PART DETAILS - SUP; HOLDER, L. RATCHET
(Superseded to 23520-VB5-803)

Note: Use from Frame SN 1014801 to 1020780.

$29.99

$

In Stock, Qty 11

0

6

Honda 23520-VB5-803

SEE PART DETAILS - PRI; HOLDER, L. RATCHET

Note: Use from Frame SN 1014801.

$29.99

$

In Stock, Qty 11

0

7

Honda 42755-VA4-611

CAP, WHEEL

$10.99

$

Usually ships in 3-6 days

0

8

Honda 42810-VA3-J00

WHEEL, PROPELLED (8") (NH31)

$30.99

$

Usually ships in 3-6 days

0

10

Honda 42751-VA3-J00

SEE PART DETAILS - PRI; TIRE (8 INCH)

$29.99

$

Usually ships in 3-6 days

0

11

Honda 42930-VB3-800

ARM C, WHEEL ADJUSTER (NOT AVAILABLE)

$

$

Not available

12

Honda 42940-VB3-800

ARM D, WHEEL ADJUSTER (NOT AVAILABLE)

$34.99

$

Usually ships in 3-6 days

0

13

Honda 42952-952-000

GRIP, ADJUSTER

$4.99

$

In Stock, only 2 left!

0

14

Honda 42961-VB3-800

PLATE, RR. ADJUSTING (NOT AVAILABLE)

$

$

Not available

15

Honda 90105-VA5-000

BOLT, ADJUSTING CENTER

$5.99

$

In Stock, only 3 left!

0

16

Honda 90110-VA4-000

SEE PART DETAILS - PRI; BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

17

Honda 90524-030-000

SEE PART DETAILS - PRI; WASHER A, HANDLE HOLDER SETTING

$1.99

$

In Stock, only 3 left!

0

18

Honda 90551-VA4-800

WASHER (16MM)

$3.49

$

In Stock, Qty 5

0

19

Honda 90555-VA4-800

WASHER, WHEEL

Note: Use up to Frame SN 1042920.

$6.49

$

In Stock, only 3 left!

0

20

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

21

Honda 50188-438-670

WASHER B, PIVOT

Note: Use from Frame SN 1042921.

$

$

Not available

22

Honda 90555-VB3-801

SEAL, RR. WHEEL

Note: Use from Frame SN 1042921.

$16.99

$

In Stock, only 2 left!

0
