HR216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in Japan (SN: MACR-1000001 - MACR-3000000) JOINT Parts Diagram

21" Walk-Behind Mower, Made in Japan

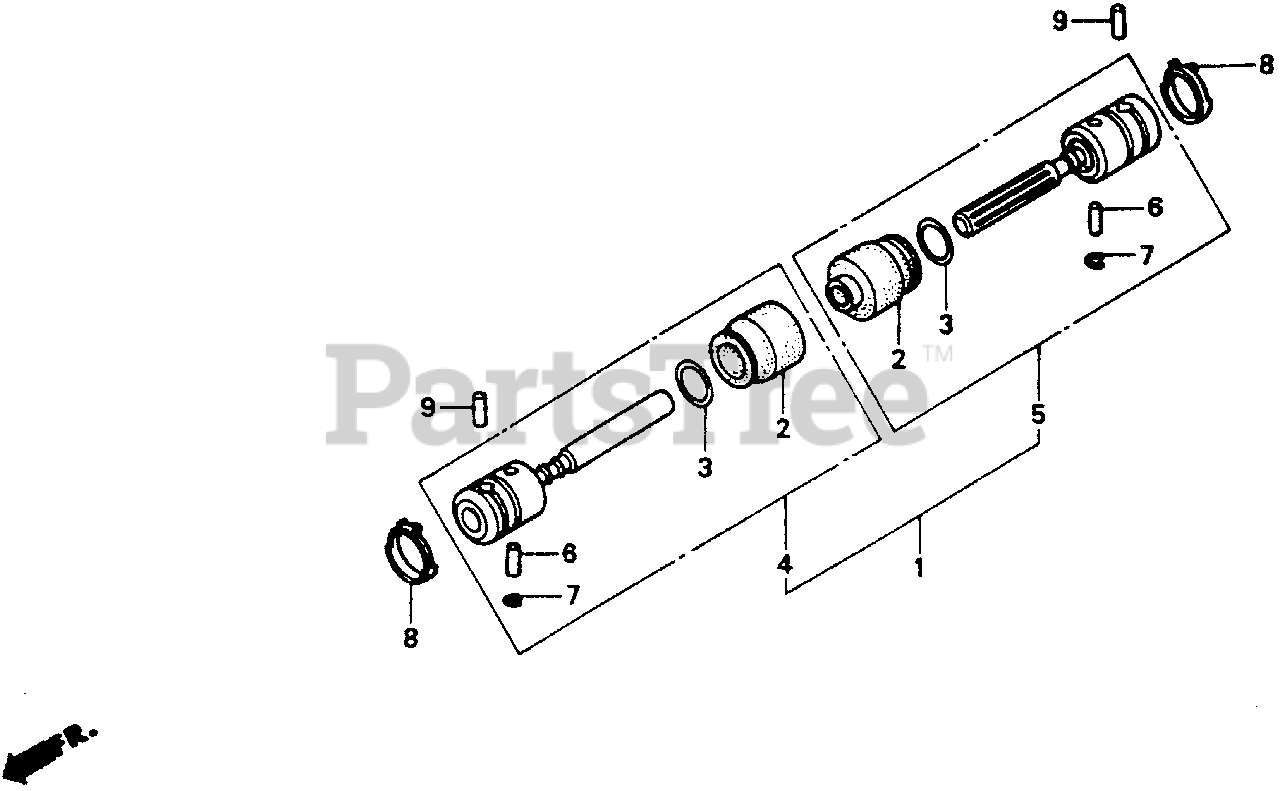

JOINT Parts Diagram

  • Title

1

Honda 22100-VB3-803

SEE PART DETAILS - SUP; JOINT ASSY.
(Superseded to 22100-VB3-806)

$121.99

$

Usually ships in 3-6 days

0

1

Honda 22100-VB3-805

SEE PART DETAILS - PRI; JOINT ASSY.
(Superseded to 22100-VB3-806)

$121.99

$

Usually ships in 3-6 days

0

2

Honda 22123-VA4-801

SEE PART DETAILS - PRI; BOOT, JOINT
(Superseded to 22123-VA4-804)

Note: Use up to Frame SN 1021992.

$5.49

$

Usually ships in 3-6 days

0

2

Honda 22123-VB5-801

BOOT, JOINT
(Superseded to 22123-VK6-004)

Note: Use from Frame SN 1021993.

$4.49

$

Usually ships in 3-6 days

0

3

Honda 22127-VA4-801

RING, SEAL
(Superseded to 22127-VA4-804)

Note: Use up to Frame SN 1021992.

$2.99

$

Usually ships in 3-6 days

0

3

Honda 22127-VB5-801

RING, SEAL
(Superseded to 22127-VK6-004)

Note: Use from Frame SN 1021993.

$1.99

$

In Stock, only 3 left!

0

4

Honda 22150-VB3-801

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (A)
(Superseded to 22150-VB3-806)

Note: Use up to Frame SN 1020235.

$67.99

$

Usually ships in 3-6 days

0

4

Honda 22150-VB3-805

SEE PART DETAILS - PRI; JOINT SUB-ASSY. (A)
(Superseded to 22150-VB3-806)

$67.99

$

Usually ships in 3-6 days

0

5

Honda 22160-VB3-802

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (B)
(Superseded to 22160-VB3-806)

Note: Use up to Frame SN 1021992.

$68.99

$

Usually ships in 3-6 days

0

5

Honda 22160-VB3-803

SEE PART DETAILS - PRI; JOINT SUB-ASSY. (B) (NA USE ALT:22100-VB5-L01)
(Superseded to 22160-VB3-806)

$68.99

$

Usually ships in 3-6 days

0

5

Honda 22160-VB3-805

SEE PART DETAILS - PRI; JOINT SUB-ASSY. (B)

$

$

Not available

6

Honda 22181-VA4-802

SEE PART DETAILS - PRI; PIN, DRIVE

Note: Use up to Frame SN 1020235.

$6.49

$

Usually ships in 3-6 days

0

7

Honda 22191-VA4-801

RING, SNAP

Note: Use up to Frame SN 1020235.

$1.99

$

Usually ships in 3-6 days

0

8

Honda 23435-VA2-701

CLIP, CLUTCH SHAFT

$4.99

$

Usually ships in 3-6 days

0

9

Honda 96220-40178

ROLLER (4X17.8)

$1.49

$

In Stock, only 3 left!

0
