HR216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in Japan (SN: MACR-1000001 - MACR-3000000) HANDLEBAR Parts Diagram

21" Walk-Behind Mower, Made in Japan

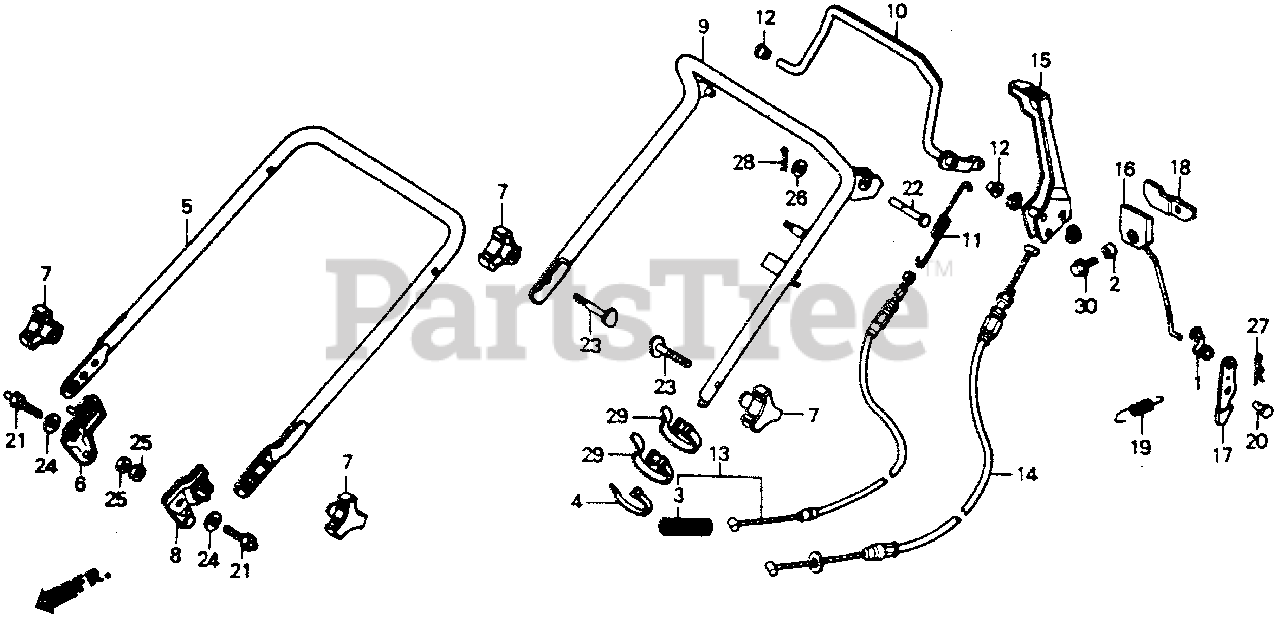

HANDLEBAR Parts Diagram

  • Title

1

Honda 16956-892-000

JOINT, ROD

$7.99

$

In Stock, only 1 left!

0

2

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

3

Honda 23437-VA4-801

SEE PART DETAILS - PRI; SPRING, CLUTCH RETURN
(Superseded to 23437-VB5-A00)

$1.99

$

Usually ships in 3-6 days

0

3

Honda 23437-VB5-A00

SEE PART DETAILS - PRI; SPRING, CLUTCH RETURN

$1.99

$

Usually ships in 3-6 days

0

4

Honda 32901-952-770

TIE, CABLE (NATURAL 2.4X92) Use up to Frame SN 1300359.

$2.99

$

Usually ships in 3-6 days

0

5

Honda 53110-VB3-E40

HANDLE (LOWER)

$125.99

$

Usually ships in 3-6 days

0

6

Honda 53120-VB3-800

STAY, R. HANDLE
(Superseded to 53120-VB3-800ZA)

$

$

Not available

7

Honda 53125-VA4-K10

SEE PART DETAILS - PRI; GRIP, HANDLE JOINT (UPPER)

$7.99

$

Usually ships in 3-6 days

0

8

Honda 53130-VB3-800

STAY, L. HANDLE
(Superseded to 53130-VB3-800ZA)

$

$

Not available

9

Honda 53150-VA4-J00ZC

SEE PART DETAILS - PRI; PIPE, HANDLE (UPPER) *NH105* (MAT BLACK)

$60.99

$

Usually ships in 3-6 days

0

10

Honda 54410-VA4-800

LEVER, CLUTCH (NOT AVAILABLE)

$

$

Not available

11

Honda 54411-VB3-800

SEE PART DETAILS - PRI; SPRING, CLUTCH

$5.49

$

In Stock, only 3 left!

0

12

Honda 54412-952-770

BUSH, CLUTCH LEVER

$4.99

$

In Stock, Qty 20+

0

13

Honda 54510-VB5-800

CABLE, SELF

$24.99

$

In Stock, only 1 left!

0

14

Honda 54530-VB3-802

SEE PART DETAILS - PRI; CABLE, ROTO-STOP

$32.99

$

In Stock, only 1 left!

0

15

Honda 75161-VB3-800

LEVER, ROTO-STOP (NOT AVAILABLE)

$64.99

$

Usually ships in 3-6 days

0

16

Honda 75165-VA4-000

ROD, RATCHET PUSH (NOT AVAILABLE)

$

$

Not available

17

Honda 75166-VA4-000

LEVER, LOCK (NOT AVAILABLE)

$

$

Not available

18

Honda 75167-VA4-800

PLATE, PUSH ROD (NOT AVAILABLE)

$6.99

$

Usually ships in 3-6 days

0

19

Honda 75168-VA4-000

SPRING, RATCHET RETURN

$4.49

$

In Stock, Qty 8

0

20

Honda 77203-425-000

PIN, SEAT HINGE

$5.49

$

Usually ships in 3-6 days

0

21

Honda 90101-VA5-020

SEE PART DETAILS - PRI; BOLT, HANDLE HOOK

$5.99

$

In Stock, only 3 left!

0

22

Honda 90106-VA4-800

PIN, CLUTCH LEVER

$11.99

$

Usually ships in 3-6 days

0

23

Honda 90109-VA4-000

BOLT, HANDLE HOLDER (8X41)
(Superseded to 90113-V10-000)

$8.99

$

In Stock, Qty 19

0

23

Honda 90113-V10-000

BOLT (8X41)

$8.99

$

In Stock, Qty 19

0

24

Honda 90436-VA3-000

WASHER, SPECIAL (22X8.5X2)

$4.49

$

In Stock, only 2 left!

0

25

Honda 90312-SB2-000

NUT, SELF-LOCK (8MM)

Note: Use from Frame SN 1020781.

$8.49

$

In Stock, only 1 left!

0

25

Honda 94001-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338).

Note: Use up to Frame SN 1020780.

$1.99

$

In Stock, Qty 10

0

26

Honda 94101-08000

SEE PART DETAILS - PRI; WASHER, PLAIN (8MM) (Honda Code 0059097).

$1.49

$

In Stock, Qty 20+

0

27

Honda 94251-06000

PIN, LOCK (6MM) (Honda Code 0058487).

$1.49

$

In Stock, Qty 20+

0

28

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

29

Honda 32901-VB5-800

TIE, CABLE

Note: Use from Frame SN 1042921.

$3.49

$

In Stock, only 2 left!

0

29

Honda 95014-62200

BAND B2, CABLE HARNESS

Note: Use up to Frame SN 1042920.

$2.49

$

Usually ships in 3-6 days

0

30

Honda 95701-06010-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 1 left!

0
