HR216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in Japan (SN: MACR-1000001 - MACR-3000000) FRONT WHEEL Parts Diagram

21" Walk-Behind Mower, Made in Japan

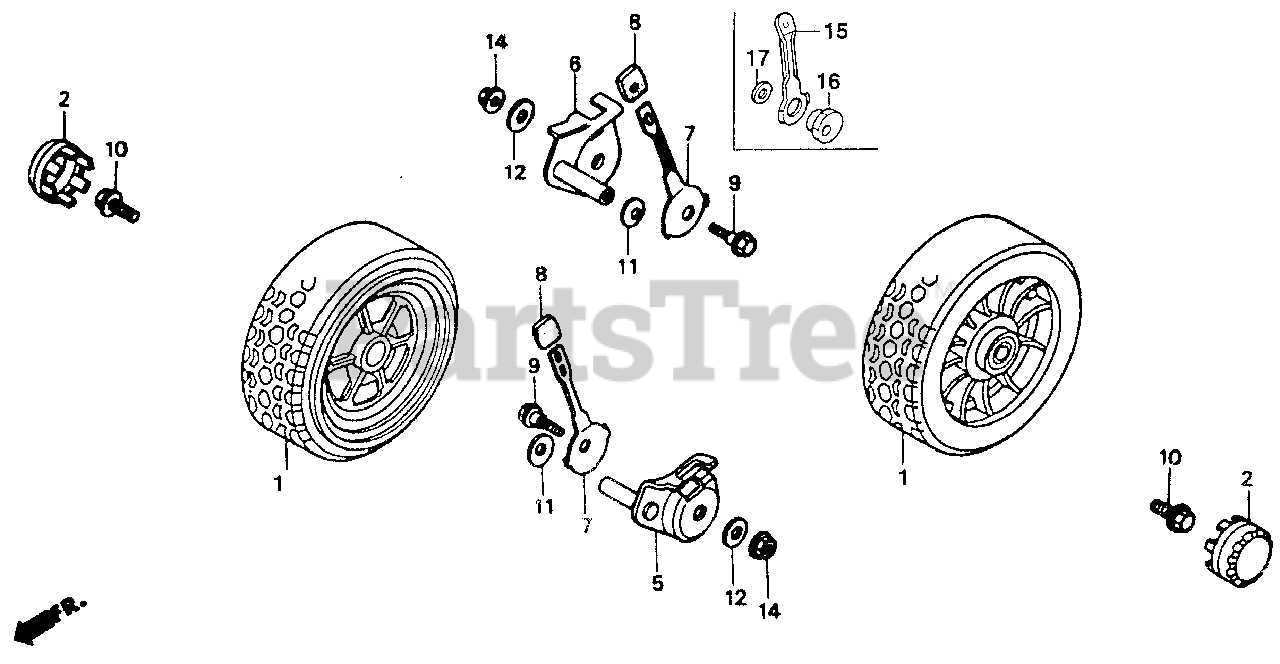

FRONT WHEEL Parts Diagram

  • Title

1

Honda 42710-VA3-J00

SEE PART DETAILS - PRI; WHEEL (8") *NH31* (MCKINLEY WHITE)

$37.99

$

Usually ships in 3-6 days

0

2

Honda 42755-VA4-611

CAP, WHEEL

$10.99

$

Usually ships in 3-6 days

0

4

Honda 42751-VA3-J00

SEE PART DETAILS - PRI; TIRE (8 INCH)

$29.99

$

Usually ships in 3-6 days

0

5

Honda 06420-VA3-000

SEE PART DETAILS - PRI; ADJUSTING KIT, WHEEL

Note: Use from Frame SN 1046488.

$50.99

$

Usually ships in 3-6 days

0

5

Honda 42910-VA2-010

SEE PART DETAILS - PRI; ARM A, WHEEL ADJUSTING (NOT AVAILABLE)

Note: Use up to Frame SN 1046487.

$

$

Not available

6

Honda 42920-VA2-010

SEE PART DETAILS - PRI; ARM B, WHEEL ADJUSTING

$22.99

$

In Stock, only 1 left!

0

7

Honda 42951-VA5-000

PLATE, FR. ADJUSTER

$5.49

$

In Stock, only 1 left!

0

7

Honda 42951-VA5-000

PLATE, FR. ADJUSTER

Note: Use from Frame SN 1046488.

$5.49

$

In Stock, only 1 left!

0

8

Honda 42952-952-000

GRIP, ADJUSTER

$4.99

$

In Stock, only 2 left!

0

9

Honda 90105-VA5-000

BOLT, ADJUSTING CENTER

Note: Use up to Frame SN 1046488.

$5.99

$

In Stock, only 3 left!

0

10

Honda 90110-VA4-000

SEE PART DETAILS - PRI; BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

11

Honda 90455-VA2-000

WASHER, WHEEL

$4.49

$

In Stock, Qty 20+

0

12

Honda 90524-030-000

SEE PART DETAILS - PRI; WASHER A, HANDLE HOLDER SETTING

$1.99

$

In Stock, only 3 left!

0

12

Honda 90524-030-000

SEE PART DETAILS - PRI; WASHER A, HANDLE HOLDER SETTING

Note: Use from Frame SN 1046488.

$1.99

$

In Stock, only 3 left!

0

14

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 13

0

15

Honda 42951-VA3-000

PLATE, FR. ADJUSTING (PART NEWS #006)

Note: Use from Frame SN 1046488.

$9.49

$

In Stock, only 2 left!

0

16

Honda 06420-VA3-000

SEE PART DETAILS - PRI; ADJUSTING KIT, WHEEL

Note: Use from Frame SN 1046488.

$50.99

$

Usually ships in 3-6 days

0

17

Honda 90402-822-000

WASHER, HEAD (8MM) (Honda Code 0122101).

Note: Use from Frame SN 1046488.

$1.99

$

Usually ships in 3-6 days

0
