HR216 SXA (MACR) - Honda 21" Walk-Behind Mower, Made in Japan (SN: MACR-1000001 - MACR-3000000) CONTROL Parts Diagram

21" Walk-Behind Mower, Made in Japan

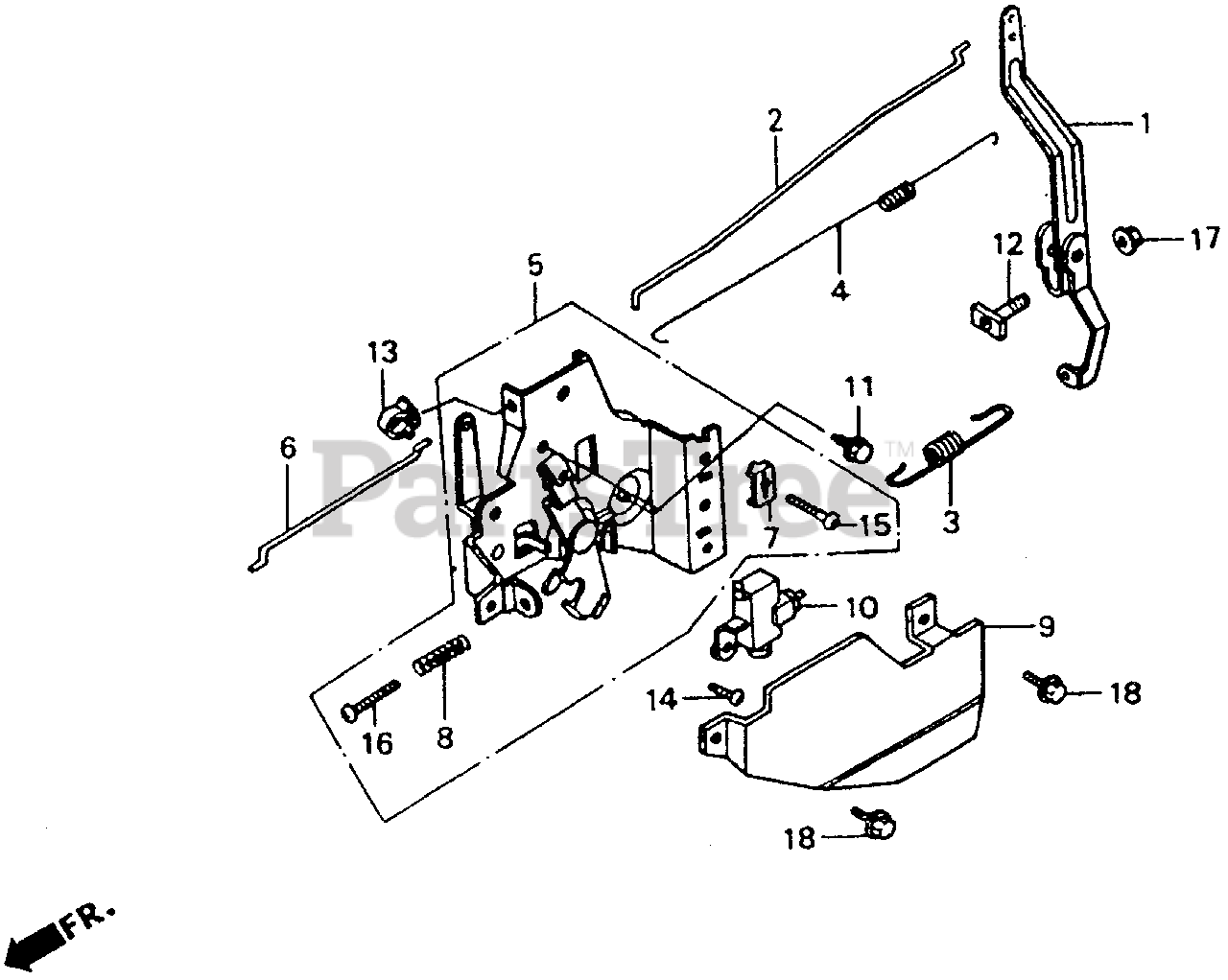

CONTROL Parts Diagram

  • Title

1

Honda 16551-ZE7-000

ARM, GOVERNOR

$19.99

$

Usually ships in 3-6 days

0

2

Honda 16555-ZE7-000

ROD, GOVERNOR

$5.49

$

Usually ships in 3-6 days

0

3

Honda 16561-ZE7-010

SPRING, GOVERNOR
(Superseded to 16561-ZE7-020)

$4.49

$

In Stock, only 2 left!

0

3

Honda 16561-ZE7-020

SEE PART DETAILS - PRI; SPRING, GOVERNOR (STD)

$4.49

$

In Stock, only 2 left!

0

4

Honda 16562-ZE6-000

SPRING, THROTTLE RETURN (Honda Code 1452911).

$4.99

$

Usually ships in 3-6 days

0

5

Honda 16570-ZE7-771

CONTROL ASSY.

$49.99

$

Usually ships in 3-6 days

0

5

Honda 16570-ZE7-772

SEE PART DETAILS - PRI; CONTROL

$49.99

$

In Stock, only 4 left!

0

6

Honda 16573-ZE7-000

ROD, CHOKE

$2.99

$

Usually ships in 3-6 days

0

7

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

$4.99

$

Usually ships in 3-6 days

0

8

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$4.99

$

In Stock, Qty 7

0

9

Honda 16585-ZE7-000

PROTECTOR, CONTROL

$15.99

$

Usually ships in 3-6 days

0

10

Honda 36100-ZE7-003

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE STOP
(Superseded to 36100-ZE7-013)

$20.99

$

Usually ships in 3-6 days

0

10

Honda 36100-ZE7-013

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

$20.99

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

12

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

13

Honda 90659-680-013

CLIP, WIRE HARNESS

$8.49

$

Usually ships in 3-6 days

0

14

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0156463).

$1.49

$

In Stock, only 4 left!

0

15

Honda 93500-05016-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X16) (Honda Code 0145557).

$1.49

$

In Stock, Qty 7

0

16

Honda 93500-05020-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X20) (Honda Code 0197731).

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

18

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0
