HR215 SMA (MZAM) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAM-6000001 - MZAM-6200000) TRANSMISSION 2 Parts Diagram

21" Walk-Behind Mower, Made in USA

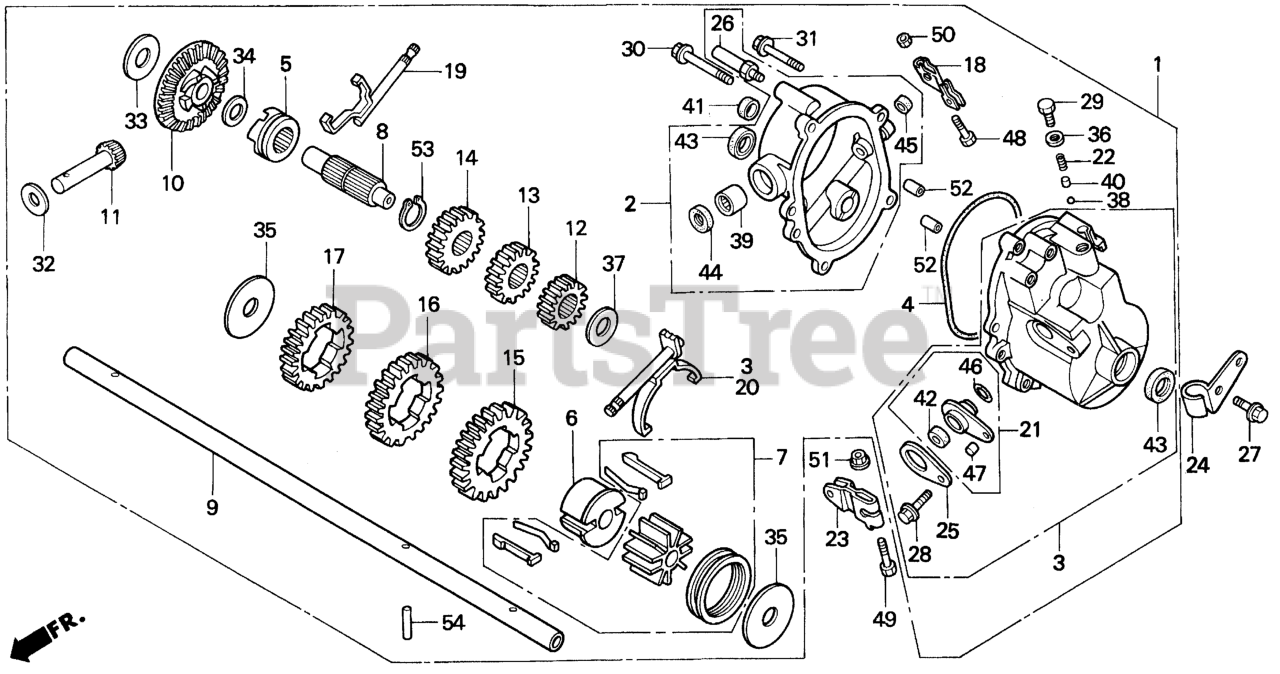

TRANSMISSION 2 Parts Diagram

  • Title

1

Honda 20001-VA3-J02

SEE PART DETAILS - SUP; TRANSMISSION ASSY. (DANA CORP.)

Note: Use from Frame SN 6102738 to 6170625.

$

$

Currently unavailable

1

Honda 20001-VA3-J03

TRANSMISSION ASSY. (DANA CORP.)

Note: Use from Frame SN 6170626.

$

$

Currently unavailable

2

Honda 21100-VA3-J02

SEE PART DETAILS - PRI; CASE ASSY., R. TRANSMISSION

Note: Use from Frame SN 6102738.

$65.99

$

Usually ships in 3-6 days

0

3

Honda 21200-VA3-J02

CASE ASSY., L. TRANSMISSION

Note: Use from Frame SN 6102738.

$103.99

$

Usually ships in 3-6 days

0

4

Honda 21592-VA3-J02

SEE PART DETAILS - PRI; O-RING, TRANSMISSION CASE
(Superseded to 21592-VA3-801)

Note: Use from Frame SN 6102738.

$5.99

$

Usually ships in 3-6 days

0

4

Honda 21592-VA3-800

O-RING, TRANS CASE
(Superseded to 21592-VA3-801)

Note: Use from Frame SN 6102738.

$5.99

$

Usually ships in 3-6 days

0

4

Honda 21592-VA3-801

SEE PART DETAILS - SUP; O-RING, TRANSMISSION CASE

Note: Use from Frame SN 6102738.

$5.99

$

Usually ships in 3-6 days

0

5

Honda 22549-VA3-J53

SEE PART DETAILS - PRI; CLUTCH, DRIVEN

Note: Use from Frame SN 6102738.

$

$

Not available

6

Honda 23214-VA3-J52

BOSS, CHANGE SHAFT

Note: Use from Frame SN 6102738.

$15.99

$

Usually ships in 3-6 days

0

7

Honda 23215-VA3-J02

KEY & HOLDER ASSY.

Note: Use from Frame SN 6102738.

$108.99

$

Usually ships in 3-6 days

0

8

Honda 23221-VA3-J52

COUNTERSHAFT

Note: Use from Frame SN 6102738.

$26.99

$

Usually ships in 3-6 days

0

9

Honda 23251-VA3-J52

SHAFT, FINAL

Note: Use from Frame SN 6102738.

$195.99

$

Usually ships in 3-6 days

0

10

Honda 23323-VA3-J00

SEE PART DETAILS - PRI; GEAR, BEVEL (44T)

$100.99

$

Usually ships in 3-6 days

0

11

Honda 23411-VB3-801

PINION, BEVEL

$45.99

$

Usually ships in 3-6 days

0

12

Honda 23421-VA3-J52

GEAR, FIRST DRIVE (14T)

Note: Use from Frame SN 6102738.

$9.99

$

Usually ships in 3-6 days

0

13

Honda 23422-VA3-J52

GEAR, SECOND DRIVE (18T)

Note: Use from Frame SN 6102738.

$9.49

$

Usually ships in 3-6 days

0

14

Honda 23423-VA3-J52

GEAR, THIRD DRIVE (20T)

Note: Use from Frame SN 6102738.

$6.99

$

Usually ships in 3-6 days

0

15

Honda 23431-VA3-J52

GEAR, FIRST DRIVEN (33T)

Note: Use from Frame SN 6102738.

$14.99

$

Usually ships in 3-6 days

0

16

Honda 23432-VA3-J52

GEAR, SECOND DRIVEN (29T)

Note: Use from Frame SN 6102738.

$18.99

$

Usually ships in 3-6 days

0

17

Honda 23433-VA3-J52

GEAR, THIRD DRIVEN (27T)

Note: Use from Frame SN 6102738.

$12.99

$

Usually ships in 3-6 days

0

18

Honda 23436-VA3-J02

ARM, CLUTCH

Note: Use from Frame SN 6102738.

$77.99

$

Usually ships in 3-6 days

0

19

Honda 23440-VA3-J03

SEE PART DETAILS - PRI; SHAFT, SHIFT

Note: Use from Frame SN 6102738.

$204.99

$

Usually ships in 3-6 days

0

20

Honda 24115-VA3-J52

FORK, SHIFT

Note: Use from Frame SN 6102738.

$130.99

$

Usually ships in 3-6 days

0

21

Honda 24135-VA3-J02

GUIDE ASSY., CHANGE LEVER

Note: Use from Frame SN 6102738.

$

$

Not available

22

Honda 24271-VA3-J02

SPRING, BALL SET

Note: Use from Frame SN 6102738.

$1.49

$

Usually ships in 3-6 days

0

23

Honda 24361-VA3-J02

SEE PART DETAILS - PRI; ARM, CHANGE

Note: Use from Frame SN 6102738.

$5.99

$

Usually ships in 3-6 days

0

24

Honda 24384-VA3-J02

BRACKET, WIRE HOLDER

Note: Use from Frame SN 6102738.

$3.49

$

Usually ships in 3-6 days

0

25

Honda 24624-VA3-J02

HOLDER, SHIFT SHAFT

Note: Use from Frame SN 6102738.

$24.99

$

Usually ships in 3-6 days

0

26

Honda 90012-VA3-J02

SEE PART DETAILS - PRI; BOLT, GUIDE (8MM)

Note: Use from Frame SN 6102738.

$4.49

$

In Stock, only 1 left!

0

26

Honda 90012-VA4-800

BOLT, GUIDE

Note: Use from Frame SN 6102738.

$4.49

$

Usually ships in 3-6 days

0

27

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use from Frame SN 6102738.

$2.49

$

In Stock, Qty 17

0

28

Honda 90103-VA5-J00

BOLT, FLANGE (6X16)

Note: Use from Frame SN 6102738.

$2.49

$

Usually ships in 3-6 days

0

29

Honda 90111-VA3-J00

BOLT, HEX. (8X10)

Note: Use from Frame SN 6102738.

$3.49

$

Usually ships in 3-6 days

0

30

Honda 90123-VA4-800

BOLT, FLANGE (6X25) (Honda Code 1454891).

Note: Use from Frame SN 6102738.

$2.99

$

Usually ships in 3-6 days

0

31

Honda 90125-VA4-800

BOLT, FLANGE (6X25)

Note: Use from Frame SN 6102738.

$3.99

$

In Stock, only 1 left!

0

32

Honda 90452-187-000

SEE PART DETAILS - PRI; WASHER (10X21)

Note: Use from Frame SN 6102738.

$3.49

$

Usually ships in 3-6 days

0

33

Honda 90411-KM1-000

WASHER, THRUST (14X32X1)

Note: Use from Frame SN 6102738.

$3.49

$

Usually ships in 3-6 days

0

34

Honda 90451-155-000

SEE PART DETAILS - PRI; WASHER (14MM)

Note: Use from Frame SN 6102738.

$5.49

$

Usually ships in 3-6 days

0

35

Honda 90514-VA3-J02

WASHER, THRUST (15X45)

Note: Use from Frame SN 6102738.

$2.99

$

Usually ships in 3-6 days

0

36

Honda 90421-KM1-003

SEE PART DETAILS - PRI; WASHER, SEALING (8X16X1.6)

Note: Use from Frame SN 6102738.

$2.99

$

Usually ships in 3-6 days

0

37

Honda 90516-VA3-J02

WASHER B, THRUST (12MM)

Note: Use from Frame SN 6102738.

$5.49

$

Usually ships in 3-6 days

0

38

Honda 90951-VA3-J02

SEE PART DETAILS - SUP; BALL, STEEL (6)

Note: Use from Frame SN 6102738.

$0.99

$

In Stock, Qty 6

0

38

Honda 96211-06000

SEE PART DETAILS - PRI; BALL, STEEL (#6) (3/16)

Note: Use from Frame SN 6102738.

$0.99

$

In Stock, Qty 6

0

39

Honda 91012-VB5-801

BEARING, NEEDLE (10X17X20)

Note: Use from Frame SN 6102738.

$17.99

$

Usually ships in 3-6 days

0

40

Honda 91152-VA3-J02

SEE PART DETAILS - PRI; RETAINER, BALL (6MM)

Note: Use from Frame SN 6102738.

$9.99

$

Usually ships in 3-6 days

0

41

Honda 91202-VA3-J02

PLUG, SEALING (14X4)

Note: Use from Frame SN 6102738.

$4.49

$

Usually ships in 3-6 days

0

42

Honda 91203-VA3-J02

SEE PART DETAILS - PRI; OIL SEAL (8X16X6)

Note: Use from Frame SN 6102738.

$1.99

$

In Stock, Qty 5

0

43

Honda 91205-VA3-J02

OIL SEAL (15X24X5)

Note: Use from Frame SN 6102738.

$3.49

$

In Stock, only 2 left!

0

44

Honda 91206-VA3-J02

SEE PART DETAILS - PRI; OIL SEAL (10X17X4)

Note: Use from Frame SN 6102738.

$2.99

$

In Stock, only 2 left!

0

45

Honda 91207-VA3-J02

OIL SEAL (8X14X5)

Note: Use from Frame SN 6102738.

$1.99

$

Usually ships in 3-6 days

0

46

Honda 91351-VA3-J02

O-RING (12.3X1.9)

Note: Use from Frame SN 6102738.

$2.49

$

In Stock, Qty 5

0

47

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

Note: Use from Frame SN 6102738.

$2.49

$

In Stock, Qty 5

0

48

Honda 92101-05020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X20)

Note: Use from Frame SN 6102738.

$1.99

$

Usually ships in 3-6 days

0

49

Honda 92101-06025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X25)

Note: Use from Frame SN 6102738.

$2.49

$

In Stock, Qty 10

0

50

Honda 94001-05000-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

Note: Use from Frame SN 6102738.

$2.49

$

Usually ships in 3-6 days

0

51

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

Note: Use from Frame SN 6102738.

$0.99

$

In Stock, Qty 20+

0

52

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

Note: Use from Frame SN 6102738.

$2.99

$

In Stock, Qty 8

0

53

Honda 94510-18000

CIRCLIP (OUTER) (18MM)

Note: Use from Frame SN 6102738.

$1.99

$

Usually ships in 3-6 days

0

54

Honda 96220-60224
