HR215 SMA (MZAM) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAM-6000001 - MZAM-6200000) REAR WHEEL Parts Diagram

21" Walk-Behind Mower, Made in USA

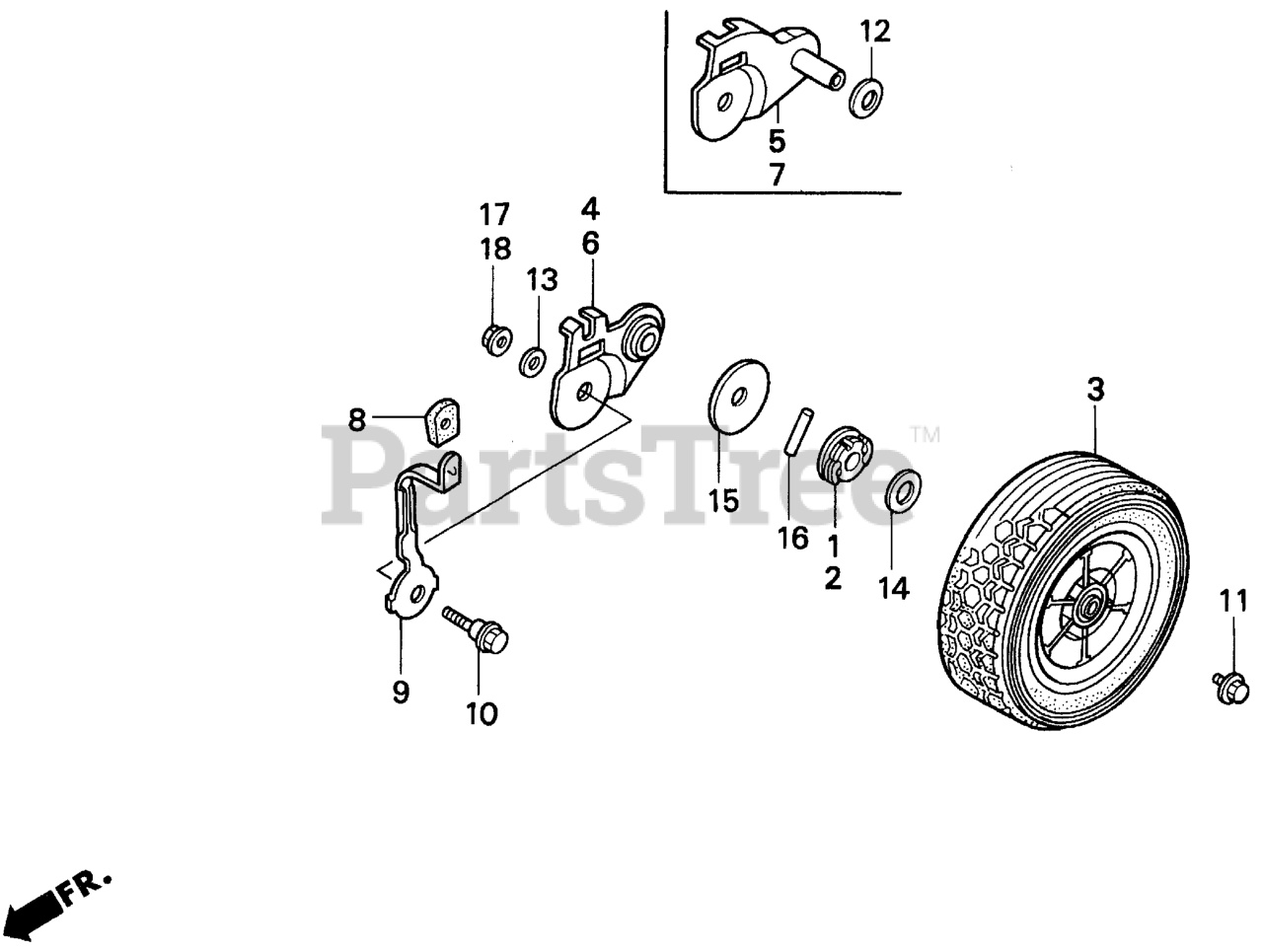

REAR WHEEL Parts Diagram

  • Title

NI

Honda 42751-VA3-J00

SEE PART DETAILS - PRI; TIRE (8 INCH)

$29.99

$

In Stock, only 2 left!

0

1

Honda 23510-VB5-803

SEE PART DETAILS - PRI; HOLDER, R. RATCHET

$32.99

$

In Stock, Qty 20+

0

2

Honda 23520-VB5-803

SEE PART DETAILS - PRI; HOLDER, L. RATCHET

$32.99

$

In Stock, Qty 20+

0

3

Honda 42810-VA3-J00

WHEEL, PROPELLED (8") (NH31)

$33.99

$

In Stock, Qty 9

0

4

Honda 42930-VA3-800

ARM C, L. WHEEL ADJUSTER

$46.99

$

Usually ships in 3-6 days

0

6

Honda 42940-VA3-800

ARM D, R. WHEEL ADJUSTER

$46.99

$

In Stock, only 1 left!

0

8

Honda 42952-952-000

GRIP, ADJUSTER

$5.99

$

In Stock, Qty 10

0

9

Honda 42961-VA3-000

PLATE, RR. ADJUSTER

$14.99

$

In Stock, only 3 left!

0

10

Honda 90105-VA5-000

BOLT, ADJUSTING CENTER

$6.99

$

In Stock, only 3 left!

0

11

Honda 90110-VA4-000

SEE PART DETAILS - PRI; BOLT, WHEEL

$4.49

$

In Stock, Qty 20+

0

13

Honda 90524-030-000

SEE PART DETAILS - PRI; WASHER A, HANDLE HOLDER SETTING

$1.99

$

In Stock, only 3 left!

0

14

Honda 90551-VA4-800

WASHER (16MM)

$3.99

$

In Stock, Qty 20+

0

15

Honda 90555-VA4-800

WASHER, WHEEL

$7.49

$

In Stock, only 3 left!

0

16

Honda 91101-VA4-801

ROLLER (5X23.8)

$5.49

$

In Stock, Qty 20+

0

18

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0
