HR215 SMA (MZAM) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAM-6000001 - MZAM-6200000) FRONT WHEEL Parts Diagram

21" Walk-Behind Mower, Made in USA

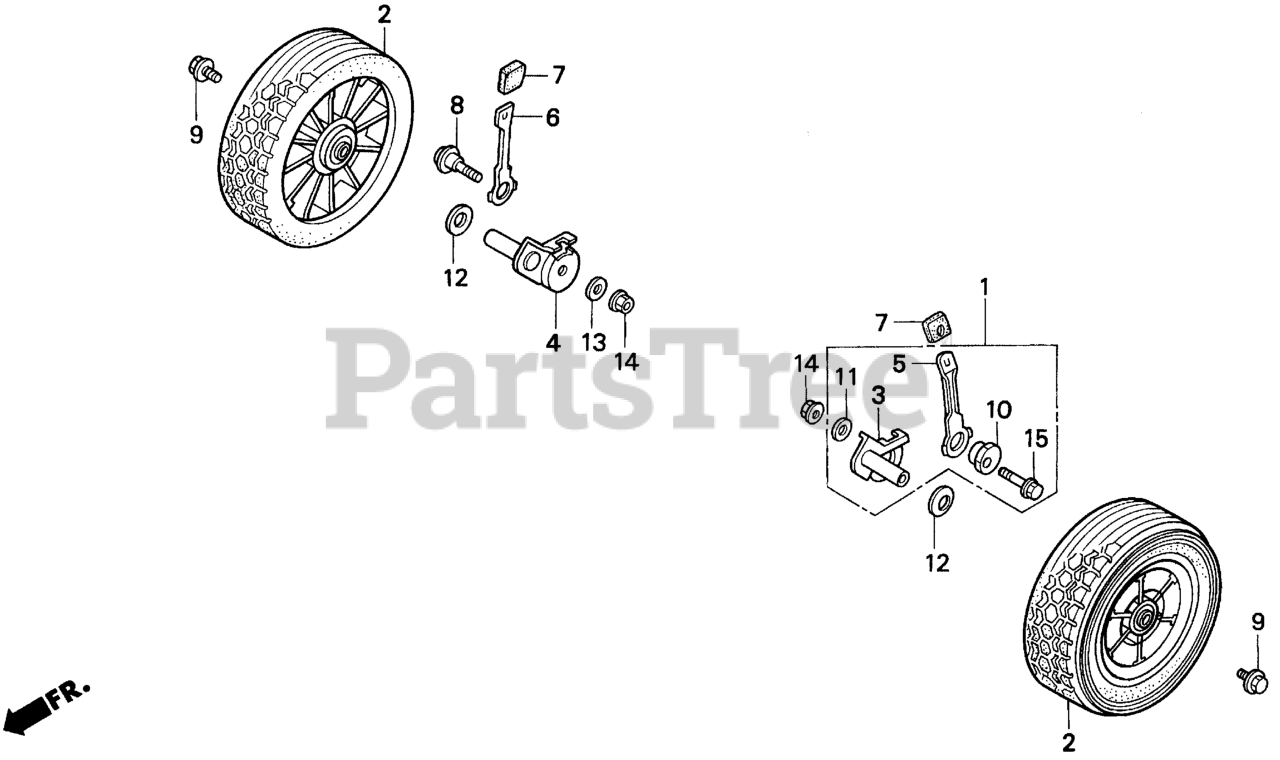

FRONT WHEEL Parts Diagram

  • Title

NI

Honda 42751-VA3-J00

SEE PART DETAILS - PRI; TIRE (8 INCH)

$29.99

$

Usually ships in 3-6 days

0

NI

Honda 91055-VA4-K10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL

$6.99

$

In Stock, only 4 left!

0

1

Honda 06420-VA3-000

SEE PART DETAILS - PRI; ADJUSTING KIT, WHEEL

Note: (Optional).

$50.99

$

Usually ships in 3-6 days

0

2

Honda 42710-VA3-J00

SEE PART DETAILS - PRI; WHEEL (8") *NH31* (MCKINLEY WHITE)

$37.99

$

Usually ships in 3-6 days

0

3

Honda 42910-VA3-010

ARM A, WHEEL ADJUSTING

$23.99

$

In Stock, only 1 left!

0

4

Honda 42920-VA2-010

SEE PART DETAILS - PRI; ARM B, WHEEL ADJUSTING

$22.99

$

In Stock, only 1 left!

0

5

Honda 42951-VA3-000

PLATE, FR. ADJUSTING (PART NEWS #006)

$9.49

$

In Stock, only 2 left!

0

6

Honda 42951-VA5-000

PLATE, FR. ADJUSTER

$5.49

$

In Stock, only 1 left!

0

7

Honda 42952-952-000

GRIP, ADJUSTER

$4.99

$

In Stock, only 2 left!

0

8

Honda 90105-VA5-000

BOLT, ADJUSTING CENTER

$5.99

$

In Stock, only 3 left!

0

9

Honda 90110-VA4-000

SEE PART DETAILS - PRI; BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

10

Honda 90301-VA3-010

NUT, ADJUSTING

$

$

Not available

11

Honda 90402-822-000

WASHER, HEAD (8MM) (Honda Code 0122101).

$1.99

$

Usually ships in 3-6 days

0

12

Honda 90455-VA2-000

WASHER, WHEEL

$4.49

$

In Stock, Qty 20+

0

13

Honda 90524-030-000

SEE PART DETAILS - PRI; WASHER A, HANDLE HOLDER SETTING

$1.99

$

In Stock, only 3 left!

0

14

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

15

Honda 95701-08045-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X45) (Honda Code 2533859).

$1.99

$

In Stock, Qty 20+

0
