HR215 SMA (MZAM) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAM-6000001 - MZAM-6200000) CUTTER HOUSING Parts Diagram

21" Walk-Behind Mower, Made in USA

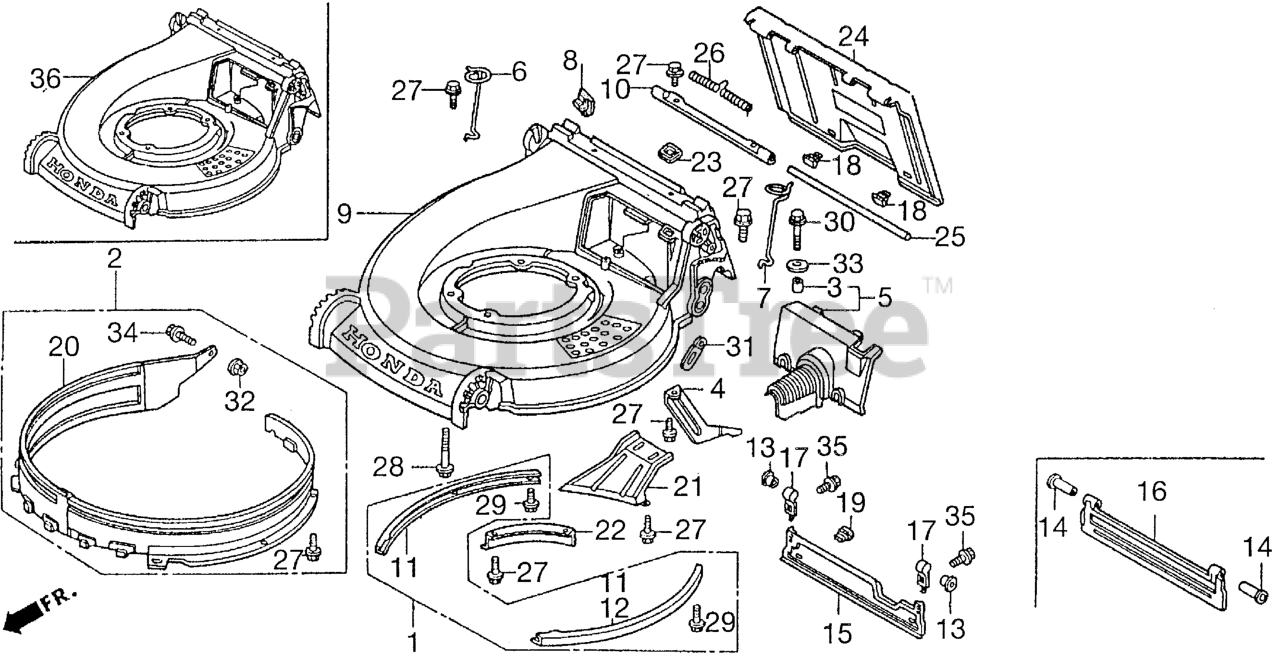

CUTTER HOUSING Parts Diagram

  • Title

1

Honda 06761-VA3-690

GUARD KIT, HOUSING

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

2

Honda 06761-VA3-J00

LINER KIT (INNER) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

3

Honda 19512-896-000

COLLAR, FAN

$4.99

$

Usually ships in 3-6 days

0

4

Honda 22511-VA3-800

GUIDE, TRANSMISSION MOUNT

$

$

Not available

5

Honda 54241-VA3-800ZB

COVER, DRIVESHAFT *NH192M* (GENTLY SILVER METALLIC)
(Superseded to 54241-VA3-800ZA)

$

$

Not available

6

Honda 54515-VA3-000

GUIDE, CABLE

$

$

Not available

7

Honda 54517-VA3-900

GUIDE B, CABLE

$4.99

$

Usually ships in 3-6 days

0

8

Honda 75136-VA5-000

GROMMET D, CABLE

$

$

Not available

9

Honda 76111-VA3-023ZB

SEE PART DETAILS - PRI; HOUSING, CUTTER *NH190M* (VINTAGE GRAY METALLIC)

$360.99

$

Usually ships in 3-6 days

0

10

Honda 76113-VA5-000

HINGE, DISCHARGE GUARD

$

$

Not available

11

Honda 06761-VA3-690

GUARD KIT, HOUSING

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

13

Honda 76117-VA3-J00

BUSH, SAFETY SHIELD

$

$

Not available

15

Honda 76118-VA3-J00

SHIELD, SAFETY

$

$

Not available

17

Honda 76119-VA3-J00

HANGER, SAFETY SHIELD

$6.49

$

In Stock, only 3 left!

0

18

Honda 76122-VA4-000

STOPPER, DISCHARGE GUARD

$4.49

$

In Stock, only 2 left!

0

19

Honda 76122-952-000

STOPPER, DISCHARGE GUARD Use up to Frame SN 1186736.

$4.99

$

In Stock, only 2 left!

0

20

Honda 76145-VA3-J00

LINER (INNER)

Note: (Optional).

$

$

Currently unavailable

21

Honda 76151-VA3-010

GUIDE, SCROLL

$25.99

$

Usually ships in 3-6 days

0

23

Honda 76231-VA3-000

GROMMET C, CABLE

$7.49

$

Usually ships in 3-6 days

0

24

Honda 76311-VA3-000

GUARD, DISCHARGE

$87.99

$

Usually ships in 3-6 days

0

25

Honda 76312-VA3-E40

SHAFT, DISCHARGE GUARD

$2.49

$

Usually ships in 3-6 days

0

25

Honda 76312-VB5-800

SHAFT, HINGE (NOT AVAILABLE)

$

$

Not available

26

Honda 76314-VA3-010

SPRING, GUARD RETURN

$

$

Not available

27

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: (Optional).

$1.99

$

In Stock, Qty 20+

0

28

Honda 90102-VA5-000

BOLT, ENGINE SETTING

$4.99

$

Usually ships in 3-6 days

0

29

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: (Optional).

$1.99

$

In Stock, Qty 20+

0

30

Honda 90125-VA4-800

BOLT, FLANGE (6X25)

$3.49

$

In Stock, only 1 left!

0

32

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

Note: (Optional).

$0.99

$

In Stock, only 3 left!

0

33

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

34

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

Note: (Optional).

$1.99

$

In Stock, Qty 5

0

35

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

36

Honda 76111-VA3-023ZB

SEE PART DETAILS - PRI; HOUSING, CUTTER *NH190M* (VINTAGE GRAY METALLIC)

$360.99

$

Usually ships in 3-6 days

0
