HR215 SMA (MZAM) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAM-6000001 - MZAM-6200000) CONTROL PANEL Parts Diagram

21" Walk-Behind Mower, Made in USA

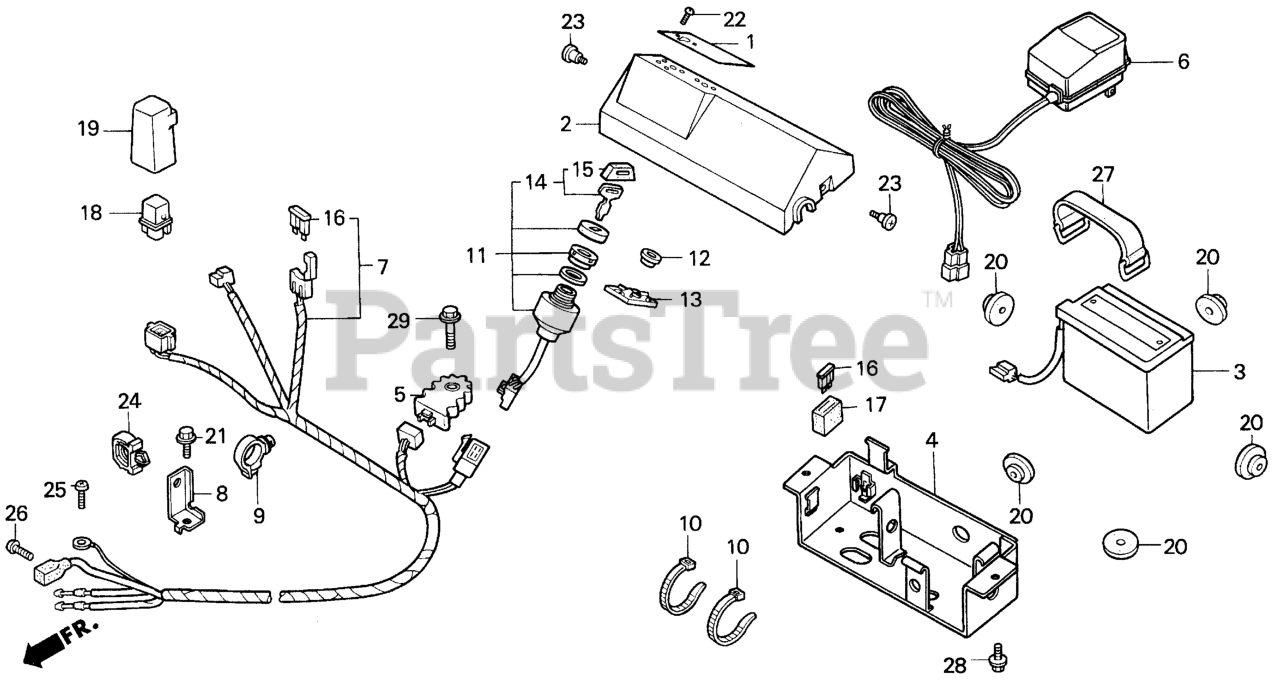

CONTROL PANEL Parts Diagram

  • Title

1

Honda 31305-VA3-R10

PLATE, ENGINE SWITCH OPERATION (A,C,E)

$20.99

$

Usually ships in 3-6 days

0

2

Honda 31311-VA3-P00

PANEL, CONTROL

$77.99

$

Usually ships in 3-6 days

0

3

Honda 31500-VA3-P01

SEE PART DETAILS - SUP; BATTERY ASSY. (LCS2912H)
(Superseded to 31500-VA3-S01)

$

$

Not available

4

Honda 31550-VA3-P00

CASE, BATTERY

$80.99

$

Usually ships in 3-6 days

0

5

Honda 31601-197-711

SEE PART DETAILS - SUP; RECTIFIER, REGULATE
(Superseded to 31750-735-013)

$37.99

$

Usually ships in 3-6 days

0

6

Honda 31670-VA3-802

CHARGER ASSY., BATTERY
(Superseded to 31670-VA3-951)

$104.99

$

Usually ships in 3-6 days

0

7

Honda 32100-VA3-P01

HARNESS ASSY., MAIN

$

$

Not available

8

Honda 32112-VB3-A10

BRACKET, HARNESS CLIP

$

$

Not available

10

Honda 32901-VB5-800

TIE, CABLE

$3.49

$

In Stock, only 2 left!

0

11

Honda 35100-VB3-A12

SWITCH ASSY., COMBINATION

$154.99

$

Usually ships in 3-6 days

0

12

Honda 35101-752-000

COLLAR, COMBINATION SWITCH

$6.99

$

Usually ships in 3-6 days

0

13

Honda 35102-VA3-900

PLATE, COMBINATION SWITCH

$

$

Not available

14

Honda 35110-VA3-903

SEE PART DETAILS - PRI; KEY ASSY., COMBINATION SWITCH

$10.99

$

Usually ships in 3-6 days

0

15

Honda 35113-459-730

CAP, KEY

$7.49

$

Usually ships in 3-6 days

0

16

Honda 38206-VA3-P01

FUSE (F1) (LITTEL)

$

$

Not available

17

Honda 38306-KK4-000

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 38501-KG8-004

RELAY, STARTER (OMRON)

$58.99

$

Usually ships in 3-6 days

0

19

Honda 38506-KG8-004

SUSPENSION, STARTER RELAY (OMRON)

$

$

Not available

20

Honda 83618-323-000

RUBBER, BATTERY BOX

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

22

Honda 90101-VA3-900

SCREW (3X8)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90380-MA6-010

SEE PART DETAILS - PRI; SCREW, SPECIAL (6X12) (Honda Code 1490648).

$4.49

$

Usually ships in 3-6 days

0

24

Honda 90650-SB2-003

CLIP, WIRE HARNESS (10MM) (Honda Code 1640358).

$8.99

$

Usually ships in 3-6 days

0

25

Honda 93500-04006-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X6)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 93500-05008-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X8) (Honda Code 0145540).

$1.49

$

In Stock, Qty 8

0

27

Honda 95012-13001

BAND B2, BATTERY

$7.49

$

Usually ships in 3-6 days

0

28

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0

29

Honda 95701-06030-08

BOLT, FLANGE (6X30)

$2.99

$

Usually ships in 3-6 days

0
