HR215 SMA (MZAM) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAM-6000001 - MZAM-6200000) CARBURETOR Parts Diagram

21" Walk-Behind Mower, Made in USA

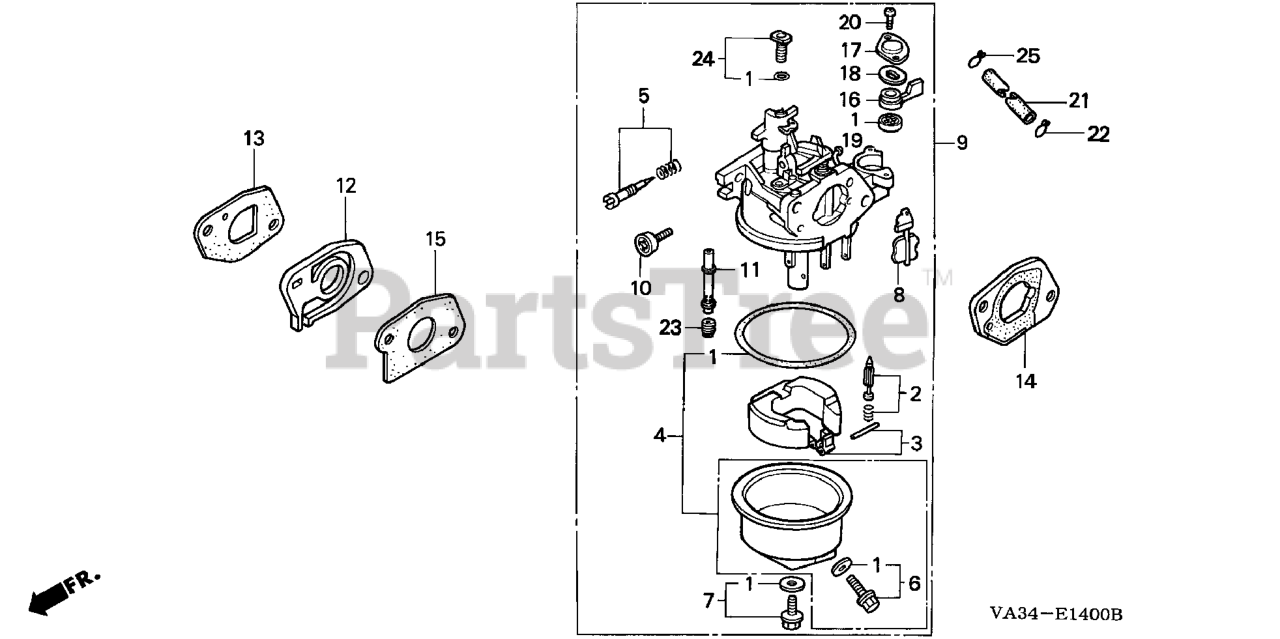

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET (CARBURETOR NO.)

$20.99

$

Usually ships in 3-6 days

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZE0-005

FLOAT SET (Honda Code 1441492).

$31.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (CARBURETOR NO.)

$38.99

$

In Stock, only 1 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT (Honda Code 1441500). (CARBURETOR NO.)

$15.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

Honda 16044-ZE7-005

CHOKE SET (CARBURETOR NO.)

$37.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZG9-005

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE46A C)

$113.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZG9-000

NOZZLE, MAIN

$

$

Not available

12

Honda 16211-ZG9-000

INSULATOR, CARBURETOR

$11.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZG9-T00

GASKET, CARBURETOR (HPE)

$5.99

$

In Stock, only 3 left!

0

14

Honda 16220-ZE6-010

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2455640).

$8.49

$

In Stock, Qty 5

0

15

Honda 16221-ZG9-J60

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

15

Honda 16221-ZG9-T00

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

15

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4725289).

$2.49

$

In Stock, Qty 20+

0

16

Honda 16953-ZE6-015

SEE PART DETAILS - PRI; LEVER, PETCOCK (CARBURETOR NO.)

Note: Use up to Engine SN BE46A B.

$8.49

$

In Stock, only 1 left!

0

16

Honda 16953-ZE6-015

SEE PART DETAILS - PRI; LEVER, PETCOCK (CARBURETOR NO.)

Note: Use from Engine SN BE46A C.

$8.49

$

In Stock, only 1 left!

0

17

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.49

$

In Stock, only 1 left!

0

18

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$4.49

$

In Stock, Qty 20+

0

20

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

Note: Use from Engine SN BE46A C.

$1.49

$

In Stock, only 3 left!

0

20

Honda 93500-03008-1G

SCREW, PAN (3X8) (CARBURETOR NO.)

Note: Use up to Engine SN BE46A B.

$

$

Currently unavailable

23

Honda 99101-ZH7-0650

SEE PART DETAILS - PRI; JET, MAIN (#65) Use from Engine SN BE40A G.

$11.99

$

Usually ships in 3-6 days

0

23

Honda 99101-124-0600

JET, MAIN (#60) (Honda Code 0635474). (CARBURETOR NO.)

Note: (Optional).

$12.99

$

In Stock, Qty 5

0

23

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482). (CARBURETOR NO.)

Note: (Optional).

$11.99

$

In Stock, only 2 left!

0

24

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

$23.99

$

In Stock, only 1 left!

0
