HR215 K1 SXA (MZAM) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAM-6200001 - MZAM-9999999) FAN COVER (2) Parts Diagram

21" Walk-Behind Mower, Made in USA

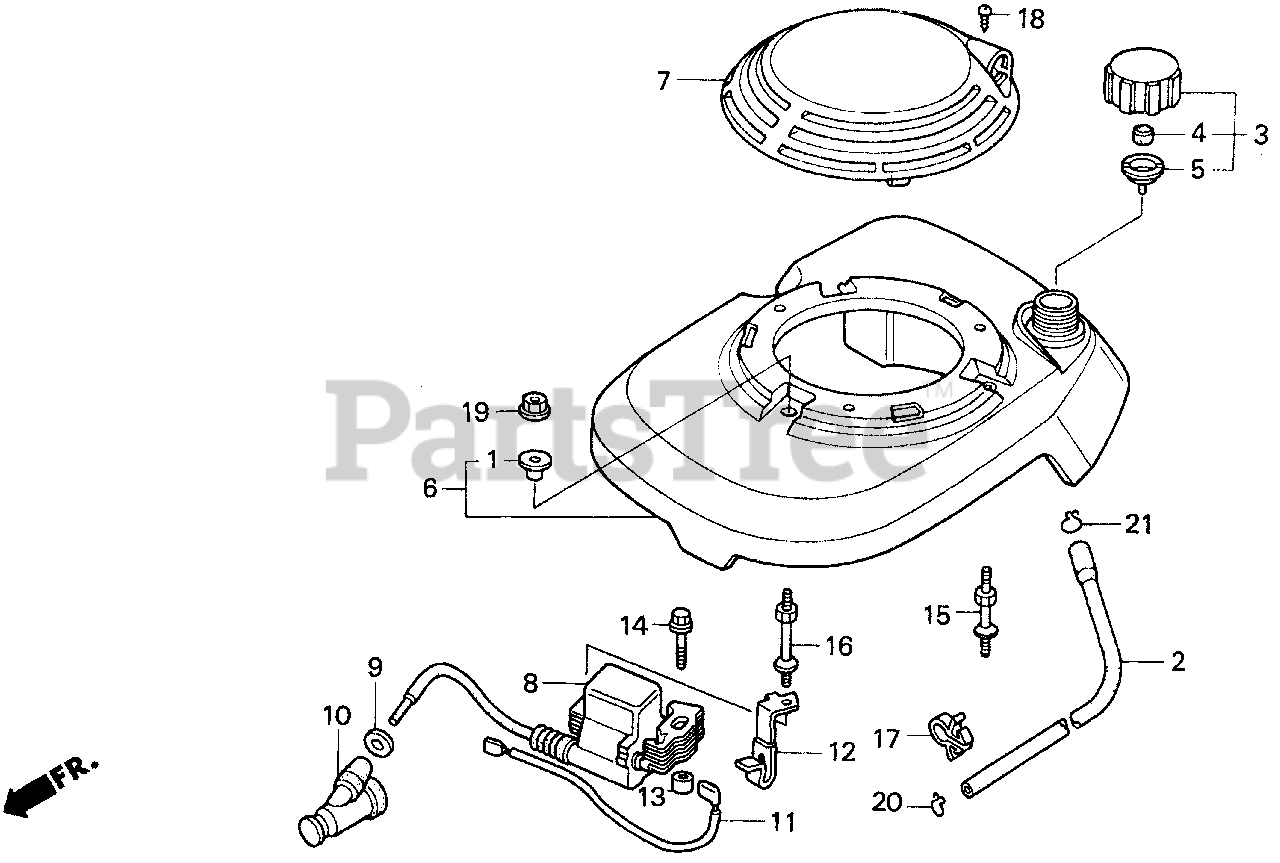

FAN COVER (2) Parts Diagram

  • Title

1

Honda 17216-PE2-003

COLLAR, AIR CLEANER

$9.49

$

Usually ships in 3-6 days

0

2

Honda 17522-ZG9-M00

TUBE, FUEL TANK

Note: Use up to Engine SN 6324985.

$

$

Not available

2

Honda 17522-ZG9-M10

TUBE, FUEL TANK (135MM)

Note: Use from Engine SN 6324986 to 7761237.

$6.99

$

In Stock, Qty 8

0

2

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.3X135)

Note: Use from Engine SN 7761238.

$73.99

$

Usually ships in 3-6 days

0

3

Honda 17620-ZG9-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$13.99

$

In Stock, only 3 left!

0

4

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 4 left!

0

5

Honda 17624-ZE7-000

SEE PART DETAILS - PRI; GASKET, FUEL CAP

$5.99

$

Usually ships in 3-6 days

0

6

Honda 19610-ZG9-M70

SEE PART DETAILS - SUP; COVER, FAN

Note: Use up to Engine SN 7702294.

$

$

Currently unavailable

6

Honda 19610-ZG9-M71

SEE PART DETAILS - PRI; COVER, FAN

Note: Use from Engine SN 7702295.

$

$

Not available

7

Honda 19615-ZG9-M00ZB

SEE PART DETAILS - PRI; HOOD, FAN COVER *R8* (SMOOTH) (BRIGHT RED)

Note: Use up to Engine SN 7702294.

$67.99

$

Usually ships in 3-6 days

0

7

Honda 19615-ZG9-M01

HOOD, FAN COVER (GLOSSY FINISH)

Note: Use from Engine SN 7702295.

$61.99

$

Usually ships in 3-6 days

0

8

Honda 30500-ZG9-M02

SEE PART DETAILS - SUP; COIL ASSY., IGNITION

$

$

Currently unavailable

8

Honda 30500-ZG9-M03

SEE PART DETAILS - SUP; COIL ASSY., IGNITION

$

$

Not available

8

Honda 30500-ZG9-M04

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-ZE7-063)

$102.99

$

In Stock, only 2 left!

0

9

Honda 30505-ZE6-000

GROMMET, IGNITION WIRE

$2.99

$

Usually ships in 3-6 days

0

10

Honda 30700-ZE6-023

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

$27.99

$

Usually ships in 3-6 days

0

14

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (CT200)

$3.49

$

In Stock, Qty 17

0

15

Honda 90041-ZG9-M00

BOLT A, STUD

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90042-ZG9-M00

BOLT B, STUD

$

$

Not available

17

Honda 90682-959-661

CLIP B, CABLE

$4.49

$

In Stock, only 2 left!

0

18

Honda 93913-24580

SCREW, TAPPING (4X20)

$0.99

$

In Stock, Qty 7

0

19

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

20

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use up to Engine SN 6324985.

$2.49

$

In Stock, Qty 20+

0

21

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use from Engine SN 6324986.

$2.99

$

In Stock, Qty 17

0
