HR215 HMA (MZAM) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZAM-6000001 - MZAM-9999999) RECOIL STARTER (1) Parts Diagram

21" Walk-Behind Mower, Made in USA

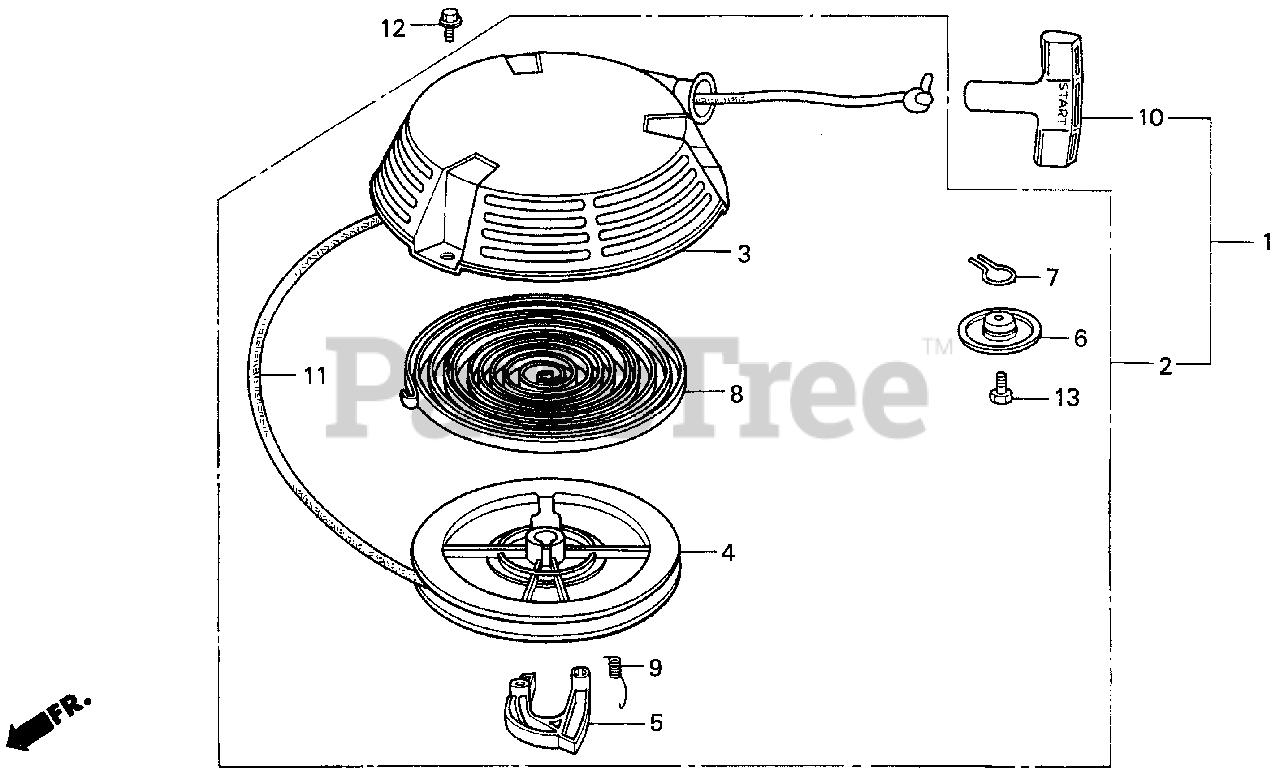

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZE6-003ZA

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-ZE6-003ZD)

Note: Use up to Engine SN 6061016.

$132.99

$

In Stock, only 2 left!

0

1

Honda 28400-ZE6-003ZD

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use up to Engine SN 6061016.

$132.99

$

In Stock, only 2 left!

0

3

Honda 28410-ZE6-003ZA

SEE PART DETAILS - SUP; CASE, RECOIL STARTER *R8* (BRIGHT RED)

Note: Use up to Engine SN 6061016.

$

$

Not available

3

Honda 28410-ZE6-003ZE

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R280* (POWER RED)

Note: Use up to Engine SN 6061016.

$119.99

$

In Stock, only 1 left!

0

4

Honda 28420-ZE6-003

PULLEY, RECOIL STARTER

Note: Use up to Engine SN 6061016.

$

$

Not available

5

Honda 28422-896-010

RATCHET, STARTER

Note: Use up to Engine SN 6061016.

$7.99

$

In Stock, only 1 left!

0

6

Honda 28431-896-000

PLATE, FRICTION

Note: Use up to Engine SN 6061016.

$6.49

$

Usually ships in 3-6 days

0

7

Honda 28441-896-000

SPRING, FRICTION

Note: Use up to Engine SN 6061016.

$8.49

$

Usually ships in 3-6 days

0

8

Honda 28442-ZE6-003

SPRING, RECOIL STARTER

Note: Use up to Engine SN 6061016.

$23.99

$

In Stock, only 1 left!

0

9

Honda 28443-896-000

SPRING, RETURN

Note: Use up to Engine SN 6061016.

$4.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZE1-003

SEE PART DETAILS - SUP; KNOB, RECOIL STARTER
(Superseded to 28461-ZE1-013)

Note: Use up to Engine SN 6061016.

$8.49

$

In Stock, only 2 left!

0

11

Honda 28462-ZA7-003

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER
(Superseded to 28462-ZE6-T02)

Note: Use up to Engine SN 6061016.

$5.99

$

In Stock, Qty 10

0

11

Honda 28462-ZE6-T02

SEE PART DETAILS - PRI; ROPE (#4X55")

Note: Use up to Engine SN 6061016.

$5.99

$

In Stock, Qty 10

0

12

Honda 90012-ZE6-000

BOLT, FLANGE (6X8)

Note: Use up to Engine SN 6061016.

$2.49

$

In Stock, only 3 left!

0

12

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: Use from Engine SN 6061017.

$3.49

$

In Stock, only 2 left!

0

13

Honda 92101-06012-0H

BOLT, HEX. (6X12)

Note: Use up to Engine SN 6061016.

$1.99

$

Usually ships in 3-6 days

0
