HR214 SXA (HR214) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR214-1000001 - HR214-9999999) REAR WHEEL Parts Diagram

21" Walk-Behind Mower, Made in Japan

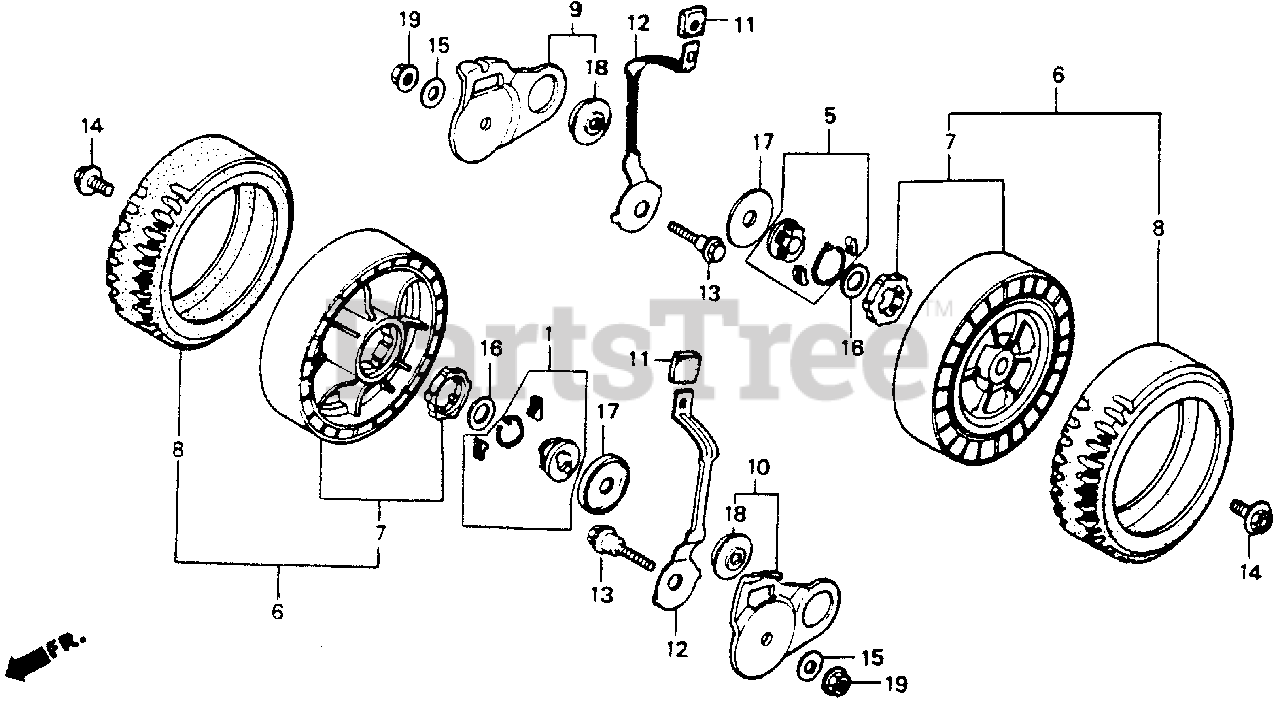

REAR WHEEL Parts Diagram

  • Title

1

Honda 23510-VB5-801

SEE PART DETAILS - SUP; HOLDER, R. RATCHET
(Superseded to 23510-VB5-803)

Note: Use up to Frame SN 1175647.

$30.99

$

In Stock, Qty 8

0

1

Honda 23510-VB5-802

SEE PART DETAILS - SUP; HOLDER, R. RATCHET

Note: Use up to Frame SN 1175647.

$

$

Currently unavailable

1

Honda 23510-VB5-803

SEE PART DETAILS - PRI; HOLDER, R. RATCHET

$30.99

$

In Stock, Qty 8

0

5

Honda 23520-VB5-801

SEE PART DETAILS - SUP; HOLDER, L. RATCHET
(Superseded to 23520-VB5-803)

Note: Use up to Frame SN 1175647.

$30.99

$

In Stock, Qty 10

0

5

Honda 23520-VB5-803

SEE PART DETAILS - PRI; HOLDER, L. RATCHET

$30.99

$

In Stock, Qty 10

0

6

Honda 42810-VA4-801

WHEEL

$65.99

$

In Stock, only 4 left!

0

7

Honda 42812-VA4-801

HUB, WHEEL (NA USE ALT:42810-VA3-J00)

$31.99

$

Usually ships in 3-6 days

0

8

Honda 42751-VA3-J00

SEE PART DETAILS - PRI; TIRE (8 INCH)

$29.99

$

In Stock, only 4 left!

0

9

Honda 42930-VA3-800

ARM C, L. WHEEL ADJUSTER

$44.99

$

In Stock, only 1 left!

0

10

Honda 42940-VA3-800

ARM D, R. WHEEL ADJUSTER

$44.99

$

In Stock, only 1 left!

0

11

Honda 42952-952-000

GRIP, ADJUSTER

$5.49

$

In Stock, only 2 left!

0

12

Honda 42961-VA3-000

PLATE, RR. ADJUSTER

$13.99

$

In Stock, Qty 5

0

13

Honda 90105-VA5-000

BOLT, ADJUSTING CENTER

$6.99

$

In Stock, only 3 left!

0

14

Honda 90110-VA4-000

BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

15

Honda 90505-425-000

SEE PART DETAILS - SUP; WASHER (8MM)
(Superseded to 90524-030-000)

$1.99

$

In Stock, only 3 left!

0

15

Honda 90524-030-000

SEE PART DETAILS - PRI; WASHER A, HANDLE HOLDER SETTING

$1.99

$

In Stock, only 3 left!

0

16

Honda 90551-VA4-800

WASHER (16MM)

$3.99

$

In Stock, only 3 left!

0

17

Honda 90555-VA4-800

WASHER, WHEEL

$6.99

$

In Stock, only 3 left!

0

18

Honda 91054-VA4-800

BEARING, RADIAL BALL

$30.99

$

Usually ships in 3-6 days

0

19

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0
