HR214 SXA#1 (HR214) - Honda 21" Walk-Behind Mower, Made in USA (SN: HR214-6000001 - HR214-9999999) JOINT Parts Diagram

21" Walk-Behind Mower, Made in USA

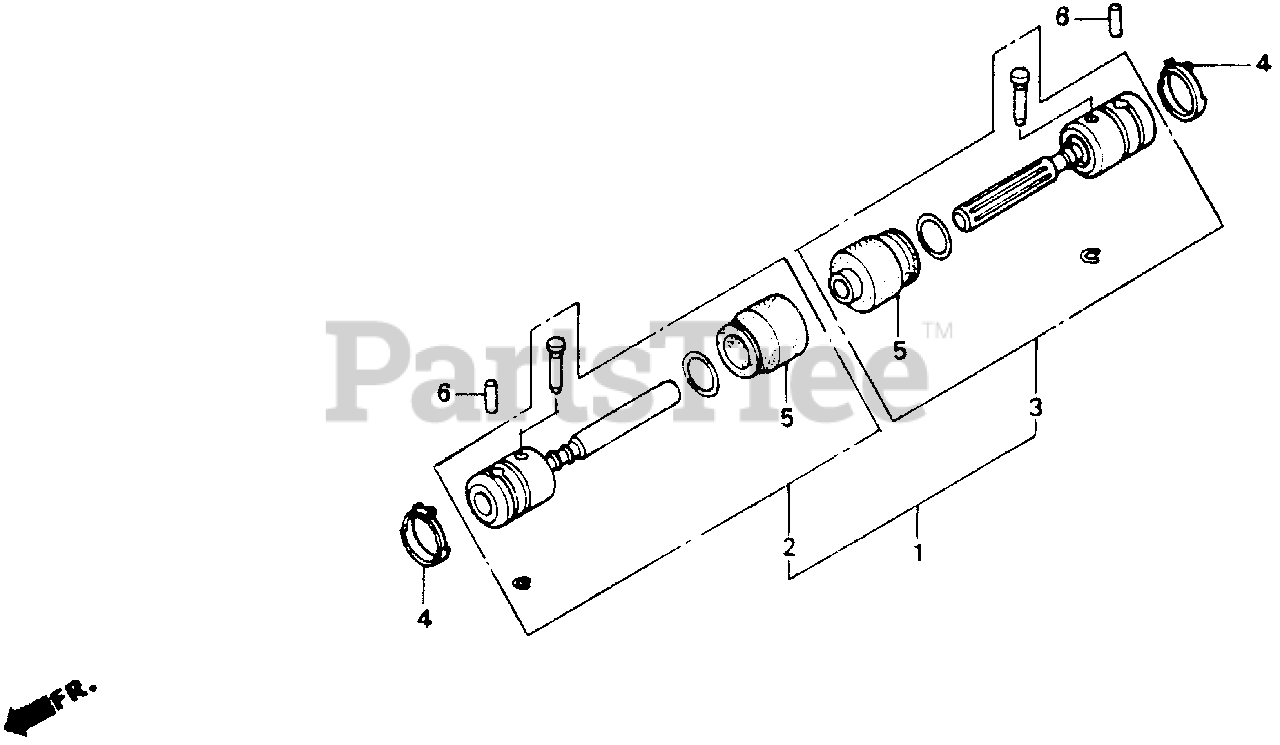

JOINT Parts Diagram

  • Title

1

Honda 22100-VB3-803

SEE PART DETAILS - SUP; JOINT ASSY.
(Superseded to 22100-VB3-806)

$121.99

$

Usually ships in 3-6 days

0

1

Honda 22100-VB5-L01

SEE PART DETAILS - SUP; JOINT ASSY.
(Superseded to 22100-VB5-L03)

$140.99

$

Usually ships in 3-6 days

0

2

Honda 22150-VB3-801

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (A)
(Superseded to 22150-VB3-806)

$67.99

$

Usually ships in 3-6 days

0

3

Honda 22160-VB3-802

SEE PART DETAILS - SUP; JOINT SUB-ASSY. (B)
(Superseded to 22160-VB3-806)

$68.99

$

Usually ships in 3-6 days

0

4

Honda 23435-VA2-701

CLIP, CLUTCH SHAFT

$4.99

$

Usually ships in 3-6 days

0

5

Honda 22123-VA4-801

SEE PART DETAILS - PRI; BOOT, JOINT
(Superseded to 22123-VA4-804)

$5.49

$

Usually ships in 3-6 days

0

6

Honda 96220-40178

ROLLER (4X17.8)

$1.49

$

In Stock, only 3 left!

0
