HR214 SMA#1 (HR214) - Honda 21" Walk-Behind Mower, Made in USA (SN: HR214-6000001 - HR214-9999999) STARTER MOTOR UNIT Parts Diagram

21" Walk-Behind Mower, Made in USA

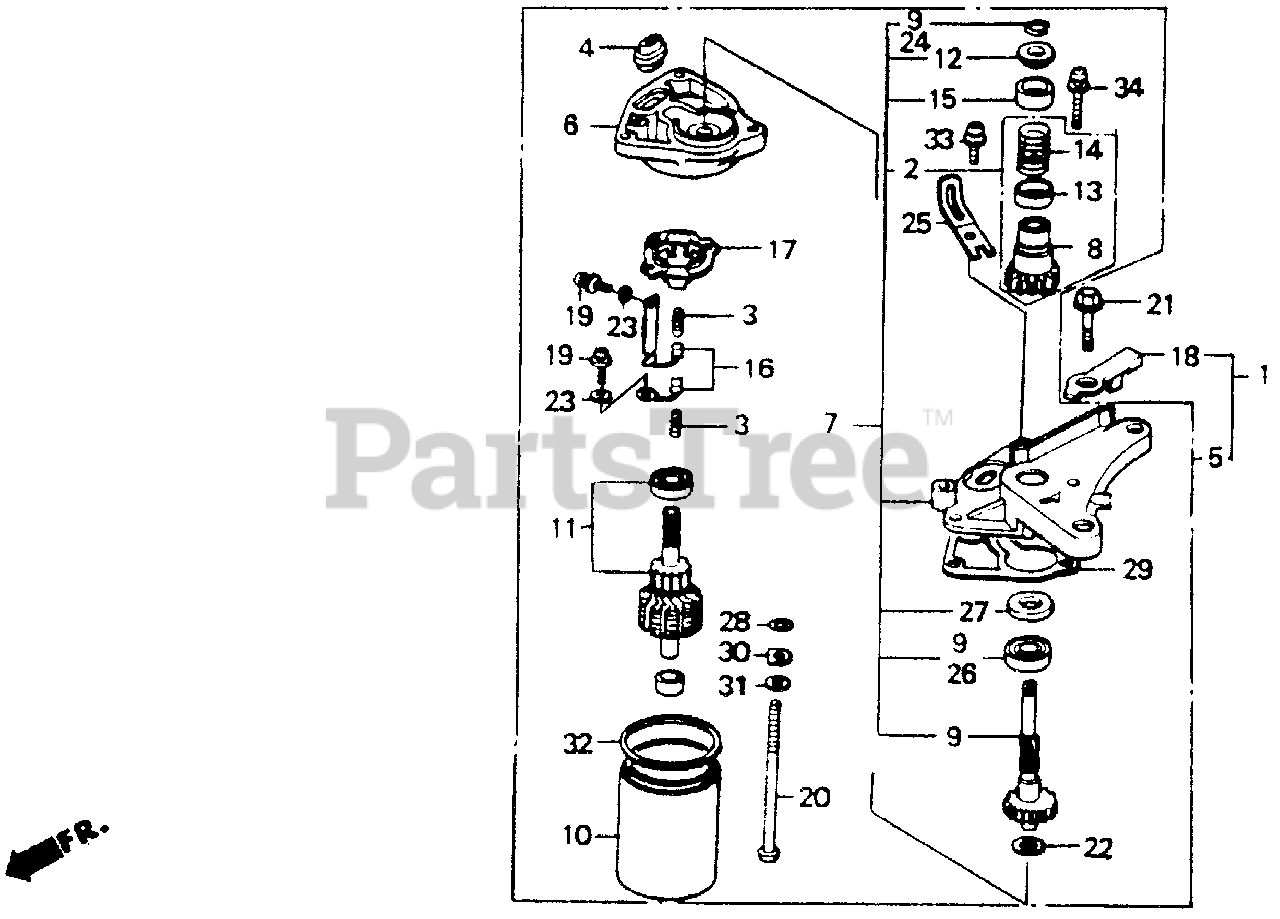

STARTER MOTOR UNIT Parts Diagram

  • Title

1

Honda 31010-ZE6-305

SEE PART DETAILS - SUP; MOTOR UNIT SET, STARTER
(Superseded to 31210-ZE6-043)

Note: Use up to Engine SN 1177050.

$280.99

$

Usually ships in 3-6 days

0

1

Honda 31210-ZE6-023

SEE PART DETAILS - SUP; MOTOR UNIT, STARTER

Note: Use up to Engine SN 1177050.

$

$

Not available

1

Honda 31210-ZE6-043

SEE PART DETAILS - PRI; MOTOR UNIT, STARTER

Note: Use up to Engine SN 1177050.

$280.99

$

Usually ships in 3-6 days

0

2

Honda 31011-ZE6-305

GEAR SET, PINION

Note: Use up to Engine SN 1177050.

$

$

Not available

3

Honda 31204-187-701

SPRING, BRUSH

$5.49

$

Usually ships in 3-6 days

0

4

Honda 31207-187-701

GROMMET

$

$

Not available

5

Honda 31010-ZE6-305

SEE PART DETAILS - SUP; MOTOR UNIT SET, STARTER
(Superseded to 31210-ZE6-043)

Note: Use up to Engine SN 1177050.

$280.99

$

Usually ships in 3-6 days

0

5

Honda 31210-ZE6-003

SEE PART DETAILS - SUP; MOTOR UNIT, STARTER

Note: Use up to Engine SN 1177050.

$

$

Not available

5

Honda 31210-ZE6-023

SEE PART DETAILS - SUP; MOTOR UNIT, STARTER

Note: Use up to Engine SN 1669962.

$

$

Not available

5

Honda 31210-ZE6-043

SEE PART DETAILS - PRI; MOTOR UNIT, STARTER

$280.99

$

Usually ships in 3-6 days

0

6

Honda 31211-ZE6-003

BRACKET, FR.

$

$

Not available

7

Honda 31212-ZE6-023

COVER, GEAR

Note: Use from Engine SN 1177051.

$

$

Not available

8

Honda 31214-ZE6-013

GEAR, PINION (16T)

Note: Use from Engine SN 1177051.

$119.99

$

Usually ships in 3-6 days

0

9

Honda 31215-ZE6-013

SEE PART DETAILS - SUP; SHAFT SET, GEAR
(Superseded to 31215-ZE6-023)

Note: Use up to Engine SN 1669962.

$104.99

$

Usually ships in 3-6 days

0

9

Honda 31215-ZE6-023

SEE PART DETAILS - PRI; SHAFT SET, GEAR

$104.99

$

Usually ships in 3-6 days

0

10

Honda 31216-ZE6-003

YOKE ASSY.

$

$

Not available

11

Honda 31217-ZE6-013

SEE PART DETAILS - PRI; ROTOR ASSY.

$

$

Not available

12

Honda 31221-ZE6-003

PIECE A, STOPPER

$10.99

$

Usually ships in 3-6 days

0

13

Honda 31222-ZE6-003

PIECE B, STOPPER

$

$

Not available

14

Honda 31223-ZE6-013

SPRING, RETURN

Note: Use from Engine SN 1177051.

$

$

Not available

15

Honda 31224-ZE6-003

COVER, SPRING

$

$

Not available

16

Honda 31226-ZE6-003

BRUSH SET

$

$

Not available

17

Honda 31227-ZE6-003

HOLDER, BRUSH

$

$

Not available

18

Honda 31632-ZE6-000

CLIP, WIRE

Note: Use from Engine SN 1177051.

$

$

Not available

19

Honda 90010-187-701

SCREW-WASHER (3X8)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 90012-ZE6-003

BOLT, SETTING

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 1 left!

0

22

Honda 90401-ZE6-003

WASHER, PINION

$

$

Not available

23

Honda 90501-187-701

WASHER, SPECIAL

$

$

Not available

24

Honda 90601-ZE6-003

CIRCLIP (7.1MM)

$2.49

$

In Stock, Qty 7

0

25

Honda 90631-ZE6-003

CLAMP, CORD

$

$

Not available

26

Honda 31215-ZE6-023

SEE PART DETAILS - PRI; SHAFT SET, GEAR

$104.99

$

Usually ships in 3-6 days

0

27

Honda 91201-ZE6-003

OIL SEAL

$5.99

$

Usually ships in 3-6 days

0

28

Honda 91301-ZE6-003

O-RING

$

$

Not available

29

Honda 91401-ZE6-013

SEE PART DETAILS - PRI; GASKET

$

$

Not available

30

Honda 91402-ZE6-003

WASHER, SPECIAL

$2.99

$

Usually ships in 3-6 days

0

31

Honda 91403-ZE6-003

WASHER, SPRING

$2.49

$

Usually ships in 3-6 days

0

32

Honda 91601-ZE6-003

GASKET

$8.49

$

Usually ships in 3-6 days

0

33

Honda 93892-05016-08

SCREW-WASHER (5X16)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 93892-05032-08

SCREW-WASHER (5X3)

$1.99

$

In Stock, Qty 6

0
