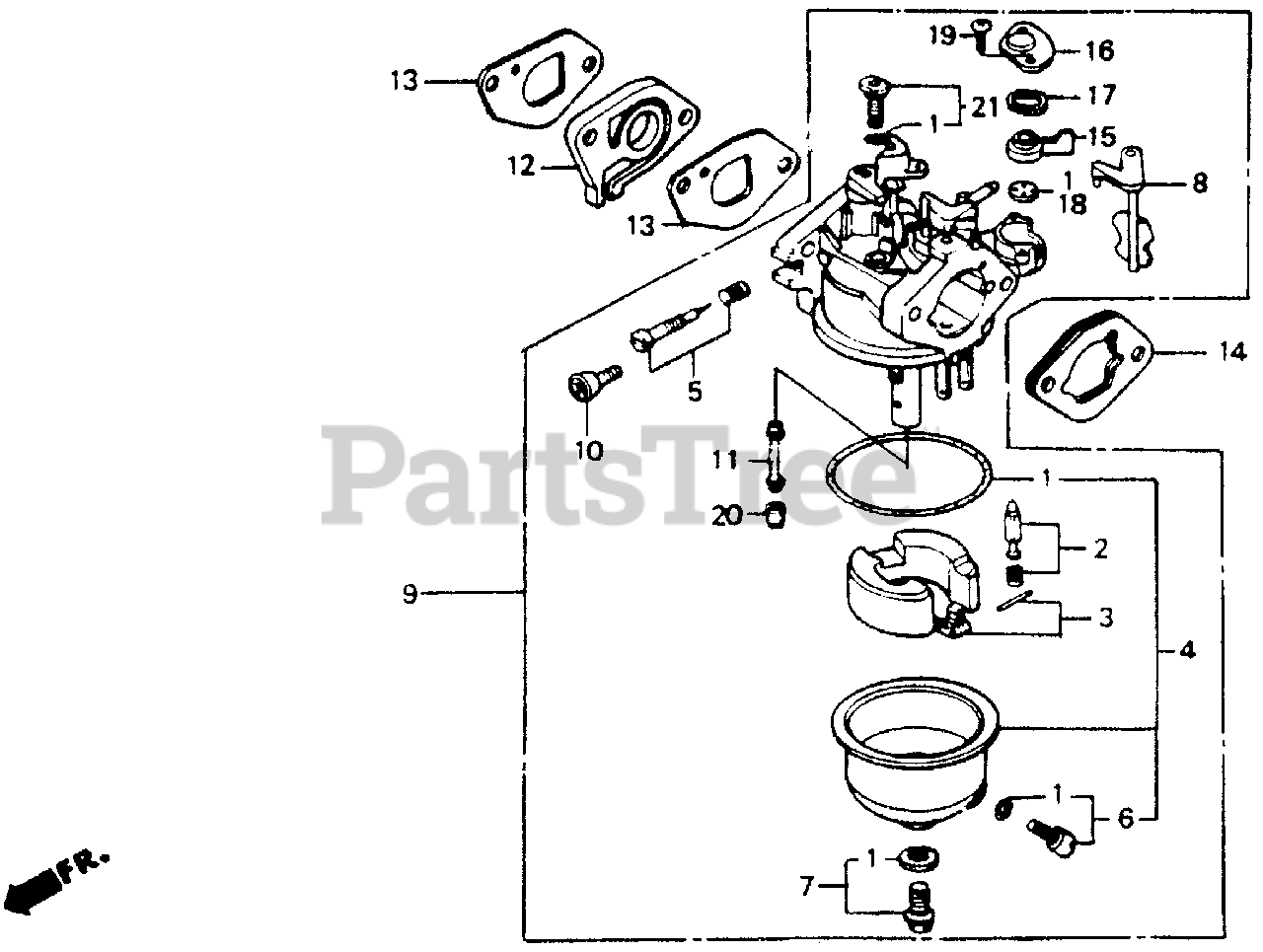

HR214 PXA#2 (HR214) - Honda 21" Walk-Behind Mower, Made in USA (SN: HR214-6235981 - HR214-9999999) CARBURETOR Parts Diagram

21" Walk-Behind Mower, Made in USA

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE0-015

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-ZE0-025)

Note: Use up to Engine SN BE03A F.

$19.99

$

In Stock, only 1 left!

0

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET

Note: Use up to Engine SN BE03A F.

$19.99

$

In Stock, only 1 left!

0

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET

Note: Use from Engine SN BE03A G.

$19.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

$28.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZE0-005

FLOAT SET

$29.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE1-811

CHAMBER SET, FLOAT
(Superseded to 16015-ZE0-831)

$37.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$14.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

8

Honda 16045-ZE6-005

SEE PART DETAILS - PRI; CHOKE SET

$

$

Not available

9

Honda 16100-ZE6-W01

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE56A A)

$104.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE6-025

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE03A D)
(Superseded to 16100-ZE6-W01)

$104.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE6-035

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE03A D/F)
(Superseded to 16100-ZE6-W01)

$104.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE6-045

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE03A G)

$

$

Currently unavailable

9

Honda 16100-ZE6-055

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE03A H)

$

$

Currently unavailable

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZE6-015

NOZZLE, MAIN

$

$

Not available

12

Honda 16211-ZE6-000

INSULATOR, CARBURETOR

$11.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZE6-306

SEE PART DETAILS - SUP; GASKET, INSULATOR
(Superseded to 16212-ZG9-J60)

$3.49

$

In Stock, only 2 left!

0

13

Honda 16212-ZG9-J60

SEE PART DETAILS - PRI; GASKET, INSULATOR

$3.49

$

In Stock, only 2 left!

0

14

Honda 16220-ZE6-010

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$7.99

$

In Stock, only 1 left!

0

15

Honda 16953-ZE6-005

SEE PART DETAILS - SUP; LEVER, VALVE
(Superseded to 16953-ZE6-015)

$8.49

$

In Stock, only 1 left!

0

16

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

17

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, VALVE LEVER

$3.99

$

Usually ships in 3-6 days

0

18

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE
(Superseded to 16957-ZE1-812)

Note: Use up to Engine SN BE03A F.

$4.49

$

In Stock, Qty 7

0

18

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE

Note: Use up to Engine SN BE03A F.

$4.49

$

In Stock, Qty 7

0

18

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE

Note: Use from Engine SN BE03A G.

$4.49

$

In Stock, Qty 7

0

19

Honda 93500-03008-0G

SCREW, PAN (3X8)

Note: Use from Engine SN BE03A G.

$

$

Not available

19

Honda 93500-03008-0H

SCREW, PAN (3X8)

Note: Use up to Engine SN BE03A F.

$0.99

$

In Stock, Qty 8

0

20

Honda 99101-124-0600

JET, MAIN (#60)

$12.99

$

In Stock, Qty 6

0

20

Honda 99101-124-0620

JET, MAIN (#62)

$11.99

$

Usually ships in 3-6 days

0

20

Honda 99101-124-0650

JET, MAIN (#65)

$12.99

$

In Stock, only 2 left!

0

21

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$22.99

$

In Stock, only 1 left!
