HR21 SXA (HR21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-1000001 - HR21-1051093) FUEL TANK + FUEL VALVE Parts Diagram

21" Walk-Behind Mower, Made in Japan

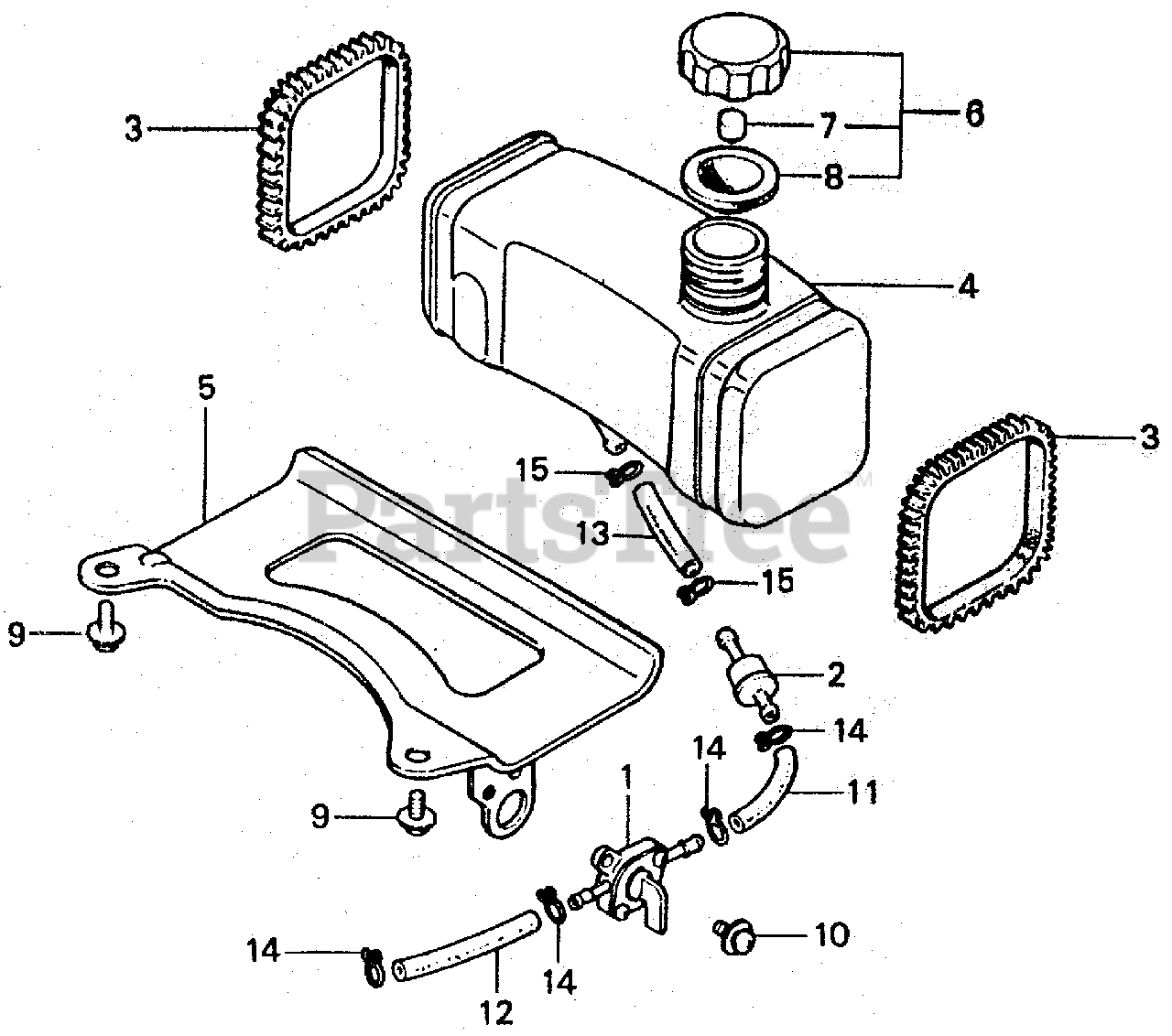

FUEL TANK + FUEL VALVE Parts Diagram

  • Title

1

Honda 16950-888-015

PETCOCK ASSY.

$

$

Not available

2

Honda 16952-952-003

FILTER, FUEL

$16.99

$

Usually ships in 3-6 days

0

3

Honda 17509-952-000

CUSHION, TANK

$

$

Currently unavailable

4

Honda 17510-952-010

TANK, FUEL

$

$

Currently unavailable

5

Honda 17530-952-000

PLATE, TANK

$

$

Not available

6

Honda 17620-888-000

SEE PART DETAILS - SUP; CAP, FUEL TANK
(Superseded to 17620-888-020)

$

$

Not available

6

Honda 17620-888-020

SEE PART DETAILS - PRI; CAP, FUEL TANK

$

$

Not available

7

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 4 left!

0

8

Honda 17624-896-750

SEE PART DETAILS - PRI; GASKET, FUEL CAP

$

$

Not available

9

Honda 93891-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10)

$1.49

$

In Stock, Qty 5

0

10

Honda 93891-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 2 left!

0

11

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X55)

$54.99

$

In Stock, only 3 left!

0

12

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X120)

$54.99

$

In Stock, only 3 left!

0

13

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.5X50)

$70.99

$

In Stock, only 1 left!

0

14

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0

15

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

Usually ships in 3-6 days

0
