HR21 SDA (HR21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-1000001 - HR21-1051093) CUTTER HOUSING + SAFETY GUARD Parts Diagram

21" Walk-Behind Mower, Made in Japan

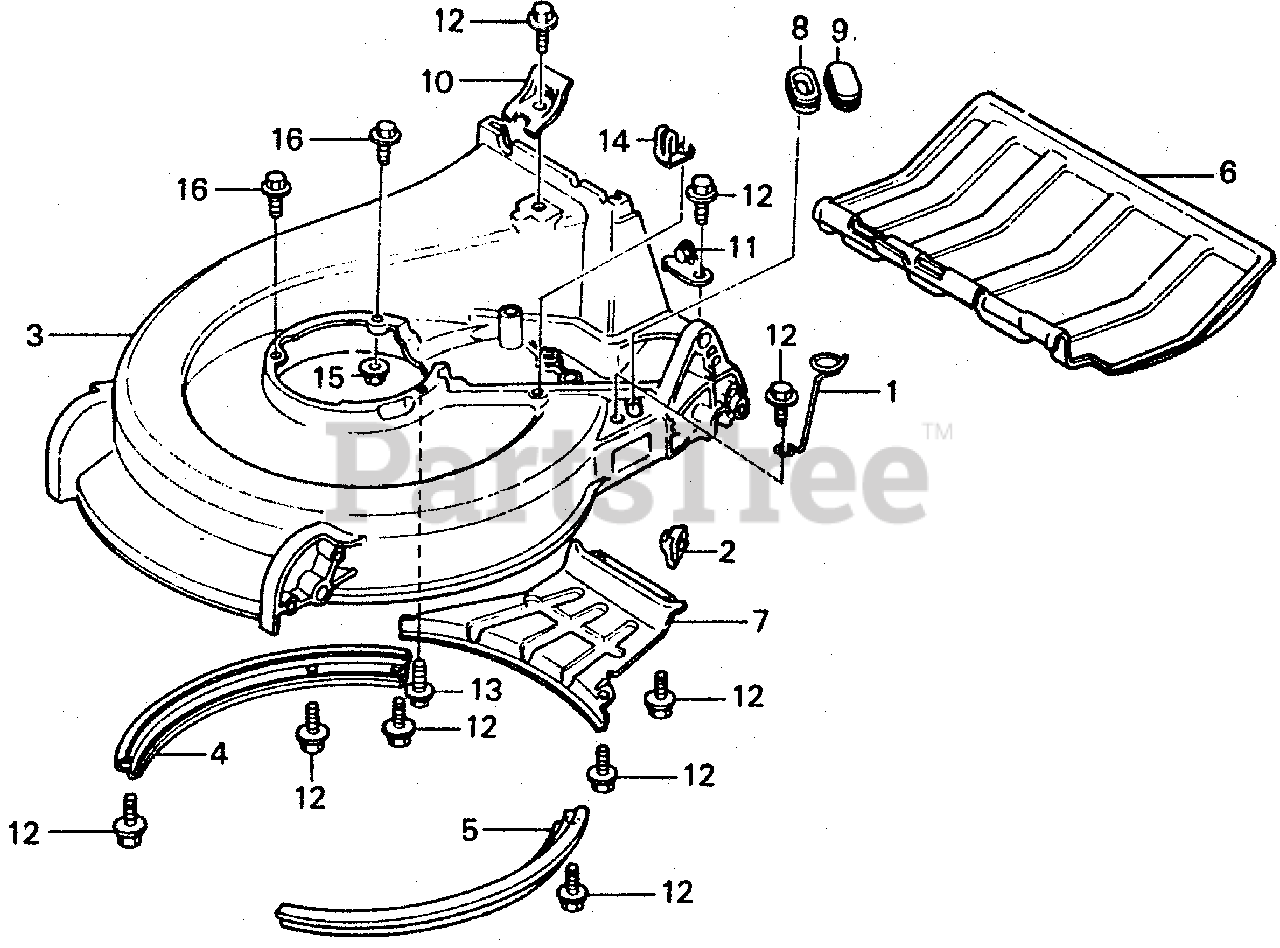

CUTTER HOUSING + SAFETY GUARD Parts Diagram

  • Title

1

Honda 54515-952-000

GUIDE, CABLE

$

$

Currently unavailable

2

Honda 75136-952-000

GROMMET, ROTO-STOP CABLE

$

$

Not available

3

Honda 76111-952-771T

HOUSING, CUTTER *NH2M* (METALLIC SILVER)

$

$

Currently unavailable

3

Honda 76111-952-772T

HOUSING, CUTTER *NH2M* (METALLIC SILVER)

$

$

Currently unavailable

4

Honda 76115-952-000

GUARD, R. SAFETY

$19.99

$

Usually ships in 3-6 days

0

5

Honda 76116-952-000

GUARD, L. SAFETY

$

$

Not available

6

Honda 76118-952-000

SHIELD, SAFETY

$41.99

$

Usually ships in 3-6 days

0

7

Honda 76151-952-000

GUIDE, SCROLL

$

$

Currently unavailable

9

Honda 76231-952-770

GROMMET, CABLE

$5.99

$

Usually ships in 3-6 days

0

10

Honda 81166-952-000

PLATE, HOOK

$6.99

$

Usually ships in 3-6 days

0

11

Honda 81167-952-000

STAY, PANEL

$

$

Not available

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

14

Honda 91405-671-000

CLIP, CABLE

$12.99

$

Usually ships in 3-6 days

0

15

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

16

Honda 95700-08040-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X40)
(Superseded to 95701-08040-00)

$1.99

$

In Stock, Qty 6

0

16

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 6

0
