HR21 SDA (HR21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-1000001 - HR21-1051093) AIR CLEANER (SNORKEL) Parts Diagram

21" Walk-Behind Mower, Made in Japan

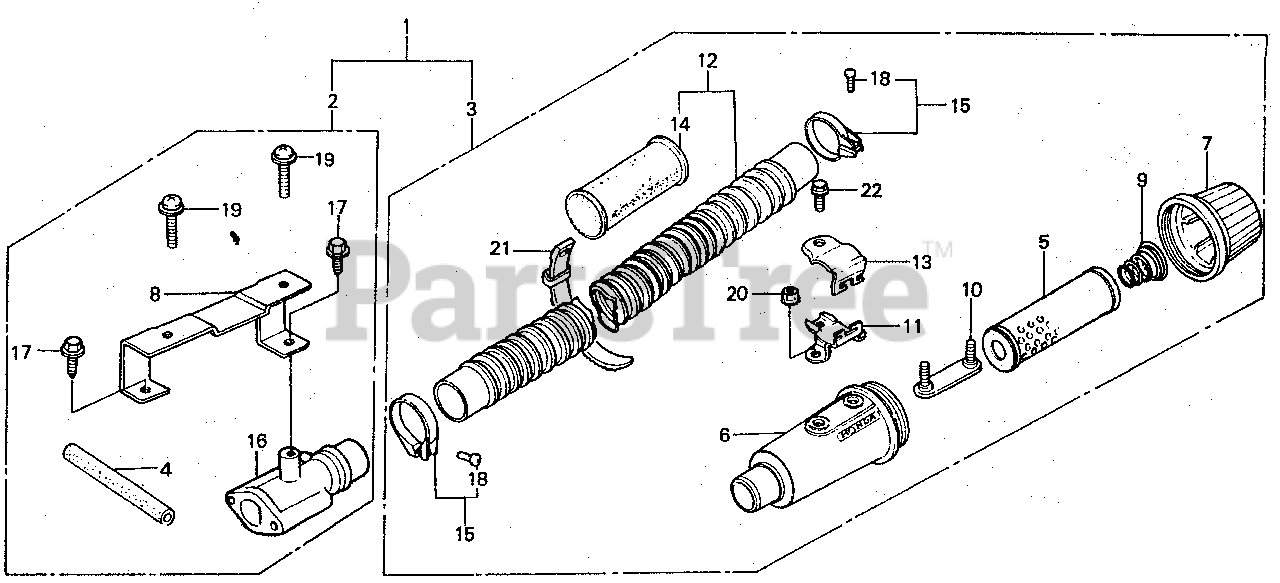

AIR CLEANER (SNORKEL) Parts Diagram

  • Title

1

Honda 06170-952-810

AIR CLEANER KIT, SNORKEL JOINT

$

$

Currently unavailable

2

Honda 06171-888-811

JOINT KIT, SNORKEL AIR CLEANER (N/A: SEE COMPONENTS)

$

$

Currently unavailable

3

Honda 06172-952-810

AIR CLEANER KIT, SNORKEL (N/A: SEE COMPONENTS)

$

$

Currently unavailable

4

Honda 15721-888-810

TUBE, BREATHER

$

$

Not available

5

Honda 17211-888-692

ELEMENT, AIR CLEANER

$

$

Not available

6

Honda 17220-888-691

HOUSING, AIR CLEANER

$73.99

$

Usually ships in 3-6 days

0

7

Honda 17231-888-691

CAP, AIR CLEANER

$

$

Not available

8

Honda 17232-888-690

STAY, CARBURETOR COVER

$

$

Not available

9

Honda 17233-888-691

SPRING, SETTING

$

$

Not available

10

Honda 17234-888-691

PLATE, AIR CLEANER SETTING

$15.99

$

Usually ships in 3-6 days

0

11

Honda 17236-952-810

BRACKET A, AIR CLEANER

$

$

Not available

12

Honda 17237-952-691

HOSE, AIR CLEANER

$

$

Not available

13

Honda 17239-888-690

BRACKET B, AIR CLEANER

$8.99

$

Usually ships in 3-6 days

0

14

Honda 17239-952-690

PROTECTOR, HOSE

$

$

Not available

15

Honda 95018-34250

SEE PART DETAILS - PRI; BAND, AIR CLEANER CONNECTING TUBE (34)

$12.99

$

Usually ships in 3-6 days

0

16

Honda 17411-888-810

JOINT, TUBE CONNECTING

$

$

Not available

17

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

18

Honda 93500-04025-0A

SCREW, PAN (4X25)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 93891-06025-08

SCREW-WASHER (6X25) (NOT AVAILABLE)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 95014-62300

BAND B3, CABLE HARNESS

$2.99

$

Usually ships in 3-6 days

0

22

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, only 3 left!

0
