HR21 PXA (HR21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-1000001 - HR21-1051093) AIR CLEANER Parts Diagram

21" Walk-Behind Mower, Made in Japan

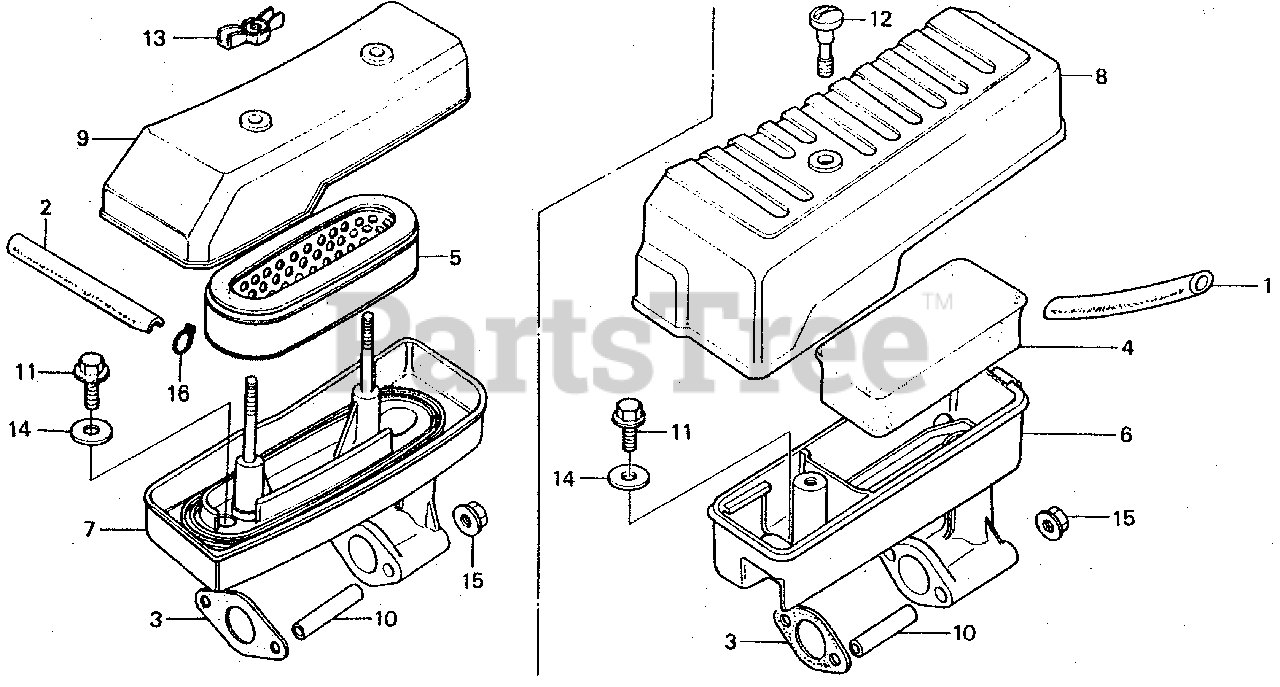

AIR CLEANER Parts Diagram

  • Title
1

Honda 15721-732-000

TUBE, BREATHER

Note: Use up to Engine SN 2047595.

$

$

Not available

1

Honda 15721-888-692

TUBE, BREATHER

Note: Use from Engine SN 2047596 to 2080722.

$

$

Currently unavailable

2

Honda 15721-888-693

TUBE, BREATHER (NOT AVAILABLE)

Note: Use from Engine SN 2080723.

$

$

Not available

3

Honda 16269-883-800

GASKET, AIR CLEANER

$1.99

$

In Stock, Qty 10

0

4

Honda 17211-888-000

ELEMENT, AIR CLEANER

Note: Use up to Engine SN 2080722.

$13.99

$

Usually ships in 3-6 days

0

5

Honda 17210-ZE6-003

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-ZE6-305)

Note: Use from Engine SN 2080723.

$20.99

$

In Stock, only 3 left!

0

5

Honda 17210-ZE6-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

Note: Use from Engine SN 2080723.

$

$

Not available

6

Honda 17220-888-000

HOUSING, AIR CLEANER

Note: Use up to Engine SN 2055336.

$

$

Currently unavailable

6

Honda 17220-888-010

HOUSING, AIR CLEANER (NOT AVAILABLE)

Note: Use from Engine SN 2055337 to 2080722.

$

$

Not available

7

Honda 17220-888-020

HOUSING, AIR CLEANER

Note: Use from Engine SN 2080723.

$

$

Not available

8

Honda 17231-888-000B

COVER, AIR CLEANER *NH1* (BLACK) (NOT AVAILABLE)

Note: Use up to Engine SN 2080722.

$

$

Currently unavailable

9

Honda 17231-888-010B

SEE PART DETAILS - SUP; COVER, AIR CLEANER *NH1* (BLACK)

Note: Use from Engine SN 2080723.

$

$

Currently unavailable

10

Honda 17238-888-000

COLLAR, AIR CLEANER HOUSING

$

$

Not available

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

12

Honda 90028-888-000

BOLT, AIR CLEANER COVER (NOT AVAILABLE)

Note: Use up to Engine SN 2080722.

$

$

Not available

13

Honda 90203-PB2-000

WINGNUT, AIR CLEANER COVER

Note: Use from Engine SN 2080723.

$10.99

$

In Stock, only 3 left!

0

14

Honda 90522-034-000

WASHER, HEADLIGHT CASE

$

$

Not available

15

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

16

Honda 95002-02130

CLIP, TUBE (B12.5)

Note: Use from Engine SN 2080723.

$1.49

$

In Stock, Qty 5

0
