HR21 PDA (HR21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-1000001 - HR21-1051093) CONTROL LEVER + GOVERNOR Parts Diagram

21" Walk-Behind Mower, Made in Japan

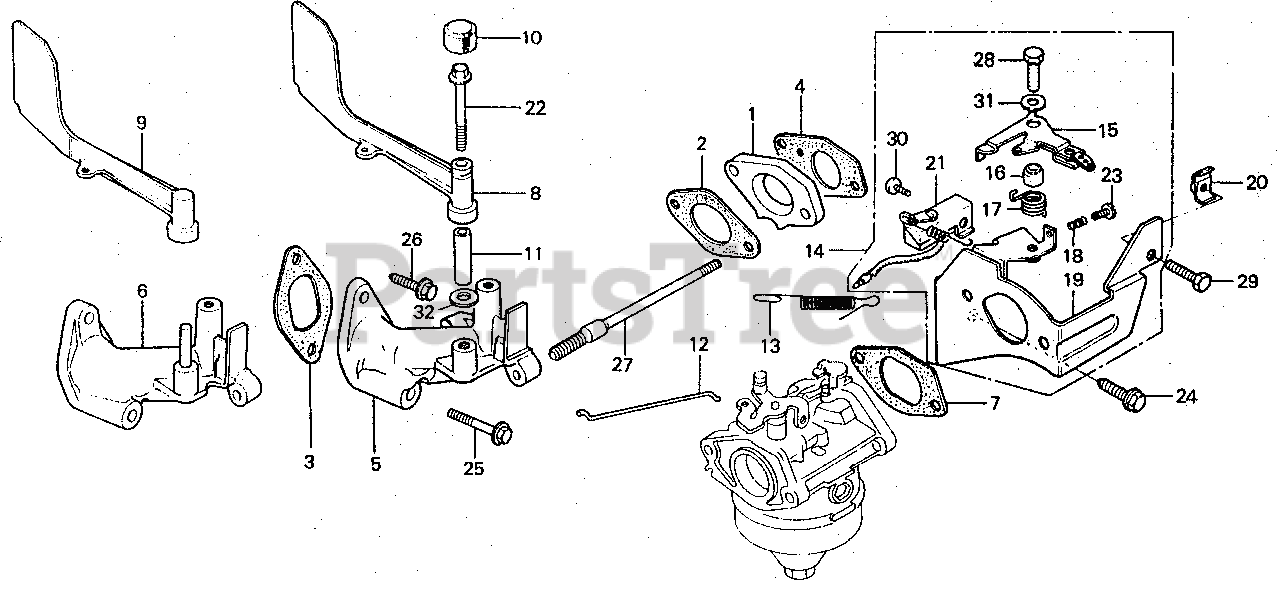

CONTROL LEVER + GOVERNOR Parts Diagram

  • Title

1

Honda 16211-887-000

INSULATOR, CARBURETOR

$15.99

$

Usually ships in 3-6 days

0

2

Honda 16212-887-306

GASKET, INSULATOR

$3.49

$

Usually ships in 3-6 days

0

3

Honda 16220-888-306

GASKET, MANIFOLD

$

$

Not available

4

Honda 16221-883-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-887-800)

$3.49

$

In Stock, Qty 20+

0

4

Honda 16221-887-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$3.49

$

In Stock, Qty 20+

0

5

Honda 16224-888-020

SEE PART DETAILS - SUP; MANIFOLD, IN.

$

$

Not available

7

Honda 16269-883-800

GASKET, AIR CLEANER

$1.99

$

In Stock, Qty 10

0

8

Honda 16512-888-020

FLUTTER, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 16555-888-010

ROD, GOVERNOR (NOT AVAILABLE)

$

$

Not available

13

Honda 16561-888-020

SPRING, GOVERNOR

$

$

Not available

14

Honda 16570-952-020

CONTROL ASSY.

Note: Use up to Engine SN 2068862.

$

$

Not available

14

Honda 16570-952-030

CONTROL ASSY.

Note: Use from Engine SN 2068863.

$

$

Not available

15

Honda 16571-952-320

LEVER, CONTROL (NOT AVAILABLE)

Note: Use up to Engine SN 2068862.

$

$

Currently unavailable

15

Honda 16571-952-330

LEVER, CONTROL

Note: Use from Engine SN 2068863.

$

$

Not available

16

Honda 16574-952-300

COLLAR, LEVER SETTING

$

$

Not available

17

Honda 16575-952-310

SPRING, RETURN

$

$

Not available

18

Honda 16576-952-000

SPRING, STOPPER LEVER

$

$

Not available

19

Honda 17235-952-320

STAY, CLEANER CASE

$

$

Not available

20

Honda 17251-952-000

HOLDER, WIRE

$

$

Not available

21

Honda 36100-952-752

SWITCH ASSY., ENGINE STOP

$20.99

$

Usually ships in 3-6 days

0

23

Honda 90012-952-000

BOLT (4X20)

$

$

Currently unavailable

24

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

25

Honda 90014-888-000

BOLT, FLANGE (6X50)

$5.49

$

Usually ships in 3-6 days

0

26

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 2 left!

0

27

Honda 90043-888-000

BOLT, STUD (6X141) (NOT AVAILABLE)

$

$

Currently unavailable

28

Honda 92101-05020-0A

BOLT, HEX. (5X20)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 92101-06014-0A

BOLT, HEX. (6X14)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

31

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0
