HR21 K2 SXAM (R21K2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K2-1200141 - HR21K2-9999999) GEAR CASE@CLUTCH ARM Parts Diagram

21" Walk-Behind Mower, Made in Japan

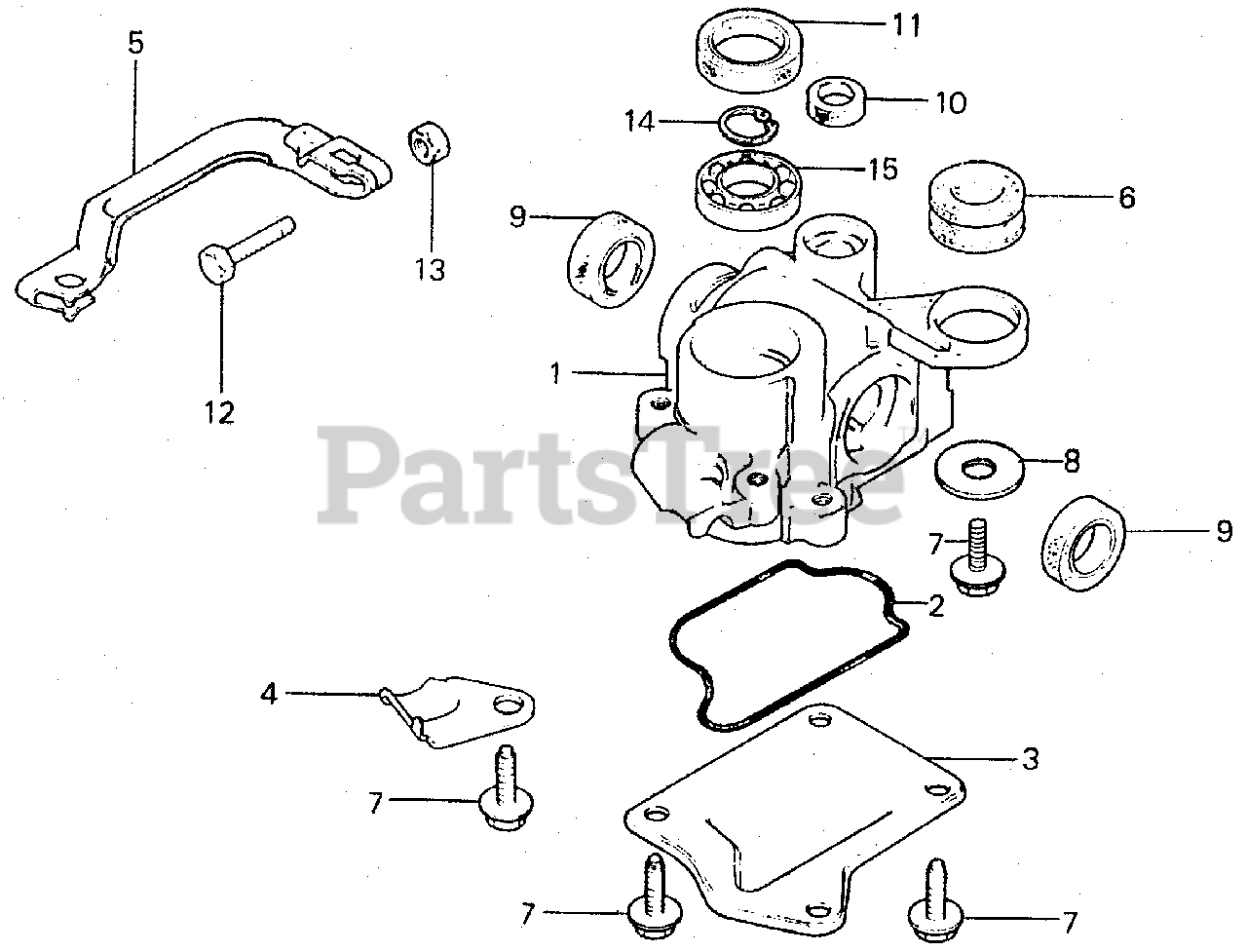

GEAR CASE@CLUTCH ARM Parts Diagram

  • Title

1

Honda 21511-VA9-H40

CASE, GEAR (UPPER)

$

$

Not available

1

Honda 21511-960-711

CASE, GEAR (UPPER)
(Superseded to 21511-VA9-H40)

$

$

Not available

2

Honda 21581-952-770

O-RING, CASE

$6.49

$

Usually ships in 3-6 days

0

3

Honda 21611-952-770

COVER, GEAR CASE

$

$

Not available

4

Honda 22535-952-770

HOLDER, WIRE (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 23436-952-770

SEE PART DETAILS - SUP; ARM, CLUTCH
(Superseded to 23436-952-771)

$11.99

$

Usually ships in 3-6 days

0

5

Honda 23436-952-771

SEE PART DETAILS - PRI; ARM, CLUTCH

$11.99

$

Usually ships in 3-6 days

0

6

Honda 23438-960-770

MOUNT, RUBBER

$4.99

$

Usually ships in 3-6 days

0

7

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

8

Honda 90501-040-000

WASHER, SEAT (NOT AVAILABLE)

$

$

Not available

9

Honda 91201-965-000

SEE PART DETAILS - PRI; OIL SEAL (12X22X5)

$5.99

$

Usually ships in 3-6 days

0

10

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

$5.49

$

In Stock, Qty 11

0

10

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5) (Honda Code 0744326).
(Superseded to 91201-ZE9-003)

$5.49

$

In Stock, Qty 11

0

11

Honda 91204-952-772

OIL SEAL (18X38X6) (NOT AVAILABLE)

$8.49

$

Usually ships in 3-6 days

0

12

Honda 92101-06020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X20) (Honda Code 2528925).

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM) (Honda Code 0156067).
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

13

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 2043255).

$1.99

$

In Stock, Qty 20+

0

14

Honda 94520-28000

CIRCLIP (INNER) (28MM)

$1.99

$

In Stock, Qty 5

0

15

Honda 96100-60010-00

BEARING, RADIAL BALL (6001)

$23.99

$

Usually ships in 3-6 days

0
