HR21 K2 SXA (R21K2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K2-1200141 - HR21K2-9999999) SAFETY GUARD Parts Diagram

21" Walk-Behind Mower, Made in Japan

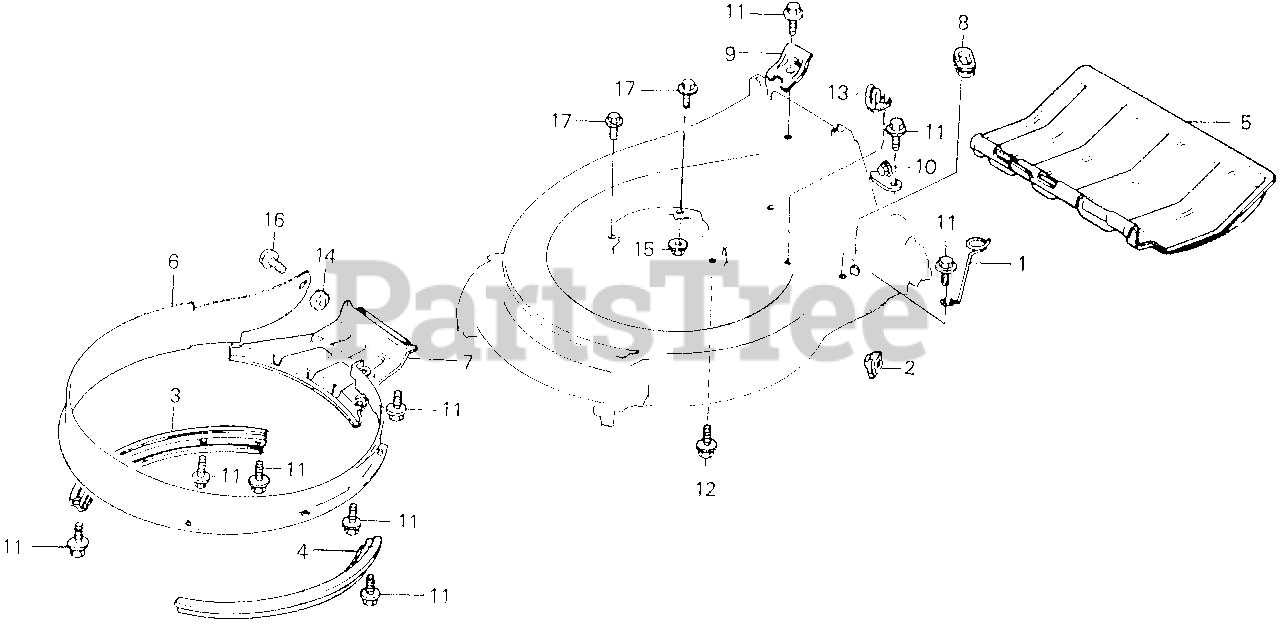

SAFETY GUARD Parts Diagram

  • Title

1

Honda 54515-952-000

GUIDE, CABLE (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 75136-952-000

GROMMET, ROTO-STOP CABLE

$

$

Not available

3

Honda 76115-952-000

GUARD, R. SAFETY

$19.99

$

Usually ships in 3-6 days

0

4

Honda 76116-952-000

GUARD, L. SAFETY (NOT AVAILABLE)

$

$

Not available

5

Honda 76118-952-000

SHIELD, SAFETY (NOT AVAILABLE)

$41.99

$

Usually ships in 3-6 days

0

6

Honda 76140-960-010

LINE (INNER) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

7

Honda 76151-952-000

GUIDE, SCROLL (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 76231-952-770

GROMMET, CABLE

$5.99

$

Usually ships in 3-6 days

0

9

Honda 81166-952-000

PLATE, HOOK

$6.99

$

Usually ships in 3-6 days

0

10

Honda 81167-952-000

STAY, PANEL

$

$

Not available

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

12

Honda 90108-952-000

BOLT, FLANGE UNF (5/16-24)

$

$

Not available

13

Honda 91405-671-000

CLIP, WIRE

$12.99

$

Usually ships in 3-6 days

0

14

Honda 94050-06080

NUT, FLANGE (6MM)

Note: (Optional).

$0.99

$

In Stock, only 3 left!

0

15

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

16

Honda 95701-06016-08

BOLT, FLANGE (6X16)

Note: (Optional).

$1.99

$

In Stock, Qty 5

0

17

Honda 95700-08040-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X40) (NOT AVAILABLE)
(Superseded to 95701-08040-00)

$1.99

$

In Stock, Qty 20+

0

17

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0
