HR21 K2 SXA (R21K2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K2-1200141 - HR21K2-9999999) CRANKSHAFT + PISTON Parts Diagram

21" Walk-Behind Mower, Made in Japan

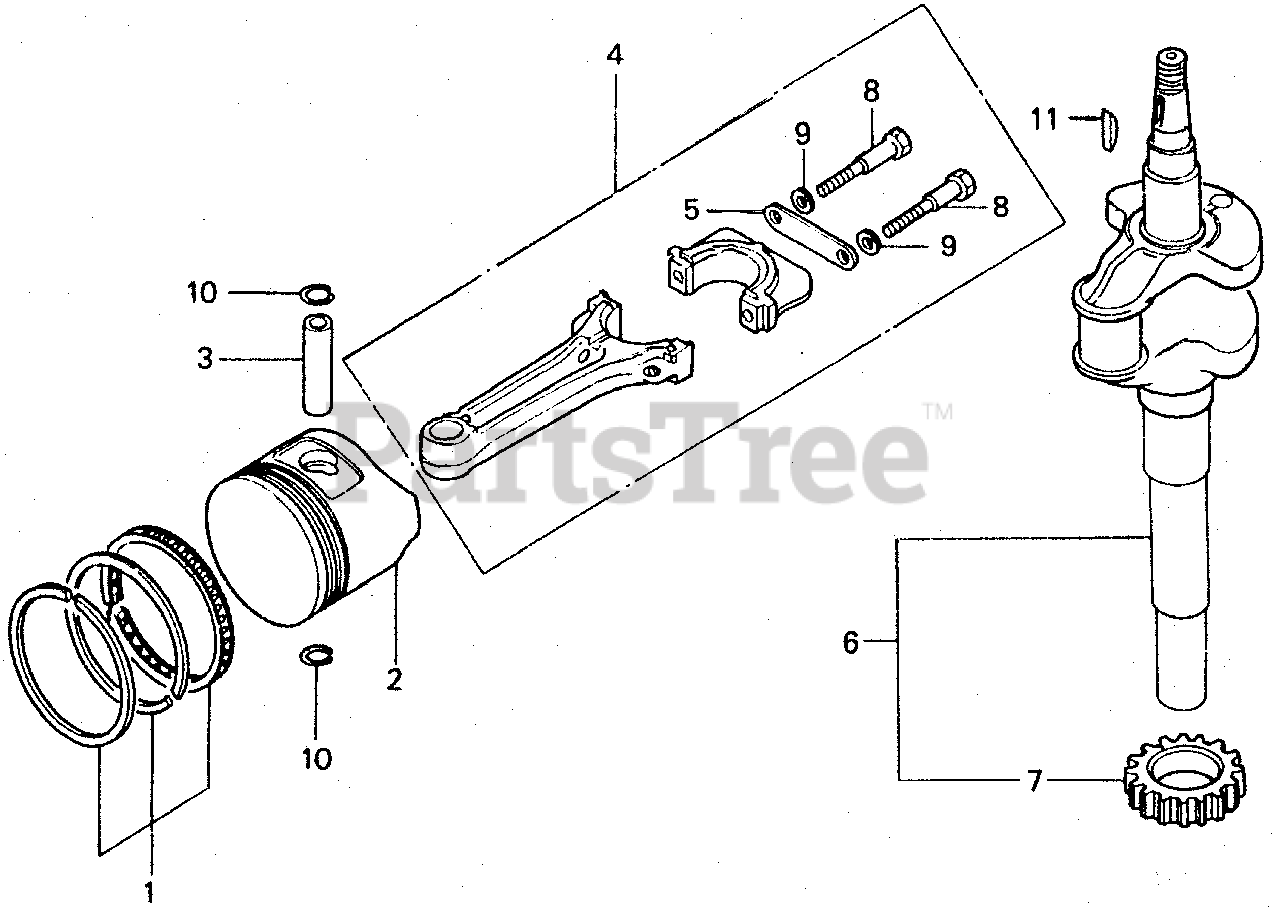

CRANKSHAFT + PISTON Parts Diagram

  • Title

1

Honda 13010-887-000

RING SET, PISTON (STD)

$37.99

$

In Stock, only 1 left!

0

1

Honda 13011-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (0.25) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

1

Honda 13012-887-000

RING SET, PISTON (0.50) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

1

Honda 13013-887-000

RING SET, PISTON (0.75) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

2

Honda 13101-887-003

PISTON (STD)

$93.99

$

Usually ships in 3-6 days

0

2

Honda 13102-887-000

PISTON (0.25)

Note: (Optional).

$

$

Not available

2

Honda 13103-887-000

PISTON (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-887-000

PISTON (0.75) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

3

Honda 13111-883-000

PIN, PISTON

$12.99

$

In Stock, only 1 left!

0

4

Honda 13200-888-030

ROD ASSY., CONNECTING

$

$

Not available

4

Honda 13200-888-335

ROD ASSY., CONNECTING (UNDER SIZE) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

5

Honda 13281-888-000

WASHER, CONNECTING ROD

$2.99

$

Usually ships in 3-6 days

0

6

Honda 13310-952-000

CRANKSHAFT (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 14311-888-300

GEAR, TIMING

$

$

Not available

8

Honda 90001-883-020

BOLT, CONNECTING ROD (7MM)

$4.49

$

Usually ships in 3-6 days

0

9

Honda 90432-889-003

WASHER, LOCK (7MM)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 90551-883-000

SEE PART DETAILS - SUP; CLIP, PISTON PIN (15MM)
(Superseded to 94601-15000)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$5.49

$

In Stock, only 4 left!

0
