HR21 K2 SXA (R21K2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K2-1200141 - HR21K2-9999999) 21K2 OIL PAN Parts Diagram

21" Walk-Behind Mower, Made in Japan

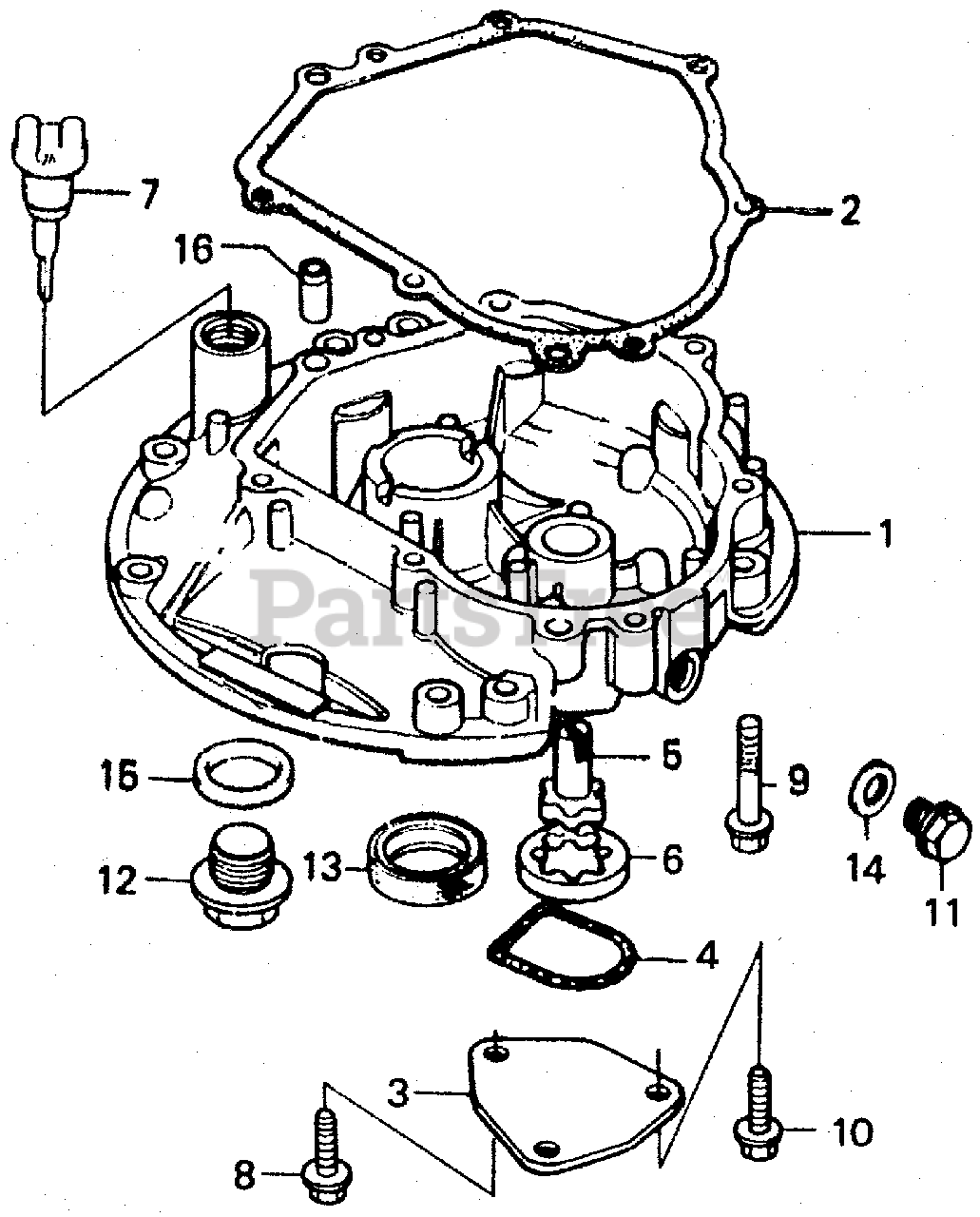

21K2 OIL PAN Parts Diagram

  • Title

1

Honda 11310-888-020

PAN, OIL

$

$

Not available

2

Honda 11381-888-307

GASKET, OIL PAN

$

$

Not available

3

Honda 15130-888-010

COVER, OIL PUMP

$11.99

$

Usually ships in 3-6 days

0

4

Honda 15131-888-010

O-RING, PUMP COVER (NOT AVAILABLE)

$4.99

$

Usually ships in 3-6 days

0

5

Honda 15330-888-000

ROTOR (INNER) (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 15332-115-000

ROTOR, OIL PUMP (OUTER)

$

$

Not available

7

Honda 15620-888-010

CAP, OIL FILLER (NOT AVAILABLE)

$

$

Not available

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

9

Honda 90017-883-000

BOLT, FLANGE (6X32) (CT200)

$3.49

$

In Stock, only 2 left!

0

10

Honda 90029-888-000

BOLT, FLANGE (6X16) (CT200)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12X15)

$5.49

$

In Stock, Qty 11

0

12

Honda 90131-888-010

BOLT, OIL DRAIN (NOT AVAILABLE)

$

$

Not available

13

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$9.49

$

In Stock, Qty 13

0

13

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$9.49

$

In Stock, Qty 13

0

14

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, only 3 left!

0

16

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0
