HR21 K2 SXA (R21K2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K2-1200141 - HR21K2-9999999) 21K2 MUFFLER Parts Diagram

21" Walk-Behind Mower, Made in Japan

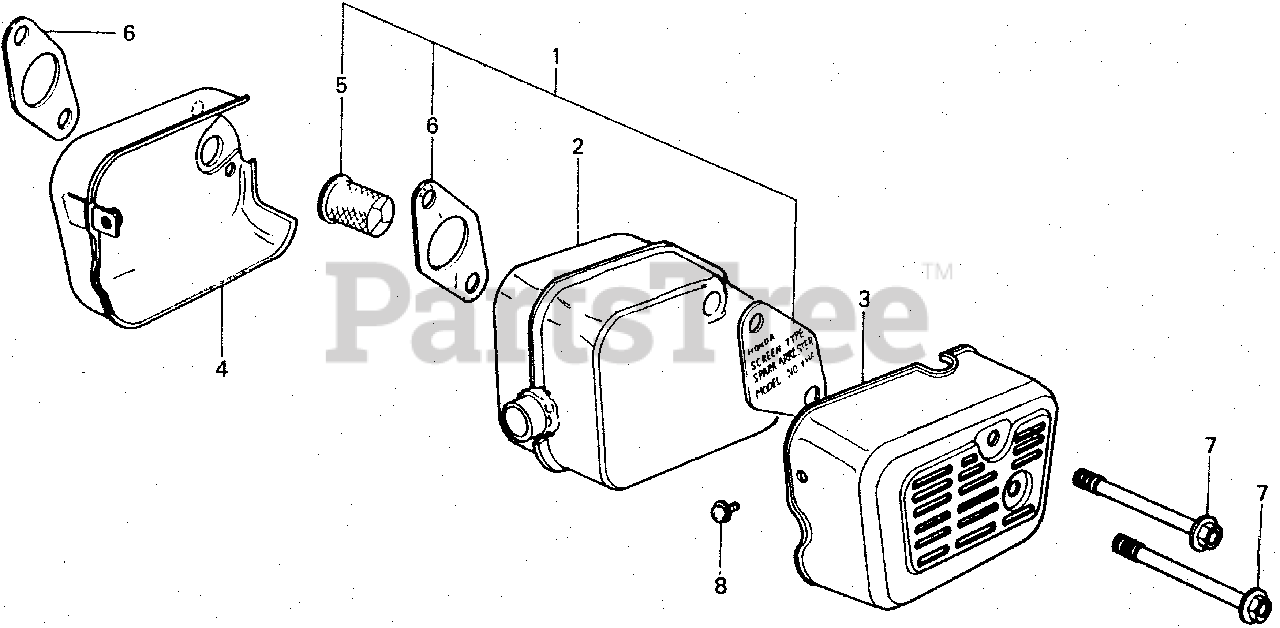

21K2 MUFFLER Parts Diagram

  • Title
1

Honda 06180-888-505

ARRESTER KIT, SPARK

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

$

$

Currently unavailable

3

Honda 18320-952-000

PROTECTOR, MUFFLER

$

$

Not available

4

Honda 18330-952-000

SEPARATOR, MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 06180-888-505

ARRESTER KIT, SPARK

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

6

Honda 18381-883-800

GASKET, MUFFLER

$4.99

$

Usually ships in 3-6 days

0

7

Honda 90011-952-000

BOLT, FLANGE (8X100)

$

$

Not available

8

Honda 93891-05010-08

SCREW-WASHER (5X10)

$1.49

$

In Stock, Qty 5

0
