HR21 K2 PDAM (R21K2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K2-1200141 - HR21K2-9999999) OIL PAN Parts Diagram

21" Walk-Behind Mower, Made in Japan

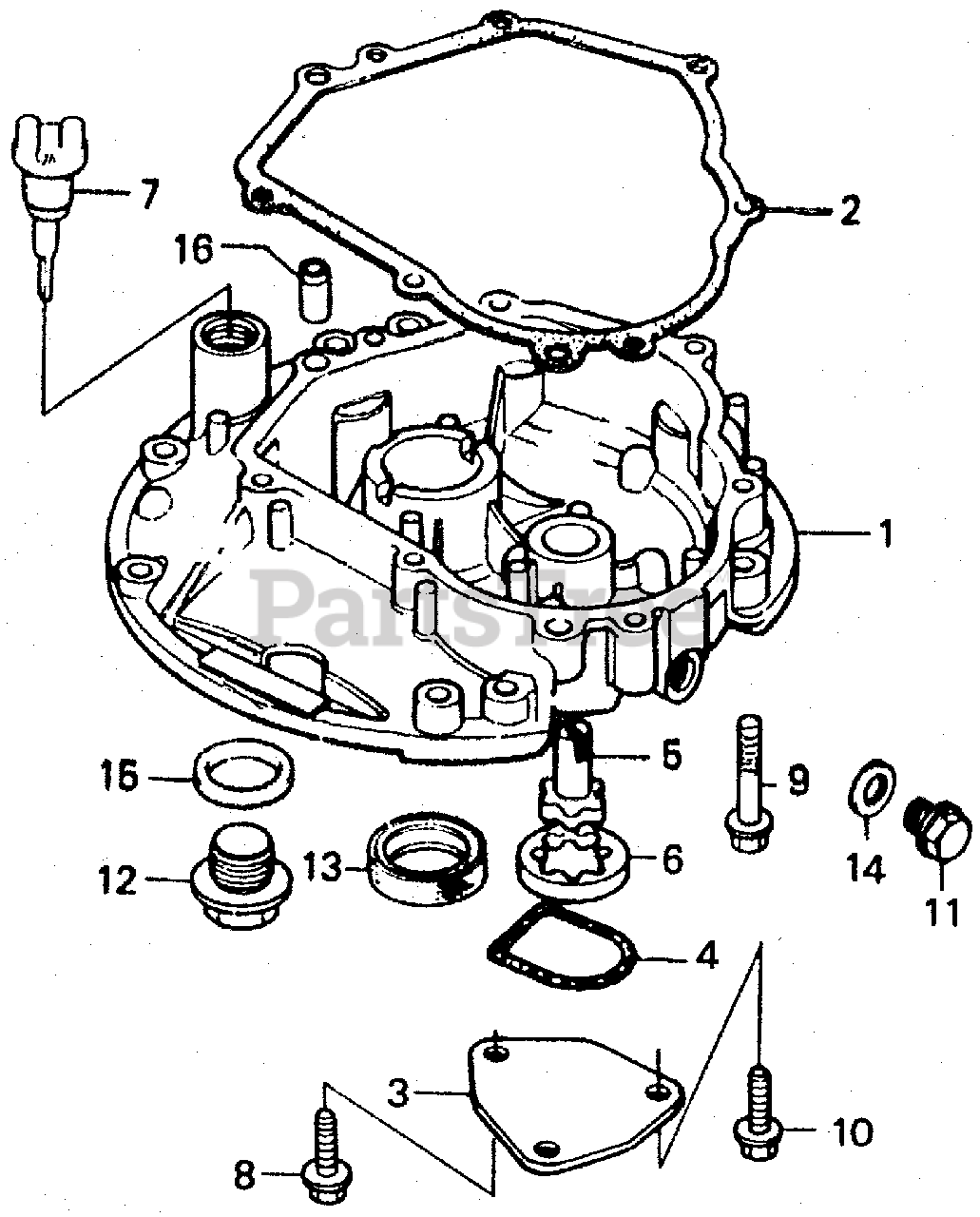

OIL PAN Parts Diagram

  • Title

1

Honda 11310-888-020

PAN, OIL (Honda Code 0905570).

$

$

Not available

2

Honda 11381-888-307

SEE PART DETAILS - PRI; GASKET, OIL PAN (Honda Code 4414868).

$

$

Not available

3

Honda 15130-888-010

COVER, OIL PUMP (Honda Code 0821041).

$10.99

$

Usually ships in 3-6 days

0

4

Honda 15131-888-010

O-RING, COVER (Honda Code 0821058).

$4.49

$

Usually ships in 3-6 days

0

5

Honda 15330-888-000

ROTOR (INNER) (Honda Code 0671859).

$

$

Currently unavailable

6

Honda 15332-115-000

ROTOR, OIL PUMP (OUTER) (Honda Code 0307751).

$

$

Not available

7

Honda 15620-888-010

SEE PART DETAILS - PRI; CAP, OIL FILLER (Honda Code 0747725).

$

$

Not available

8

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

9

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

$3.49

$

In Stock, only 1 left!

0

10

Honda 90029-888-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 0747733).

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, Qty 12

0

12

Honda 90131-888-010

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 0747741).

$

$

Not available

13

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6) (Honda Code 0636936).
(Superseded to 91201-Z0T-801)

$8.99

$

Usually ships in 3-6 days

0

14

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 12

0

15

Honda 94109-20000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (20MM) (Honda Code 0251728).

$1.99

$

In Stock, only 4 left!

0

16

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0
