HR21 K2 PDAM (R21K2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K2-1200141 - HR21K2-9999999) CUTTER HOUSING@DISCHARGE GUARD@BELT COVER Parts Diagram

21" Walk-Behind Mower, Made in Japan

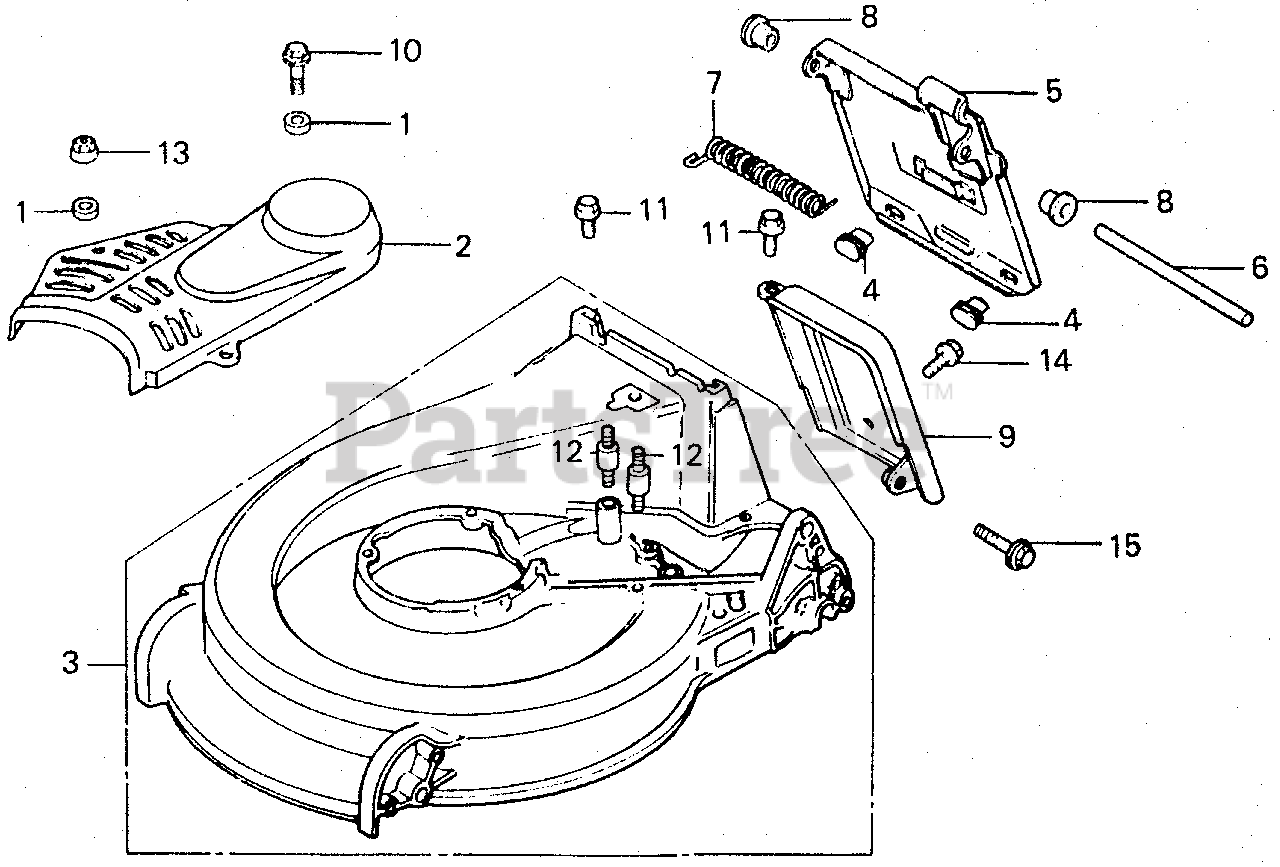

CUTTER HOUSING@DISCHARGE GUARD@BELT COVER Parts Diagram

  • Title

1

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

2

Honda 63611-952-000

COVER, BELT

$

$

Not available

3

Honda 76111-960-774T

HOUSING, CUTTER *NH2M* (METALLIC SILVER)

$

$

Not available

4

Honda 76122-952-000

STOPPER, DISCHARGE GUARD Use up to Frame SN 1186736.

$4.99

$

In Stock, only 2 left!

0

5

Honda 76311-952-010

GUARD, DISCHARGE

$80.99

$

Usually ships in 3-6 days

0

6

Honda 76312-952-000

SHAFT, DISCHARGE GUARD (NOT AVAILABLE)

$

$

Not available

7

Honda 76314-952-010

SPRING, GUARD RETURN (NOT AVAILABLE)

$8.49

$

Usually ships in 3-6 days

0

8

Honda 76317-952-000

BUSH, DISCHARGE GUARD

$4.99

$

Usually ships in 3-6 days

0

9

Honda 81151-952-000T

PANEL, BAG OPEN *NH2M* (METALLIC SILVER)

$61.99

$

Usually ships in 3-6 days

0

10

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

11

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200) (Honda Code 0671552).

$2.99

$

In Stock, only 2 left!

0

12

Honda 90045-892-000

BOLT, STUD (6X28) (CT200)

$5.49

$

Usually ships in 3-6 days

0

13

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

14

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

15

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831).

$2.49

$

In Stock, Qty 8

0
