HR21 K1 SDA (R21K1) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K1-1100004 - HR21K1-1127597) TENSIONER ARM + V-BELT Parts Diagram

21" Walk-Behind Mower, Made in Japan

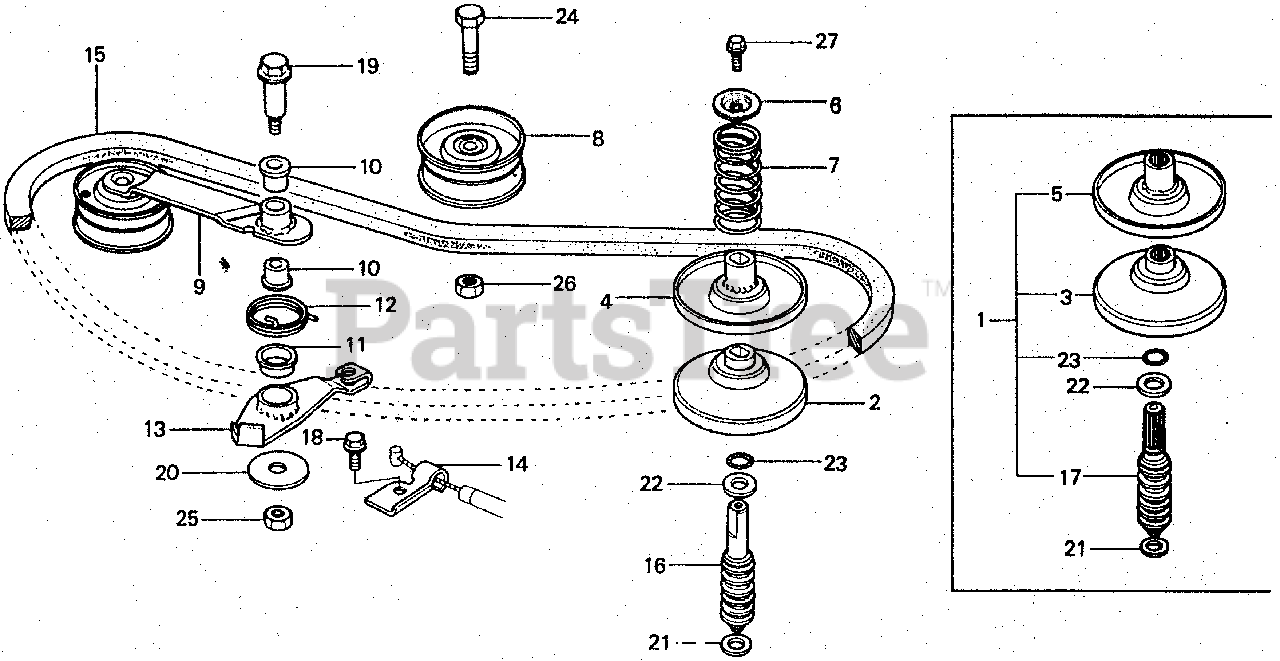

TENSIONER ARM + V-BELT Parts Diagram

  • Title

1

Honda 06221-960-305

SEE PART DETAILS - PRI; PULLEY KIT, DRIVE

$

$

Not available

2

Honda 22110-952-771

SEE PART DETAILS - SUP; FACE, DRIVEN

$

$

Not available

3

Honda 22110-960-771

FACE, DRIVEN

$33.99

$

Usually ships in 3-6 days

0

4

Honda 22120-952-771

SEE PART DETAILS - SUP; FACE, MOVABLE DRIVEN
(Superseded to 06221-960-305)

$

$

Not available

5

Honda 22120-960-770

FACE, MOVABLE DRIVEN (NOT AVAILABLE)

$27.99

$

Usually ships in 3-6 days

0

6

Honda 22124-952-770

SEAT, SPRING

$

$

Currently unavailable

7

Honda 22125-952-770

SPRING, DRIVEN FACE

$7.49

$

Usually ships in 3-6 days

0

8

Honda 04401-960-770

SEE PART DETAILS - PRI; ROLLER

$

$

Not available

9

Honda 22520-960-770

ARM, TENSIONER

$

$

Not available

10

Honda 22524-952-770

BUSH, TENSIONER ARM

$10.99

$

Usually ships in 3-6 days

0

11

Honda 22525-952-770

BUSH, CHANGE ARM

$

$

Not available

12

Honda 22526-952-770

SPRING, TENSIONER ARM (NOT AVAILABLE)

$5.99

$

Usually ships in 3-6 days

0

13

Honda 22531-952-770

ARM, CHANGE (NOT AVAILABLE)

$14.99

$

Usually ships in 3-6 days

0

14

Honda 22536-952-770

HOLDER, CHANGE WIRE (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 23161-952-771

SEE PART DETAILS - PRI; V-BELT (35)

$37.99

$

Usually ships in 3-6 days

0

16

Honda 06221-960-305

SEE PART DETAILS - PRI; PULLEY KIT, DRIVE

$

$

Not available

16

Honda 23411-952-770

SEE PART DETAILS - SUP; GEAR, DRIVE
(Superseded to 06221-960-305)

$

$

Not available

17

Honda 23411-960-770

GEAR, DRIVE

$

$

Not available

18

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

19

Honda 90104-952-770

BOLT, TENSIONER ARM

$5.99

$

Usually ships in 3-6 days

0

20

Honda 90401-952-770

WASHER, PLAIN (8MM) (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 90443-844-000

WASHER (8MM) (NOT AVAILABLE)

$0.99

$

Usually ships in 3-6 days

0

22

Honda 90459-107-000

WASHER, THRUST (12MM)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 91205-952-771

O-RING (11.7X1.2)

$

$

Not available

24

Honda 92101-10028-0A

BOLT, HEX. (10X28)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 6

0

26

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

27

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

27

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
