HR21 K1 PDA (R21K1) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K1-1100004 - HR21K1-1127597) ROTO-STOP Parts Diagram

21" Walk-Behind Mower, Made in Japan

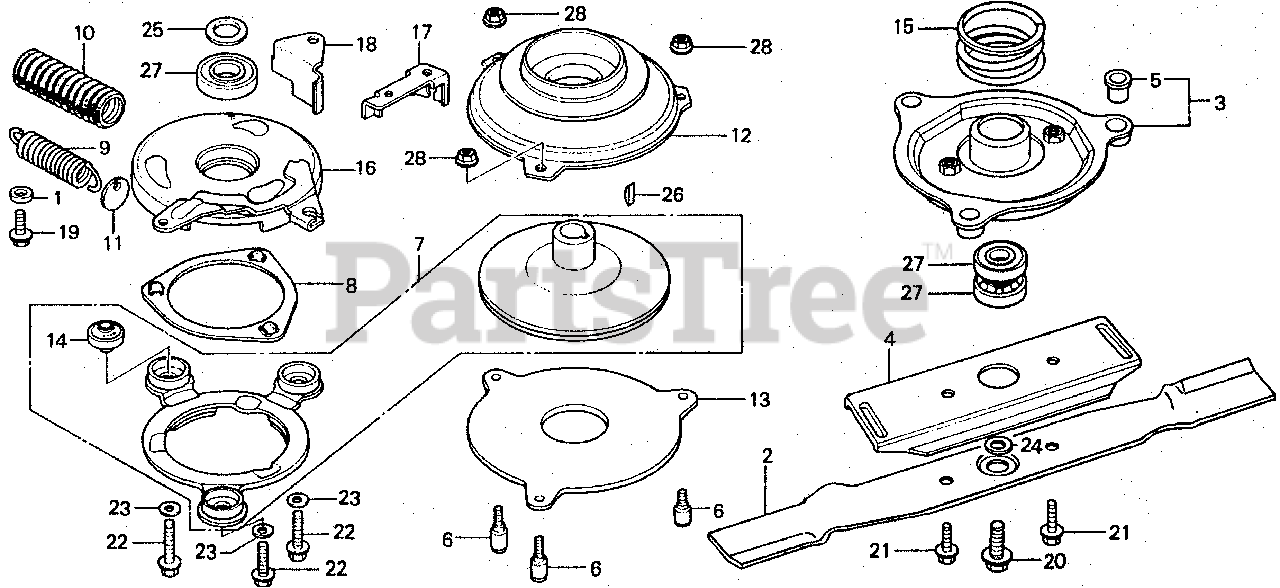

ROTO-STOP Parts Diagram

  • Title

1

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

2

Honda 72511-952-830

SEE PART DETAILS - PRI; BLADE, ROTARY

$15.99

$

In Stock, only 1 left!

0

3

Honda 72600-952-020

HOLDER, BLADE

$

$

Currently unavailable

4

Honda 72612-952-010

HOLDER, BLADE (NOT AVAILABLE)

$34.99

$

Usually ships in 3-6 days

0

5

Honda 72613-952-000

BUSH, BLADE HOLDER

$5.99

$

Usually ships in 3-6 days

0

6

Honda 72615-952-010

PIN, DRIVE

$8.99

$

Usually ships in 3-6 days

0

7

Honda 75010-952-000

DISK SET, BRAKE & CLUTCH (NOT AVAILABLE)

$

$

Not available

8

Honda 75110-952-000

RETAINER, BALL

$8.49

$

Usually ships in 3-6 days

0

9

Honda 75113-952-010

SPRING, ROTO-STOP CLUTCH RETURN (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 75114-952-010

BOOT, SPRING

$

$

Not available

11

Honda 75115-952-000

PLATE, DUST SEAL

$

$

Currently unavailable

12

Honda 75127-952-020

PULLEY, DRIVE

$98.99

$

Usually ships in 3-6 days

0

13

Honda 75131-952-010

DISK, DRIVEN

$42.99

$

Usually ships in 3-6 days

0

14

Honda 75132-952-013

RUBBER, CLUTCH (NOT AVAILABLE)

$11.99

$

Usually ships in 3-6 days

0

15

Honda 75135-952-010

SPRING, CLUTCH

$15.99

$

Usually ships in 3-6 days

0

16

Honda 75140-952-010

PLATE, BALL CONTROL

$

$

Not available

17

Honda 75142-952-010

PLATE, CABLE HOOK

$

$

Not available

18

Honda 76113-952-000

PLATE, BELT GUARD

$14.99

$

Usually ships in 3-6 days

0

19

Honda 90029-888-000

BOLT, FLANGE (6X16)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90102-952-003

BOLT, FLANGE UNF (3/8-24)

$4.49

$

In Stock, only 1 left!

0

21

Honda 90105-952-003

BOLT, HEX. (8MM)

$7.49

$

In Stock, only 2 left!

0

22

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.99

$

In Stock, Qty 20+

0

23

Honda 90402-921-000

WASHER (6MM)

$

$

Not available

24

Honda 90409-952-000

WASHER (10MM)

$3.49

$

In Stock, only 2 left!

0

25

Honda 90501-952-000

SEE PART DETAILS - SUP; WASHER, THRUST (22X32X3)
(Superseded to 90501-952-010)

$5.49

$

In Stock, only 1 left!

0

25

Honda 90501-952-010

SEE PART DETAILS - PRI; WASHER, THRUST (22X32X3)

$5.49

$

In Stock, only 1 left!

0

26

Honda 94401-16150

KEY, WOODRUFF (16X15)

$1.99

$

In Stock, only 4 left!

0

27

Honda 91101-952-003

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (60/22UU)

$18.99

$

Usually ships in 3-6 days

0

27

Honda 91103-VA4-003

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (60/22UU)

$18.99

$

In Stock, only 2 left!

0

28

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 9

0
