HR21 K1 PDA (R21K1) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K1-1100004 - HR21K1-1127597) REAR WHEEL (P TYPE) + REAR ADJ. PANEL (P TYPE) Parts Diagram

21" Walk-Behind Mower, Made in Japan

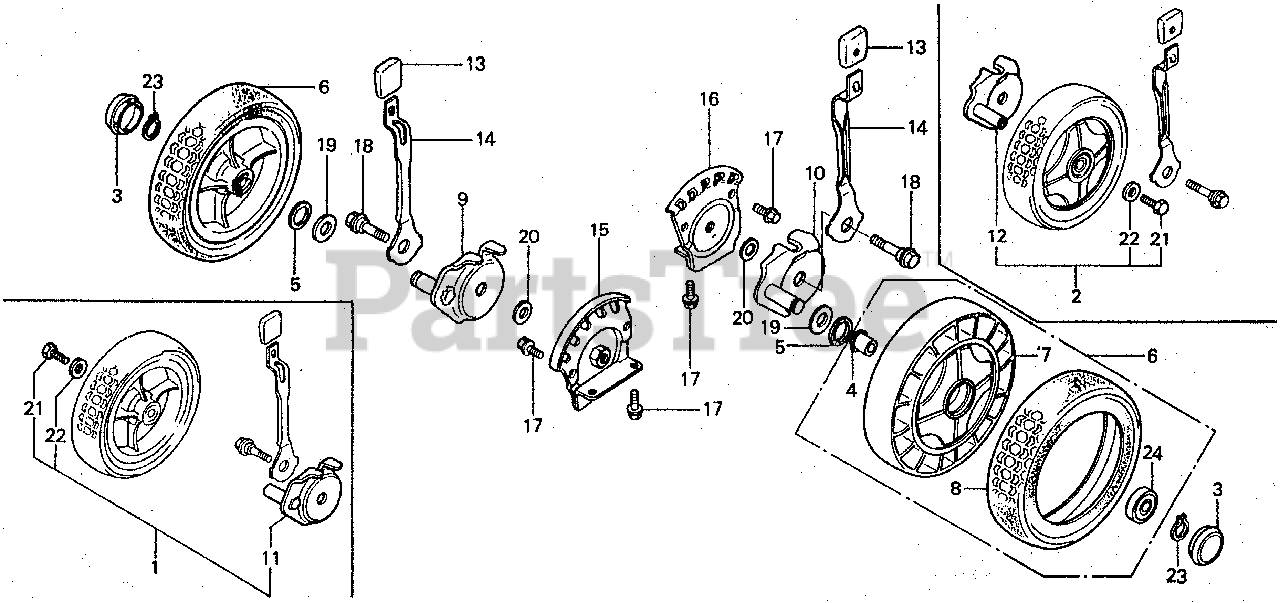

REAR WHEEL (P TYPE) + REAR ADJ. PANEL (P TYPE) Parts Diagram

  • Title
1

Honda 06432-952-305

ARM, R. KIT ADJUSTER

$24.99

$

Usually ships in 3-6 days

0

2

Honda 06436-952-305

ARM KIT, L. ADJUSTER (N/A: SEE COMPONENTS)

$

$

Currently unavailable

3

Honda 42755-952-000

CAP, WHEEL

$4.49

$

Usually ships in 3-6 days

0

4

Honda 42756-952-000

BUSH, WHEEL

$6.99

$

Usually ships in 3-6 days

0

5

Honda 42757-952-000

FELT, WHEEL SHAFT

$

$

Not available

6

Honda 42800-960-000XC

WHEEL ASSY., RR. *NH31* (MCKINLEY WHITE)

$

$

Not available

7

Honda 42811-960-000XC

SEE PART DETAILS - PRI; HUB, RR. WHEEL *NH31* (MCKINLEY WHITE)

$32.99

$

Usually ships in 3-6 days

0

8

Honda 42861-952-000

TIRE, RR. (8INCH)

$

$

Not available

9

Honda 06432-952-305

ARM, R. KIT ADJUSTER

$24.99

$

Usually ships in 3-6 days

0

10

Honda 42920-952-000

ARM, L. FR. ADJUSTER

$

$

Currently unavailable

11

Honda 42930-960-000

ARM, R. RR. ADJUSTING

$

$

Not available

12

Honda 42940-960-000

ARM, L. RR. ADJUSTING

$

$

Not available

13

Honda 42952-952-000

GRIP, ADJUSTER

$4.99

$

In Stock, only 2 left!

0

14

Honda 42961-952-000

PLATE, RR. ADJUSTING (NOT AVAILABLE)

$21.99

$

Usually ships in 3-6 days

0

15

Honda 42986-952-000

PANEL, R. RR. ADJUSTING

$18.99

$

Usually ships in 3-6 days

0

16

Honda 42987-952-000

PANEL, L. RR. ADJUSTING (NOT AVAILABLE)

$

$

Not available

17

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

18

Honda 90103-952-000

BOLT, RR. ADJUSTING ARM

$5.49

$

In Stock, only 1 left!

0

19

Honda 90408-952-000

WASHER (15MM)

$

$

Not available

20

Honda 90411-706-000

WASHER (10MM)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 92000-08012-0A

SEE PART DETAILS - SUP; BOLT, HEX. (8X12)

$

$

Currently unavailable

22

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

23

Honda 94510-15000

CIRCLIP (OUTER) (15MM)

$1.49

$

In Stock, Qty 9

0

24

Honda 96130-62020-10

BEARING, RADIAL BALL (6202)

$17.99

$

Usually ships in 3-6 days

0
