HR21 K1 PDA (R21K1) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K1-1100004 - HR21K1-1127597) HANDLEBAR (P TYPE) Parts Diagram

21" Walk-Behind Mower, Made in Japan

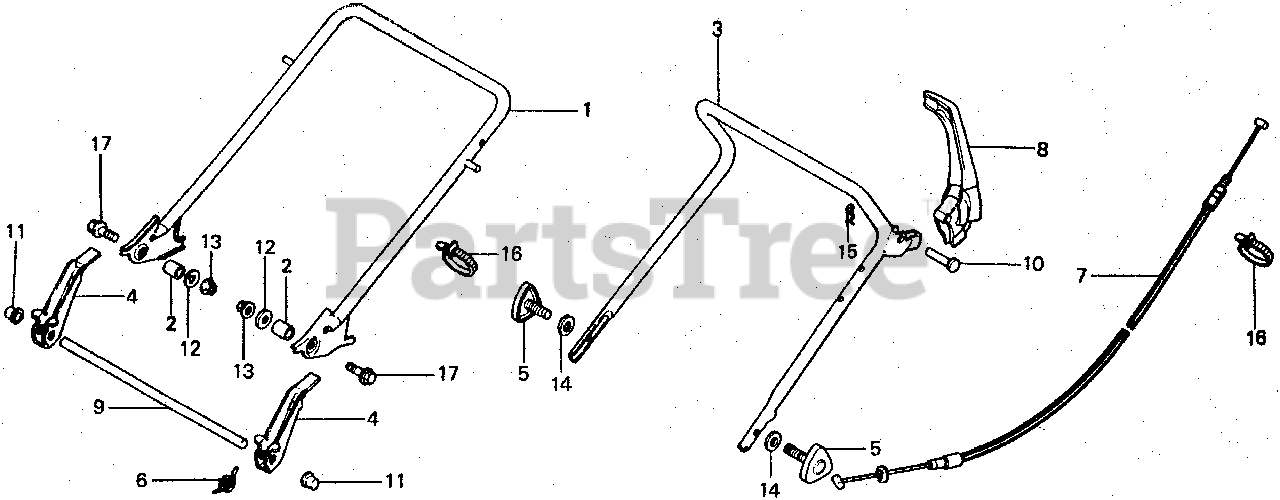

HANDLEBAR (P TYPE) Parts Diagram

  • Title

1

Honda 53110-960-000

HANDLEBAR (LOWER)

$

$

Not available

2

Honda 53116-952-000

COLLAR (LOWER)

$4.49

$

Usually ships in 3-6 days

0

3

Honda 53150-952-010

PIPE (UPPER) (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 53161-952-000

LEVER, LOCK

$19.99

$

Usually ships in 3-6 days

0

5

Honda 53175-960-000

SEE PART DETAILS - PRI; GRIP, HANDLE JOINT

$21.99

$

Usually ships in 3-6 days

0

6

Honda 53179-952-000

SPRING, HANDLE

$4.99

$

Usually ships in 3-6 days

0

7

Honda 54530-952-010

CABLE, ROTO-STOP CLUTCH

$

$

Not available

8

Honda 75161-952-000

LEVER, ROTO-STOP CLUTCH

$

$

Not available

9

Honda 76132-952-000

SHAFT, SHIELD

$

$

Not available

10

Honda 90106-952-000

PIN, CLUTCH LEVER

$

$

Not available

11

Honda 90406-952-000

NUT (8MM)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 90430-657-000

WASHER (8MM)

$9.49

$

In Stock, only 1 left!

0

13

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

14

Honda 94101-08000

WASHER, PLAIN (8MM)

Note: Use from Frame SN 1103767.

$1.49

$

In Stock, Qty 20+

0

15

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

16

Honda 95014-62100

BAND B1, CABLE

Note: Use up to Frame SN 1103766.

$1.99

$

In Stock, Qty 5

0

16

Honda 95014-62200

BAND B2, CABLE HARNESS

Note: Use from Frame SN 1103767.

$2.49

$

Usually ships in 3-6 days

0

17

Honda 95701-08032-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X32)

$1.99

$

In Stock, Qty 5

0
