HR21 K1 PDA (R21K1) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21K1-1100004 - HR21K1-1127597) GRASS BAG + DISCHARGE ADAPTER Parts Diagram

21" Walk-Behind Mower, Made in Japan

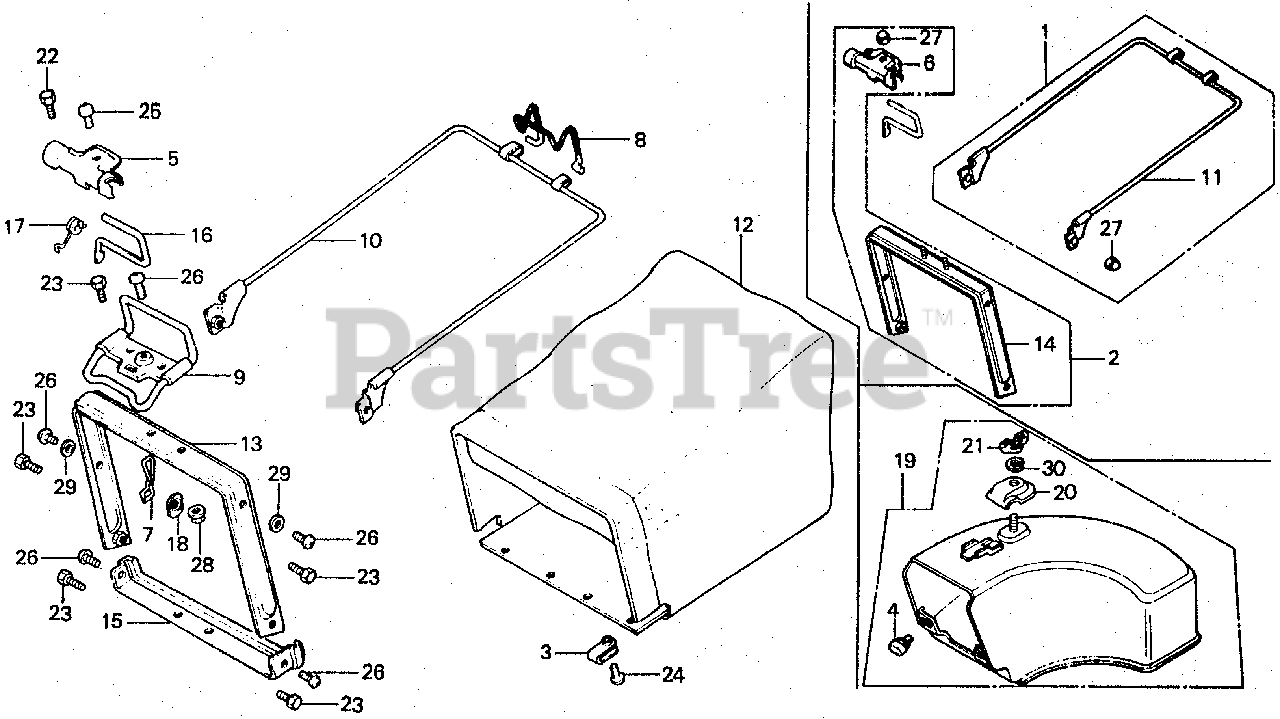

GRASS BAG + DISCHARGE ADAPTER Parts Diagram

  • Title

1

Honda 06811-952-305

BAR, GRASS CATCHER KIT (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 06812-952-305

SEE PART DETAILS - PRI; FRAME KIT A, BAG

$

$

Not available

3

Honda 61194-579-000

NUT, CLIP (SOURCE: VINTAGE PARTS INC.)

$

$

Not available

4

Honda 76122-952-000

STOPPER, DISCHARGE GUARD

$4.99

$

In Stock, only 2 left!

0

5

Honda 06812-952-305

SEE PART DETAILS - PRI; FRAME KIT A, BAG

$

$

Not available

5

Honda 81152-952-000

SEE PART DETAILS - SUP; PLATE, HINGE BAG

$

$

Currently unavailable

6

Honda 81152-960-000

PLATE, HINGE BAG (NOT AVAILABLE)

$

$

Not available

7

Honda 81153-952-000

HOOK, BAG SET

$

$

Not available

8

Honda 81154-952-000

GRIP, GRASS BAG

$28.99

$

Usually ships in 3-6 days

0

9

Honda 81155-952-000

HANDLE, FR. GRASS BAG

$53.99

$

Usually ships in 3-6 days

0

10

Honda 81156-952-000

BAR, GRASS BAG

$

$

Currently unavailable

11

Honda 81156-960-000

BAR, GRASS BAG (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda P2750-485-91469

SEE PART DETAILS - PRI; FABRIC, GRASS BAG

$70.99

$

Usually ships in 3-6 days

0

12

Honda 81157-952-000

SEE PART DETAILS - SUP; FABRIC, GRASS BAG

$

$

Currently unavailable

13

Honda 81158-952-000

FRAME A, BAG

$

$

Currently unavailable

14

Honda 81158-960-000

FRAME A, BAG

$

$

Currently unavailable

15

Honda 81159-952-000

FRAME B, BAG

$31.99

$

Usually ships in 3-6 days

0

16

Honda 81161-952-000

LEVER, LOCK BAG

$

$

Not available

17

Honda 81162-952-000

SPRING, LOCK LEVER RETURN

$5.49

$

Usually ships in 3-6 days

0

18

Honda 81165-952-000

NUT, HOOK HOLDER

$

$

Not available

19

Honda 81210-952-010T

ADAPTER, DISCHARGE *NH2M*

$

$

Currently unavailable

20

Honda 81211-952-300

PLATE, CLAMP

$

$

Not available

21

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

22

Honda 92000-06008

SEE PART DETAILS - SUP; BOLT, HEX. (6X8)

Note: Use from Frame SN 1103767.

$

$

Currently unavailable

22

Honda 92101-06008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X8)

Note: Use from Frame SN 1103767.

$1.99

$

Usually ships in 3-6 days

0

23

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

Note: Use from Frame SN 1103767.

$1.99

$

Usually ships in 3-6 days

0

24

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 8

0

25

Honda 93500-06008

SCREW, PAN (6X8)

Note: Use up to Frame SN 1103766.

$1.49

$

In Stock, only 2 left!

0

25

Honda 93500-06008-0A

SCREW, PAN (6X8)

Note: Use up to Frame SN 1103766.

$1.49

$

Usually ships in 3-6 days

0

25

Honda 93500-06008-0H

SEE PART DETAILS - PRI; SCREW, PAN (6X8)

Note: Use up to Frame SN 1103766.

$1.49

$

Usually ships in 3-6 days

0

26

Honda 93500-06012

SEE PART DETAILS - SUP; SCREW, PAN (6X12)

Note: Use up to Frame SN 1103766.

$

$

Currently unavailable

26

Honda 93500-06012-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X12)

Note: Use up to Frame SN 1103766.

$1.49

$

Usually ships in 3-6 days

0

27

Honda 94021-06000

SEE PART DETAILS - SUP; NUT, CAP (6MM)

$

$

Currently unavailable

27

Honda 94021-06020

SEE PART DETAILS - PRI; NUT, CAP (6MM)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

29

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

30

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

In Stock, only 1 left!

0
