HR21-5 SDAM (HR21-5) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-5-1019070 - HR21-5-9999999) TENSIONER ARM@V-BELT Parts Diagram

21" Walk-Behind Mower, Made in Japan

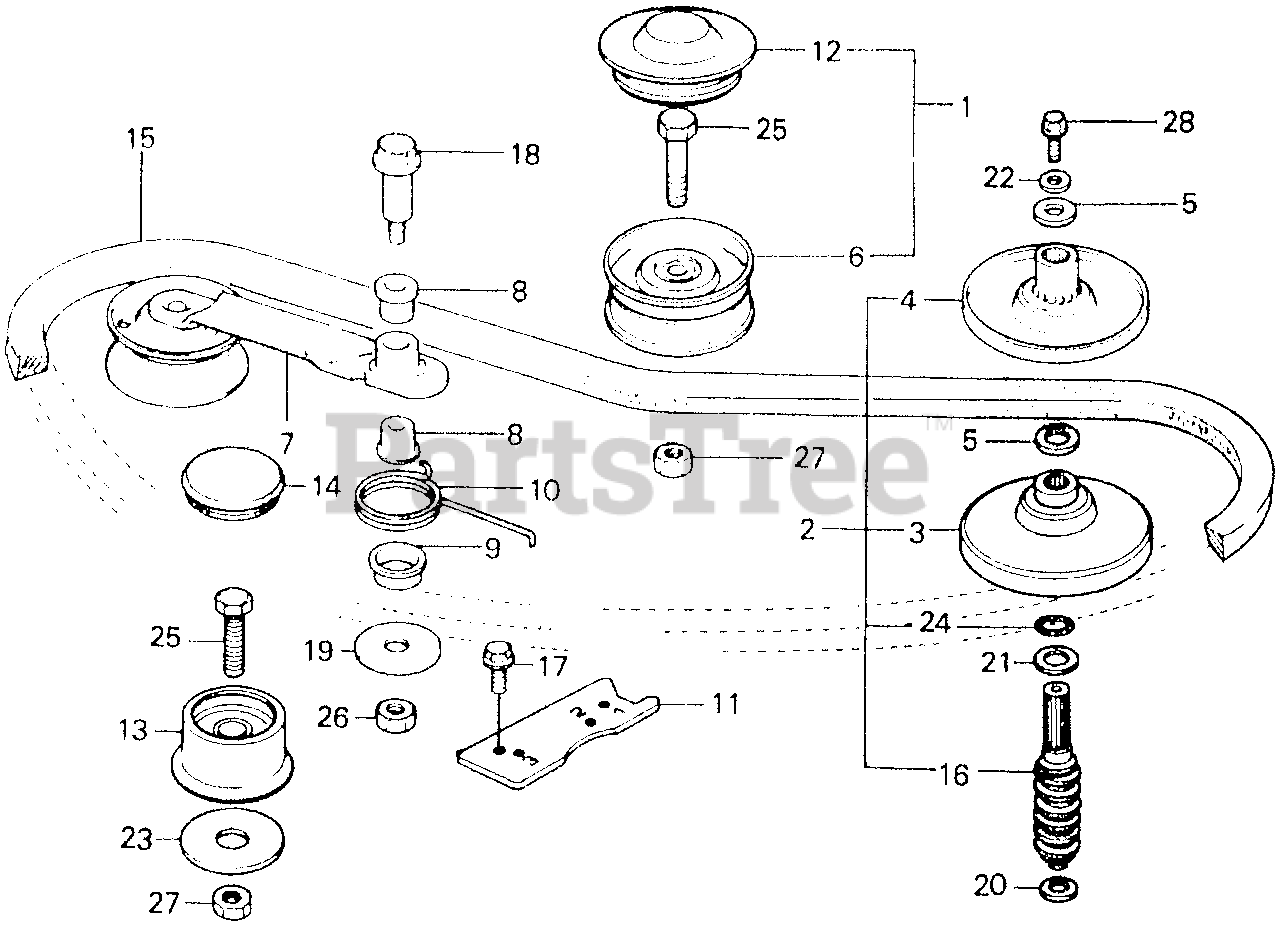

TENSIONER ARM@V-BELT Parts Diagram

  • Title

1

Honda 04401-960-770

SEE PART DETAILS - PRI; ROLLER

Note: (Optional).Use up to Frame SN 1139806.

$

$

Not available

2

Honda 06221-960-305

SEE PART DETAILS - PRI; PULLEY KIT, DRIVE

Note: (Optional).

$

$

Not available

3

Honda 22110-960-771

FACE, DRIVEN

$33.99

$

Usually ships in 3-6 days

0

4

Honda 22120-960-770

FACE, MOVABLE DRIVEN (NOT AVAILABLE)

$27.99

$

Usually ships in 3-6 days

0

5

Honda 22131-960-770

COLLAR, SPEED CONTROL (NOT AVAILABLE)

$

$

Not available

6

Honda 22510-952-770

ROLLER
(Superseded to 04401-960-770)

$

$

Not available

7

Honda 22520-960-770

ARM, TENSIONER (NOT AVAILABLE)

$

$

Not available

8

Honda 22524-952-770

BUSH, TENSIONER ARM (NOT AVAILABLE)

$10.99

$

Usually ships in 3-6 days

0

9

Honda 22525-952-770

BUSH, CHANGE ARM

$

$

Not available

10

Honda 22526-960-720

SPRING, TENSIONER ARM

$

$

Not available

11

Honda 22528-960-770

PLATE, SPRING HOLDING (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 22529-960-770

GROMMET, TENSION ROLLER

Note: Use from Frame SN 1139807.

$

$

Not available

13

Honda 22540-960-770

ROLLER, GUIDE

$

$

Not available

14

Honda 22541-960-770

GROMMET, GUIDE ROLLER (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 23161-952-771

SEE PART DETAILS - PRI; V-BELT (35)

$37.99

$

Usually ships in 3-6 days

0

16

Honda 23411-960-770

GEAR, DRIVE

$

$

Not available

17

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

18

Honda 90104-952-770

BOLT, TENSIONER ARM

$5.99

$

Usually ships in 3-6 days

0

19

Honda 90401-706-000

WASHER (8MM) (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 90443-844-000

WASHER (8MM) (NOT AVAILABLE)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 90459-107-000

WASHER, THRUST (12MM)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 90474-704-000

WASHER (6X17) (Honda Code 0181321).

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90528-952-000

WASHER (10.5X20.5) (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 91205-952-771

O-RING (11.7X1.2) (NOT AVAILABLE)

$

$

Not available

25

Honda 92101-10028-0A

BOLT, HEX. (10X28)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 94001-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338).

$1.99

$

In Stock, Qty 6

0

27

Honda 94001-10000-0S

SEE PART DETAILS - PRI; NUT, HEX. (10MM)

$1.99

$

In Stock, only 1 left!

0

28

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0
