HR21-5 SDAM (HR21-5) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-5-1019070 - HR21-5-9999999) OIL PAN Parts Diagram

21" Walk-Behind Mower, Made in Japan

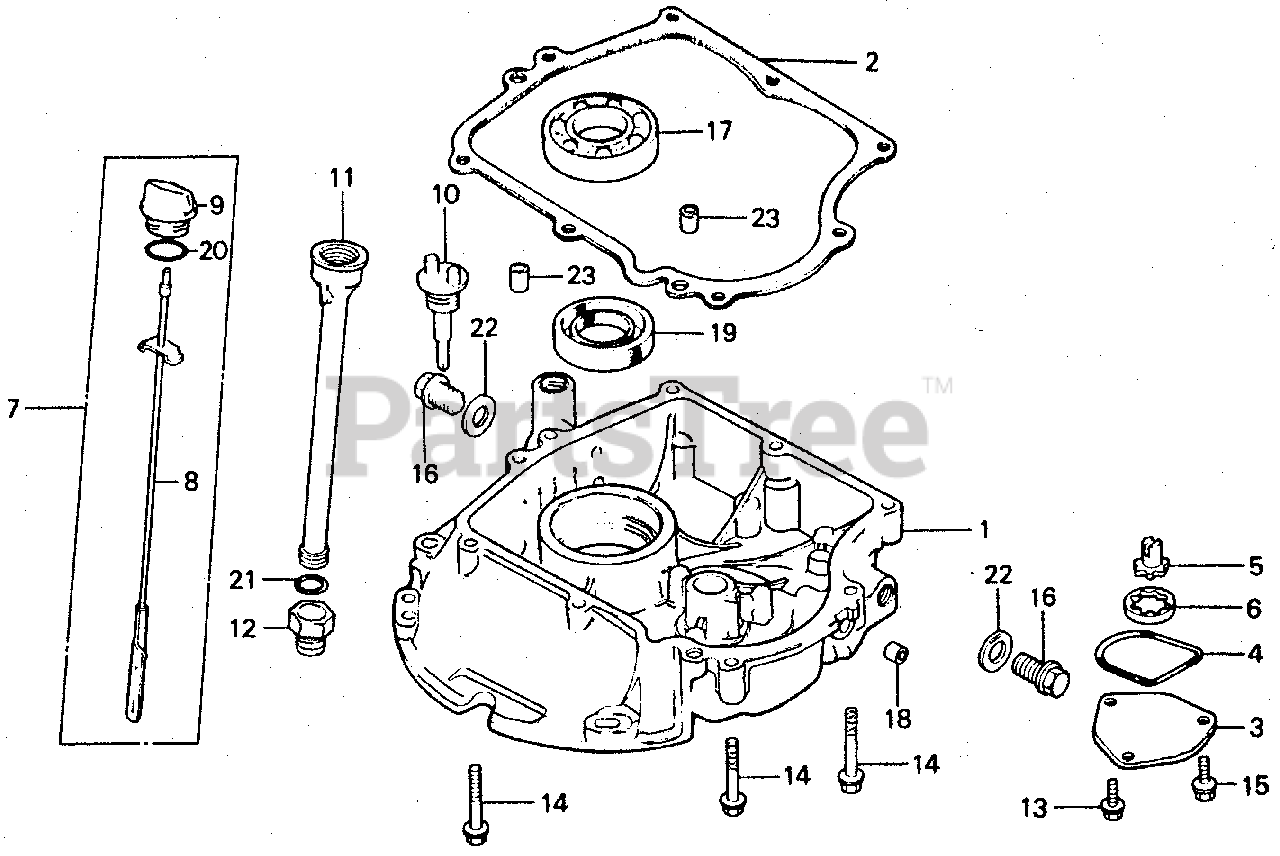

OIL PAN Parts Diagram

  • Title

1

Honda 11310-894-305

PAN, OIL (Honda Code 0821025).

$

$

Not available

2

Honda 11381-894-306

SEE PART DETAILS - PRI; GASKET, OIL PAN (Honda Code 4477410).

$14.99

$

Usually ships in 3-6 days

0

3

Honda 15130-888-010

COVER, OIL PUMP (Honda Code 0821041).

$10.99

$

Usually ships in 3-6 days

0

4

Honda 15131-888-010

O-RING, COVER (Honda Code 0821058).

$4.49

$

Usually ships in 3-6 days

0

5

Honda 15330-888-000

ROTOR (INNER) (Honda Code 0671859).

$

$

Currently unavailable

6

Honda 15332-115-000

ROTOR, OIL PUMP (OUTER) (Honda Code 0307751).

$

$

Not available

7

Honda 15600-ZE3-900

SEE PART DETAILS - PRI; GAUGE ASSY., LEVEL (Honda Code 2911121).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

7

Honda 15600-894-680

SEE PART DETAILS - SUP; GAUGE ASSY., OIL LEVEL

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

8

Honda 15610-894-680

DIPSTICK, OIL (Honda Code 0821074).

Note: (Optional).

$

$

Not available

9

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL (Honda Code 0282806).

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

10

Honda 15620-888-010

SEE PART DETAILS - PRI; CAP, OIL FILLER (Honda Code 0747725).

$

$

Not available

11

Honda 15630-894-680

PIPE, OIL FILLER (Honda Code 0821082).

Note: (Optional).

$43.99

$

Usually ships in 3-6 days

0

12

Honda 15631-894-680

BOLT, JOINT (Honda Code 0821090).

Note: (Optional).

$

$

Currently unavailable

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 19

0

14

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

$3.49

$

In Stock, only 1 left!

0

15

Honda 90029-888-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 0747733).

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, only 2 left!

0

17

Honda 91001-894-004

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (Honda Code 0821124).

$22.99

$

Usually ships in 3-6 days

0

18

Honda 91231-891-003

OIL SEAL (6X11X4) (Honda Code 0801043).

$2.99

$

In Stock, only 1 left!

0

19

Honda 91252-894-004

SEE PART DETAILS - PRI; OIL SEAL (25.4X40X7) (Honda Code 0821140).

$13.99

$

In Stock, only 1 left!

0

20

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

21

Honda 91301-MY9-003

SEE PART DETAILS - PRI; O-RING (15X2.5)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

22

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, only 4 left!

0

23

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 10

0
