HR21-5 SDAM (HR21-5) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-5-1019070 - HR21-5-9999999) GOVERNOR ARM@CONTROL Parts Diagram

21" Walk-Behind Mower, Made in Japan

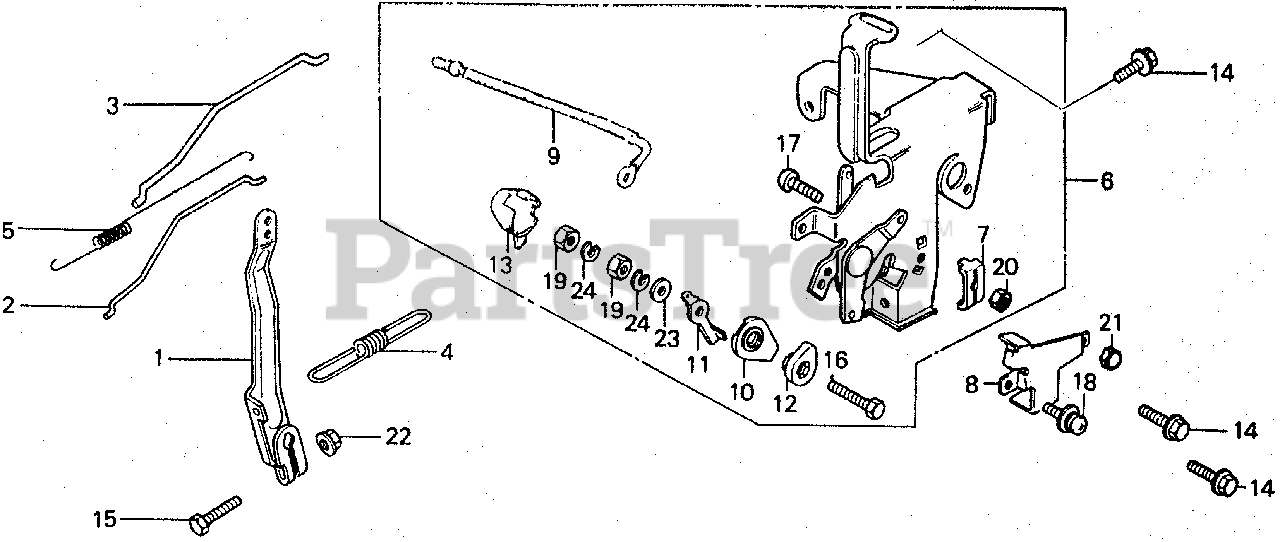

GOVERNOR ARM@CONTROL Parts Diagram

  • Title

1

Honda 16551-894-000

ARM, GOVERNOR (Honda Code 0821397).

$17.99

$

Usually ships in 3-6 days

0

2

Honda 16555-894-010

SEE PART DETAILS - PRI; ROD, GOVERNOR (Honda Code 1024330).

$3.99

$

Usually ships in 3-6 days

0

3

Honda 16556-894-000

ROD, CHOKE (Honda Code 0821413).

$3.99

$

Usually ships in 3-6 days

0

4

Honda 16561-960-650

SPRING, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16562-894-000

SPRING, THROTTLE RETURN (Honda Code 0821439).

$

$

Not available

6

Honda 16570-960-650

CONTROL ASSY. (NOT AVAILABLE)

$

$

Not available

7

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

$4.99

$

Usually ships in 3-6 days

0

8

Honda 17100-960-630

PROTECTOR, CONTROL

Note: (Optional).Use from Engine SN 1045037.

$

$

Not available

8

Honda 17100-960-651

SEE PART DETAILS - PRI; PROTECTOR, CONTROL (Honda Code 1084003).

$13.99

$

Usually ships in 3-6 days

0

9

Honda 30562-894-000

WIRE, STOP SWITCH (Honda Code 0821470).

$

$

Currently unavailable

10

Honda 36111-894-010

SEE PART DETAILS - PRI; BASE, SWITCH (Honda Code 0941443).

$

$

Not available

11

Honda 36112-894-000

CONTACT, SWITCH (Honda Code 0821496).

$

$

Not available

12

Honda 36113-894-010

SEE PART DETAILS - PRI; WASHER, INSULATOR (Honda Code 0941450).

$

$

Not available

13

Honda 36115-894-000

CAP, STOP SWITCH (Honda Code 0821520).

$

$

Not available

14

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

15

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

Note: Use from Engine SN 1209695.

$3.49

$

In Stock, only 3 left!

0

15

Honda 92101-06020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X20) (Honda Code 2528925).

Note: Use up to Engine SN 1209694.

$1.49

$

Usually ships in 3-6 days

0

16

Honda 92100-04020-0A

BOLT, HEX. (4X20)

$

$

Currently unavailable

17

Honda 93500-05022-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X22) (Honda Code 0171801).

$0.99

$

Usually ships in 3-6 days

0

18

Honda 93893-05012-00

SCREW-WASHER (5X12) (Honda Code 0638734).

$1.99

$

In Stock, only 3 left!

0

19

Honda 94001-04000-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM) (Honda Code 0209684).

$1.49

$

In Stock, only 1 left!

0

20

Honda 94001-05000-0S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 94021-05070-0S

NUT, CAP (5MM)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

23

Honda 94101-04000

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM) (Honda Code 0059048).

$1.49

$

In Stock, only 1 left!

0

24

Honda 94111-04000

WASHER, SPRING (4MM) (Honda Code 0058958).

$1.49

$

Usually ships in 3-6 days

0
