HR21-5 SDAM (HR21-5) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-5-1019070 - HR21-5-9999999) FUEL TANK@FUEL VALVE Parts Diagram

21" Walk-Behind Mower, Made in Japan

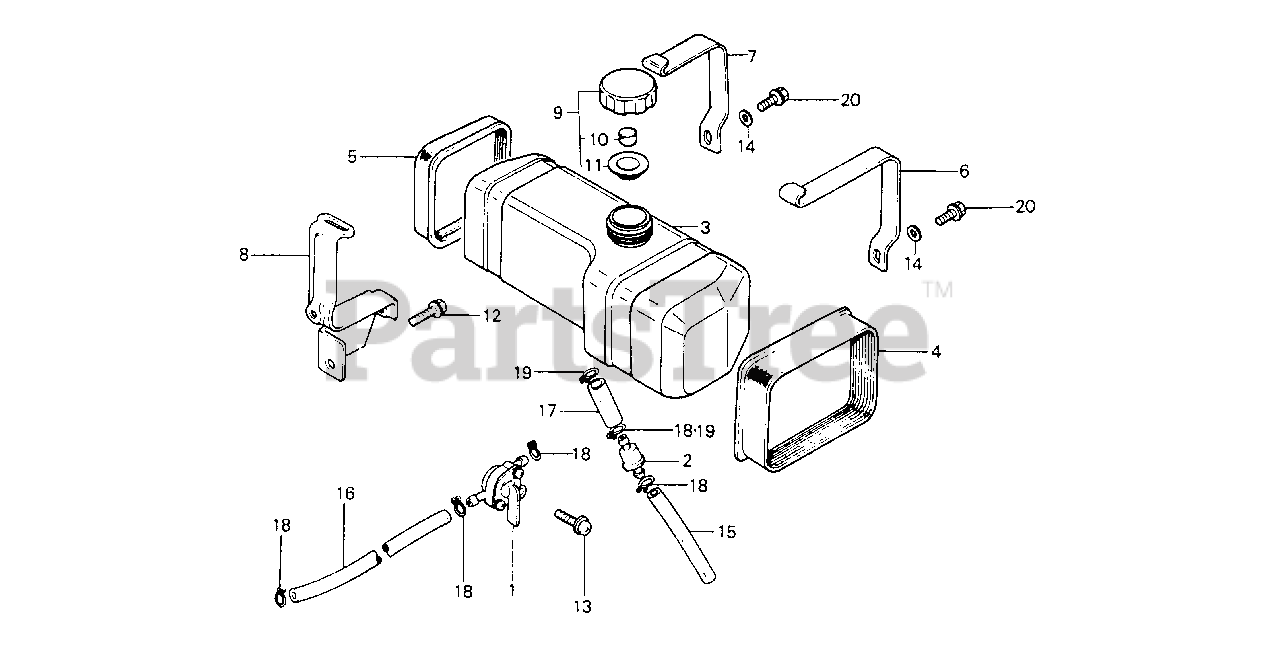

FUEL TANK@FUEL VALVE Parts Diagram

  • Title

1

Honda 16950-894-005

PETCOCK ASSY. (Honda Code 0821645).

$

$

Currently unavailable

2

Honda 16910-GB2-005

FILTER, FUEL (Honda Code 1420629).

Note: Use from Engine SN 1095066.

$16.99

$

In Stock, only 2 left!

0

2

Honda 16952-952-003

SEE PART DETAILS - PRI; FILTER, FUEL (Honda Code 0743468).

Note: Use up to Engine SN 1095065.

$16.99

$

Usually ships in 3-6 days

0

3

Honda 17510-960-650

TANK, FUEL (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 17515-894-000

RUBBER A, FUEL TANK MOUNTING (Honda Code 0821660).

$

$

Currently unavailable

5

Honda 17516-894-000

RUBBER B, FUEL TANK MOUNTING (Honda Code 0821678).

$

$

Currently unavailable

6

Honda 17518-894-000

BAND A, TANK MOUNTING (Honda Code 0821686).

$

$

Not available

7

Honda 17519-894-000

BAND B, TANK MOUNTING (Honda Code 0821694).

$

$

Not available

8

Honda 17525-894-000

STAY B, TANK (Honda Code 0821702).

$30.99

$

Usually ships in 3-6 days

0

9

Honda 17620-888-010

CAP ASSY., FUEL TANK
(Superseded to 17620-888-020)

Note: Use up to Engine SN 1088409.

$

$

Not available

9

Honda 17620-888-020

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK Use from Engine SN 2010636.

Note: Use from Engine SN 1088410.

$

$

Not available

10

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

11

Honda 17624-355-010

GASKET, FUEL CAP

Note: Use up to Engine SN 1072213.

$

$

Currently unavailable

11

Honda 17624-896-750

SEE PART DETAILS - PRI; GASKET, FUEL CAP Use from Engine SN 2007016.

Note: Use from Engine SN 1072214.

$

$

Not available

12

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

13

Honda 93891-05012-08

SCREW-WASHER (5X12) (Honda Code 0485938).

$1.49

$

In Stock, only 2 left!

0

14

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 20+

0

15

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

Note: Use from Engine SN 1095066.

$54.99

$

In Stock, only 3 left!

0

15

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

Note: Use up to Engine SN 1095065.

$54.99

$

In Stock, only 3 left!

0

16

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$54.99

$

In Stock, only 3 left!

0

17

Honda 17512-894-000

TUBE, FUEL (Honda Code 1437151).

Note: Use from Engine SN 1095066.

$

$

Currently unavailable

17

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (Honda Code 5338587). (5.5X150)

Note: Use up to Engine SN 1095065.

$70.99

$

In Stock, only 1 left!

0

18

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use up to Engine SN 1095065.

$2.49

$

In Stock, only 4 left!

0

18

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use from Engine SN 1095066.

$2.49

$

In Stock, only 4 left!

0

19

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

Note: Use up to Engine SN 1095065.

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

Note: Use from Engine SN 1095066.

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

In Stock, only 1 left!

0
