HR21-5 SDAM (HR21-5) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-5-1019070 - HR21-5-9999999) FLYWHEEL@POINTS Parts Diagram

21" Walk-Behind Mower, Made in Japan

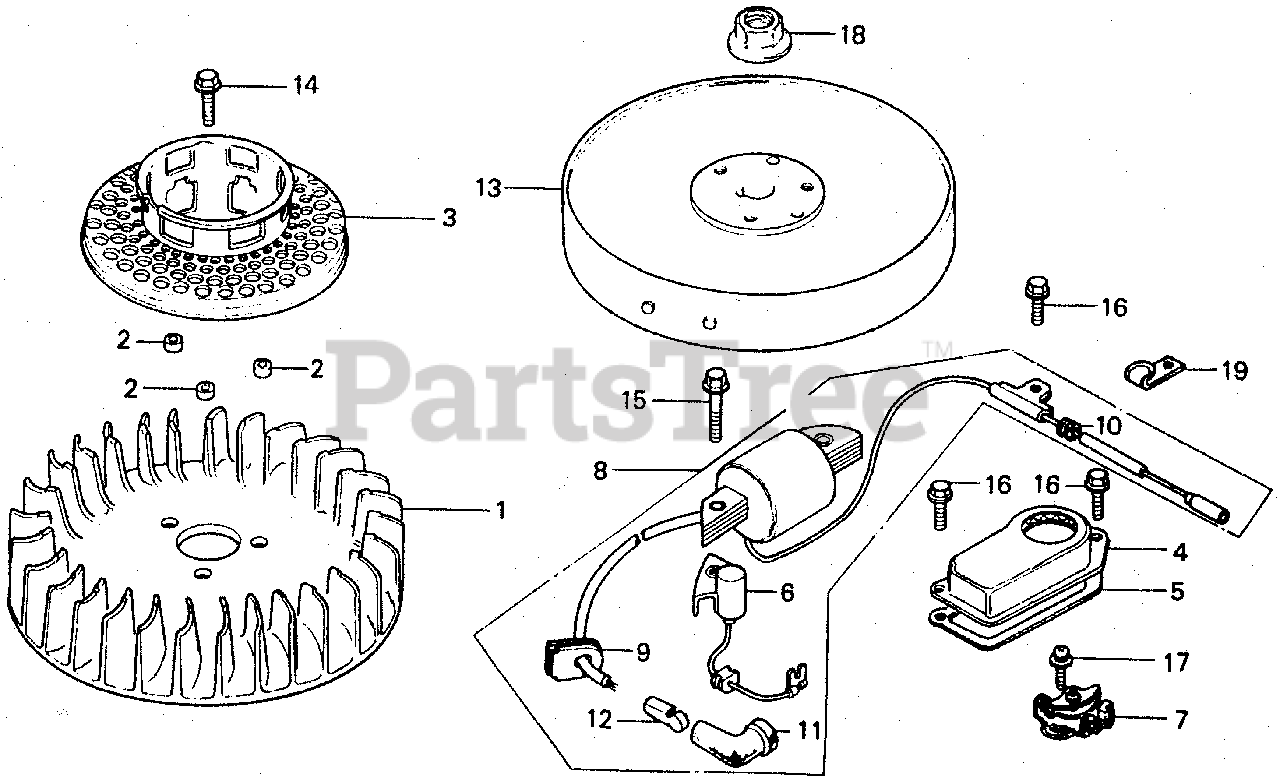

FLYWHEEL@POINTS Parts Diagram

  • Title
1

Honda 19511-883-020

SEE PART DETAILS - PRI; FAN, COOLING

$17.99

$

Usually ships in 3-6 days

0

2

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

3

Honda 28451-883-030

SEE PART DETAILS - PRI; PULLEY, STARTER (Honda Code 1010487).

$

$

Not available

4

Honda 30211-883-000

COVER, POINTS (Honda Code 0636720).

$

$

Not available

5

Honda 30215-883-000

SEE PART DETAILS - SUP; GASKET, POINT COVER (Honda Code 0636738). (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 30251-883-003

CONDENSER (Honda Code 1002237).

$21.99

$

Usually ships in 3-6 days

0

7

Honda 30280-883-005

POINTS ASSY. (Honda Code 0636746).

$33.99

$

Usually ships in 3-6 days

0

8

Honda 30560-894-013

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (NOT AVAILABLE) (Honda Code 1024421).

$

$

Not available

9

Honda 30563-883-000

SEE PART DETAILS - SUP; GROMMET, WIRE

$

$

Currently unavailable

10

Honda 30569-888-000

GROMMET, PRIMARY WIRE (Honda Code 0671446).

$

$

Currently unavailable

11

Honda 30701-888-004

SEE PART DETAILS - SUP; CAP, IGNITION (TOYO)
(Superseded to 30701-888-014)

$

$

Not available

12

Honda 30702-888-003

TERMINAL, PLUG (Honda Code 0747782).

$9.49

$

Usually ships in 3-6 days

0

13

Honda 31100-883-040

SEE PART DETAILS - PRI; FLYWHEEL (Honda Code 5989405).

$104.99

$

Usually ships in 3-6 days

0

14

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$1.99

$

In Stock, Qty 5

0

15

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

$3.49

$

In Stock, only 1 left!

0

16

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90051-883-000

SCREW-WASHER (5X12) (Honda Code 0649699).

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM) (Honda Code 0442038).

$7.99

$

Usually ships in 3-6 days

0
