HR21-5 SDAM (HR21-5) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-5-1019070 - HR21-5-9999999) FAN COVER@SIDE PLATE Parts Diagram
21" Walk-Behind Mower, Made in Japan

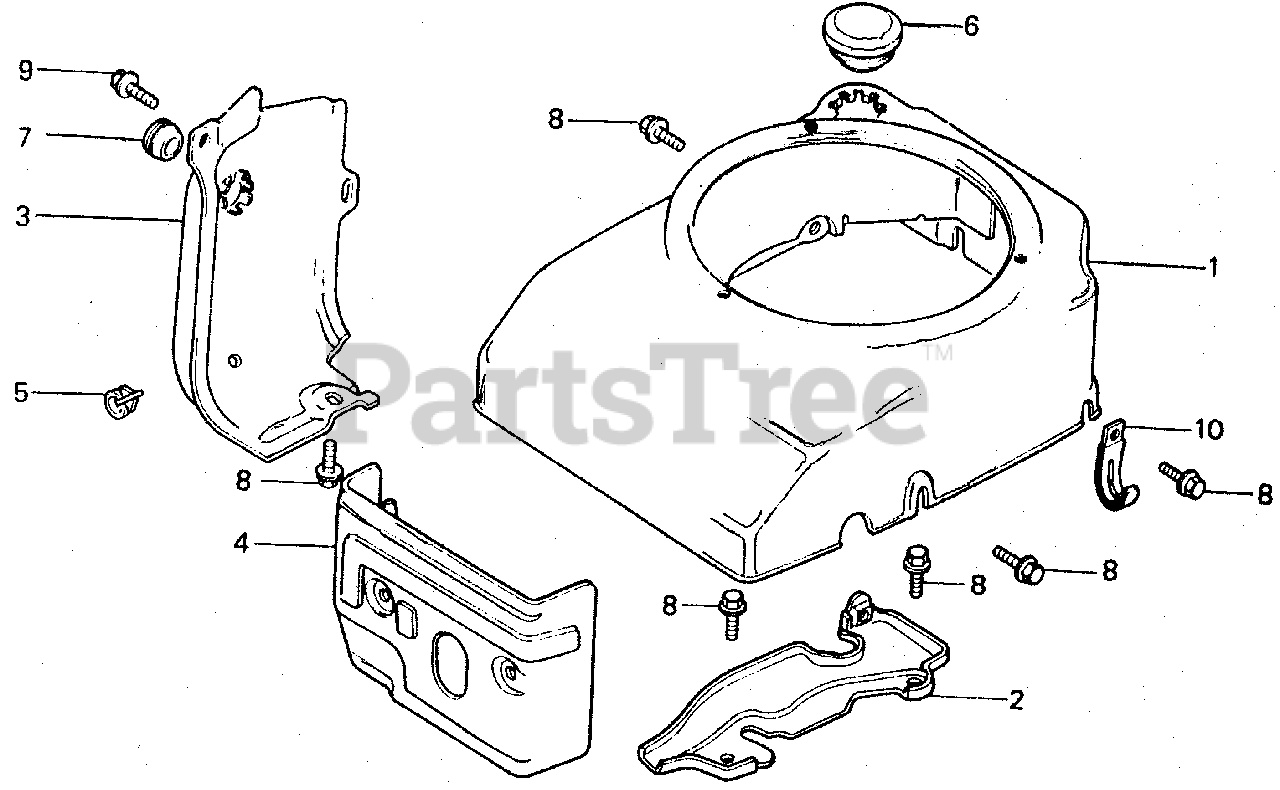

FAN COVER@SIDE PLATE Parts Diagram
Honda 19610-894-000H
COVER, FAN *R8* (BRIGHT RED) (Honda Code 0821314).
$
$
Not available
Honda 19621-894-000
PLATE, SIDE (Honda Code 0821330).
$18.99
$
Usually ships in 3-6 days
Honda 19631-894-000
SHROUD (Honda Code 0821348).
$21.99
$
Usually ships in 3-6 days
Honda 19641-894-000
COVER, TOP (Honda Code 0821355).
$
$
Currently unavailable
Honda 30701-883-000
SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)
$3.99
$
In Stock, only 1 left!
Honda 70529-657-670
GROMMET B, SIDE PANEL (Honda Code 0619601).
$15.99
$
Usually ships in 3-6 days
Honda 81329-567-020
SEE PART DETAILS - PRI; GROMMET, DRAIN HOLE (Honda Code 0677773).
$5.49
$
Usually ships in 3-6 days
Honda 90013-883-000
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).
$1.99
$
In Stock, Qty 20+
Honda 90014-952-000
BOLT, FLANGE (6X14) (Honda Code 0803619).
$2.99
$
In Stock, only 4 left!
Honda 91405-671-000
CLIP, CABLE (Honda Code 0612549).
$12.99
$
Usually ships in 3-6 days
