HR21-5 SDA (HR21-5) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-5-1019070 - HR21-5-9999999) GRASS BAG + DISCHARGE ADAPTER Parts Diagram

21" Walk-Behind Mower, Made in Japan

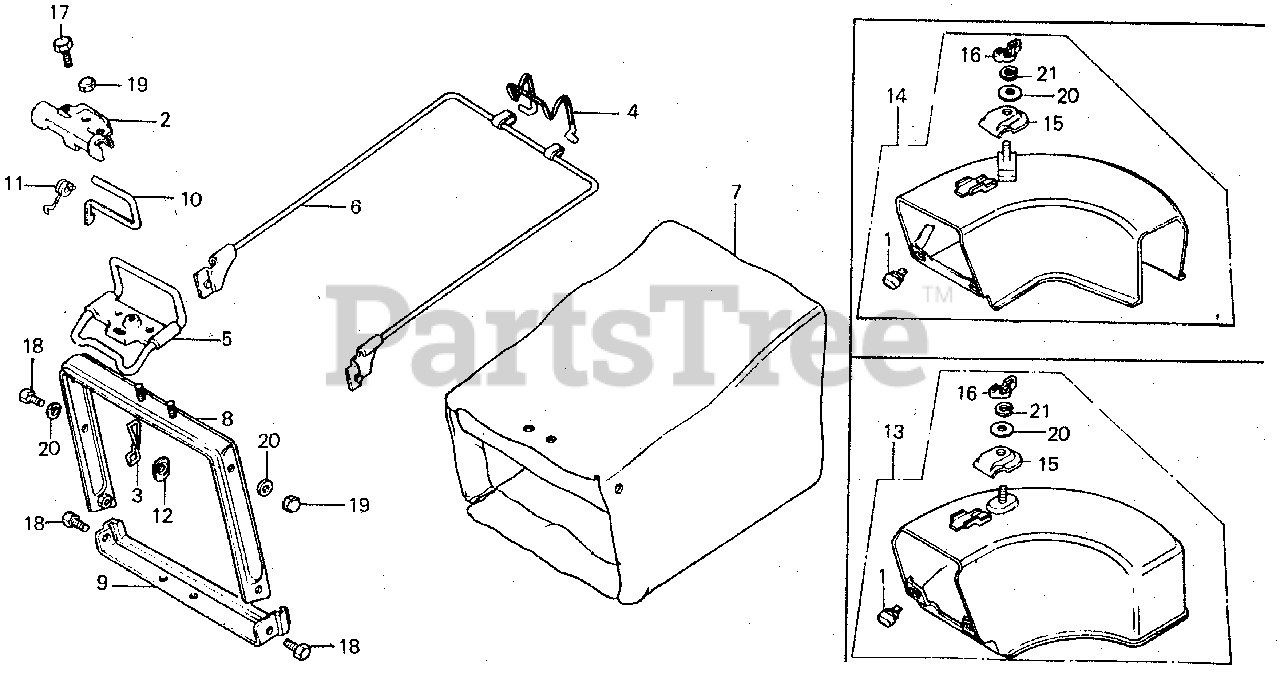

GRASS BAG + DISCHARGE ADAPTER Parts Diagram

  • Title
NI

Honda 76266-952-000

MULCH PLUG (HR21) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

1

Honda 76122-952-000

STOPPER, DISCHARGE GUARD

Note: (Optional).

$4.99

$

In Stock, only 2 left!

0

2

Honda 81152-960-000

PLATE, HINGE BAG (NOT AVAILABLE)

$

$

Not available

3

Honda 81153-952-000

HOOK, BAG SET (NOT AVAILABLE)

$

$

Not available

4

Honda 81154-952-000

GRIP, GRASS BAG (NOT AVAILABLE)

$28.99

$

Usually ships in 3-6 days

0

5

Honda 81155-952-000

HANDLE, FR. GRASS BAG

$53.99

$

Usually ships in 3-6 days

0

6

Honda 81156-960-000

BAR, GRASS BAG (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda P2750-485-91469

FABRIC, GRASS BAG

$70.99

$

Usually ships in 3-6 days

0

8

Honda 81158-960-000

FRAME A, BAG (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 81159-952-000

FRAME B, BAG

$31.99

$

Usually ships in 3-6 days

0

10

Honda 81161-952-000

LEVER, LOCK BAG

$

$

Not available

11

Honda 81162-952-000

SPRING, LOCK LEVER RETURN

$5.49

$

Usually ships in 3-6 days

0

12

Honda 81165-952-000

NUT, HOOK HOLDER (NOT AVAILABLE)

$

$

Not available

14

Honda 81210-960-810

ADAPTER, DISCHARGE (N/A: SEE COMPONENTS)

Note: (Optional).

$

$

Currently unavailable

15

Honda 81211-952-300

PLATE, CLAMP

Note: (Optional).

$

$

Not available

16

Honda 90325-044-000

NUT, TOOL BOX SETTING

Note: (Optional).

$5.49

$

In Stock, Qty 20+

0

17

Honda 92101-06008-0A

BOLT, HEX. (6X8)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 92101-06012

BOLT, HEX. (6X12)
(Superseded to 92101-06012-0A)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 92101-06012-0A

BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94021-06020

NUT, CAP (6MM)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 94111-06000

WASHER, SPRING (6MM)

Note: (Optional).

$1.49

$

In Stock, only 1 left!

0
