HR21-5 SDA (HR21-5) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-5-1019070 - HR21-5-9999999) CYLINDER HEAD + CYLINDER Parts Diagram

21" Walk-Behind Mower, Made in Japan

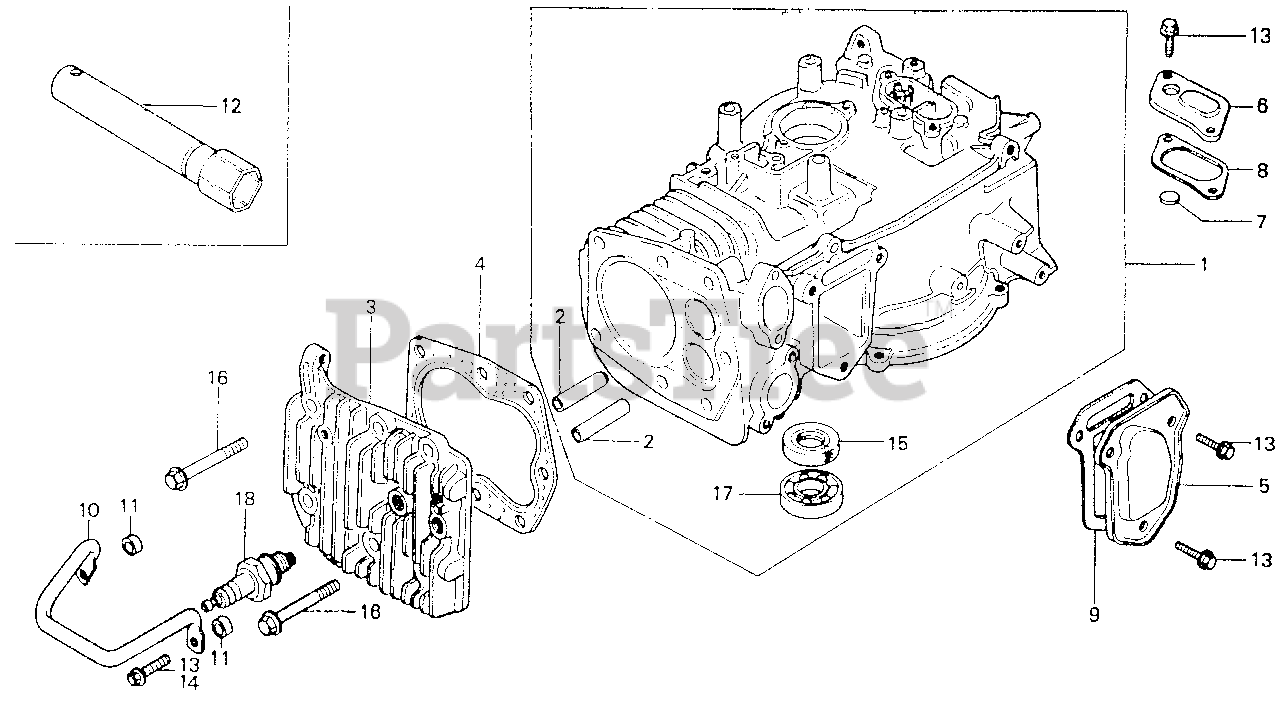

CYLINDER HEAD + CYLINDER Parts Diagram

  • Title

1

Honda 12000-894-305

CYLINDER ASSY.

$

$

Not available

2

Honda 12133-883-306

GUIDE, VALVE (OVER SIZE)

Note: (Optional).

$18.99

$

Usually ships in 3-6 days

0

2

Honda 12134-883-305

GUIDE, VALVE (OVER SIZE)
(Superseded to 12133-883-306)

Note: (Optional).

$18.99

$

Usually ships in 3-6 days

0

3

Honda 12221-894-305

CYLINDER HEAD

$

$

Not available

4

Honda 12281-883-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12281-883-801)

$31.99

$

Usually ships in 3-6 days

0

4

Honda 12281-883-800

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12281-883-801)

$31.99

$

Usually ships in 3-6 days

0

4

Honda 12281-883-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$31.99

$

Usually ships in 3-6 days

0

5

Honda 12361-894-000

COVER, TAPPET

$18.99

$

Usually ships in 3-6 days

0

6

Honda 12370-888-000

CAP, BREATHER CHAMBER

$14.99

$

Usually ships in 3-6 days

0

7

Honda 12372-879-000

VALVE, BREATHER

$2.99

$

In Stock, only 2 left!

0

8

Honda 12373-888-000

GASKET, BREATHER CAP

$3.49

$

In Stock, only 1 left!

0

9

Honda 12375-883-000

GASKET, TAPPET COVER

$4.49

$

In Stock, only 2 left!

0

10

Honda 19671-888-811

GUARD, PLUG

$38.99

$

Usually ships in 3-6 days

0

11

Honda 75133-960-000

COLLAR, ROTO-STOP

$

$

Not available

12

Honda 89216-888-000

WRENCH, SPARK PLUG (NOT AVAILABLE)

$

$

Not available

13

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

14

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 2 left!

0

15

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6)

$9.49

$

In Stock, Qty 11

0

15

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6)
(Superseded to 91201-Z0T-801)

$9.49

$

In Stock, Qty 11

0

16

Honda 95700-08045-08

BOLT, FLANGE (8X45)
(Superseded to 95701-08045-08)

$2.99

$

In Stock, Qty 8

0

16

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$2.99

$

In Stock, Qty 8

0

17

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205)

$25.99

$

In Stock, only 1 left!

0

18

Honda 98073-56744

SPARK PLUG (BMR6A) (NGK)

$3.99

$

In Stock, Qty 11

0

18

Honda 98073-56754

SPARK PLUG (W20MR-U) (DENSO) (NA USE ALT:98073-56744)

Note: (Optional).

$

$

Currently unavailable
