HR21-5 SDA (HR21-5) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-5-1019070 - HR21-5-9999999) CARBURETOR Parts Diagram

21" Walk-Behind Mower, Made in Japan

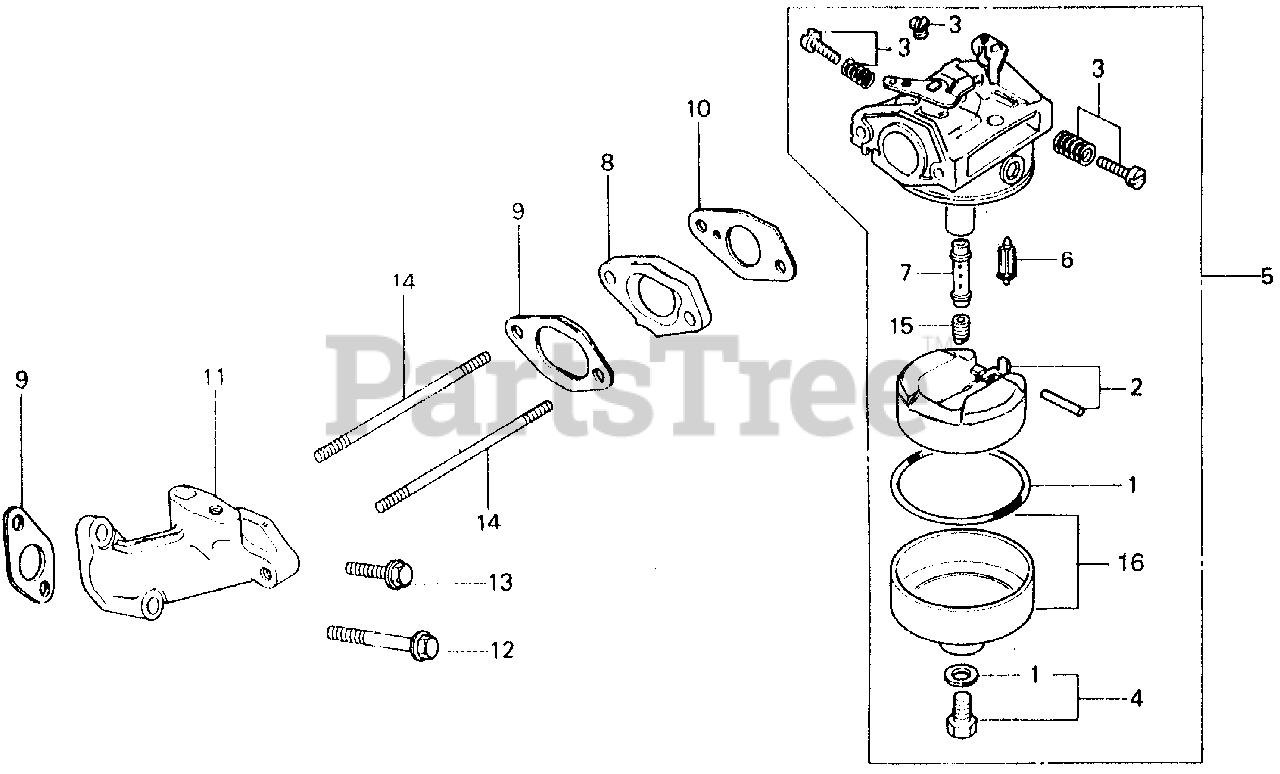

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

Note: Use up to Engine SN BB31A B.

$12.99

$

In Stock, only 2 left!

0

1

Honda 16010-883-015

GASKET SET

Note: Use from Engine SN BB31A C.

$12.99

$

In Stock, only 2 left!

0

2

Honda 16013-883-005

FLOAT SET

$38.99

$

Usually ships in 3-6 days

0

3

Honda 16016-888-005

SCREW SET A

Note: Use up to Engine SN BB31A B.

$19.99

$

Usually ships in 3-6 days

0

3

Honda 16016-894-005

SCREW SET A (NOT AVAILABLE)

Note: Use from Engine SN BB31A C.

$

$

Currently unavailable

4

Honda 16028-883-005

SCREW SET B

Note: Use up to Engine SN BB27A C.

$

$

Not available

4

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

Note: Use from Engine SN BB27A D.

$13.99

$

In Stock, only 1 left!

0

4

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

Note: Use from Engine SN BB27A D.

$13.99

$

In Stock, only 1 left!

0

5

Honda 16100-894-025

CARBURETOR ASSY. (BB31A B) (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16100-894-035

CARBURETOR ASSY. (BB31A C)

$

$

Not available

6

Honda 16155-883-005

VALVE, FLOAT

$26.99

$

Usually ships in 3-6 days

0

7

Honda 16166-894-005

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16211-883-000

INSULATOR, CARBURETOR

$16.99

$

Usually ships in 3-6 days

0

9

Honda 16212-883-800

GASKET, INSULATOR

$2.49

$

In Stock, Qty 6

0

10

Honda 16221-883-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-887-800)

$3.49

$

In Stock, Qty 20+

0

10

Honda 16221-887-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$3.49

$

In Stock, Qty 20+

0

11

Honda 16224-894-315

MANIFOLD, IN. (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 90014-888-000

BOLT, FLANGE (6X50)

$5.49

$

Usually ships in 3-6 days

0

13

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 2 left!

0

14

Honda 90043-888-010

BOLT, STUD (6X141) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 99101-124-0700

JET, MAIN (#70)

Note: (Optional).

$11.99

$

In Stock, only 1 left!

0

15

Honda 99101-124-0720

JET, MAIN (#72)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

15

Honda 99101-124-0750

JET, MAIN (#75)

$11.99

$

Usually ships in 3-6 days

0

16

Honda 16015-891-003

CHAMBER SET, FLOAT

Note: Use from Engine SN BB31A C.

$

$

Currently unavailable

16

Honda 16015-896-701

CHAMBER SET, FLOAT (NOT AVAILABLE)

Note: Use up to Engine SN BB31A B.

$

$

Currently unavailable
