HR21-5 SDA (HR21-5) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-5-1019070 - HR21-5-9999999) 21-5S OIL PAN Parts Diagram

21" Walk-Behind Mower, Made in Japan

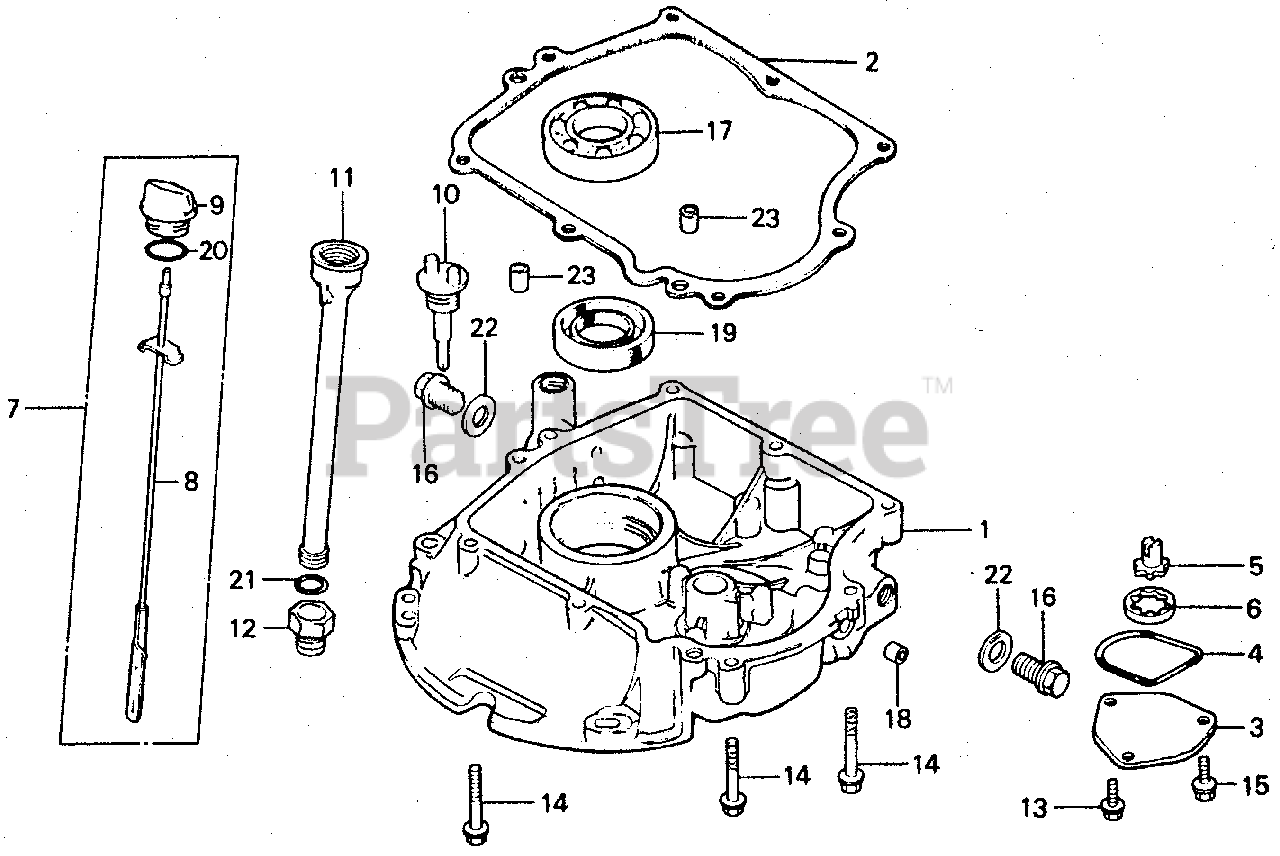

21-5S OIL PAN Parts Diagram

  • Title

1

Honda 11310-894-305

PAN, OIL

$

$

Not available

2

Honda 11381-894-000

GASKET, OIL PAN (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 15130-888-010

COVER, OIL PUMP

$10.99

$

Usually ships in 3-6 days

0

4

Honda 15131-888-010

O-RING, PUMP COVER (NOT AVAILABLE)

$4.49

$

Usually ships in 3-6 days

0

5

Honda 15330-888-000

ROTOR (INNER) (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 15332-115-000

ROTOR, OIL PUMP (OUTER)

$

$

Not available

7

Honda 15600-ZE3-900

GAUGE ASSY., LEVEL

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

7

Honda 15600-894-680

GAUGE ASSY., OIL LEVEL

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

8

Honda 15610-894-680

DIPSTICK, OIL

Note: (Optional).

$

$

Not available

9

Honda 15611-921-000

CAP, OIL (YELLOW)

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

10

Honda 15620-888-010

CAP, OIL FILLER (NOT AVAILABLE)

$

$

Not available

11

Honda 15630-894-680

PIPE, OIL FILLER

Note: (Optional).

$43.99

$

Usually ships in 3-6 days

0

12

Honda 15631-894-680

BOLT, JOINT (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

13

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 19

0

14

Honda 90017-883-000

BOLT, FLANGE (6X32) (CT200)

$3.49

$

In Stock, only 1 left!

0

15

Honda 90029-888-000

BOLT, FLANGE (6X16) (CT200)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12X15)

$4.99

$

In Stock, only 2 left!

0

17

Honda 91001-894-004

BEARING, RADIAL BALL

$22.99

$

Usually ships in 3-6 days

0

18

Honda 91231-891-003

OIL SEAL (6X11X4) (ARAI)

$2.99

$

In Stock, only 1 left!

0

19

Honda 91252-894-004

OIL SEAL (25.4X40X7)

$13.99

$

In Stock, only 1 left!

0

20

Honda 91301-805-000

O-RING (26X2.7)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

21

Honda 91301-MY9-003

SEE PART DETAILS - PRI; O-RING (15X2.5)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

22

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, only 4 left!

0

23

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 10

0
